IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!

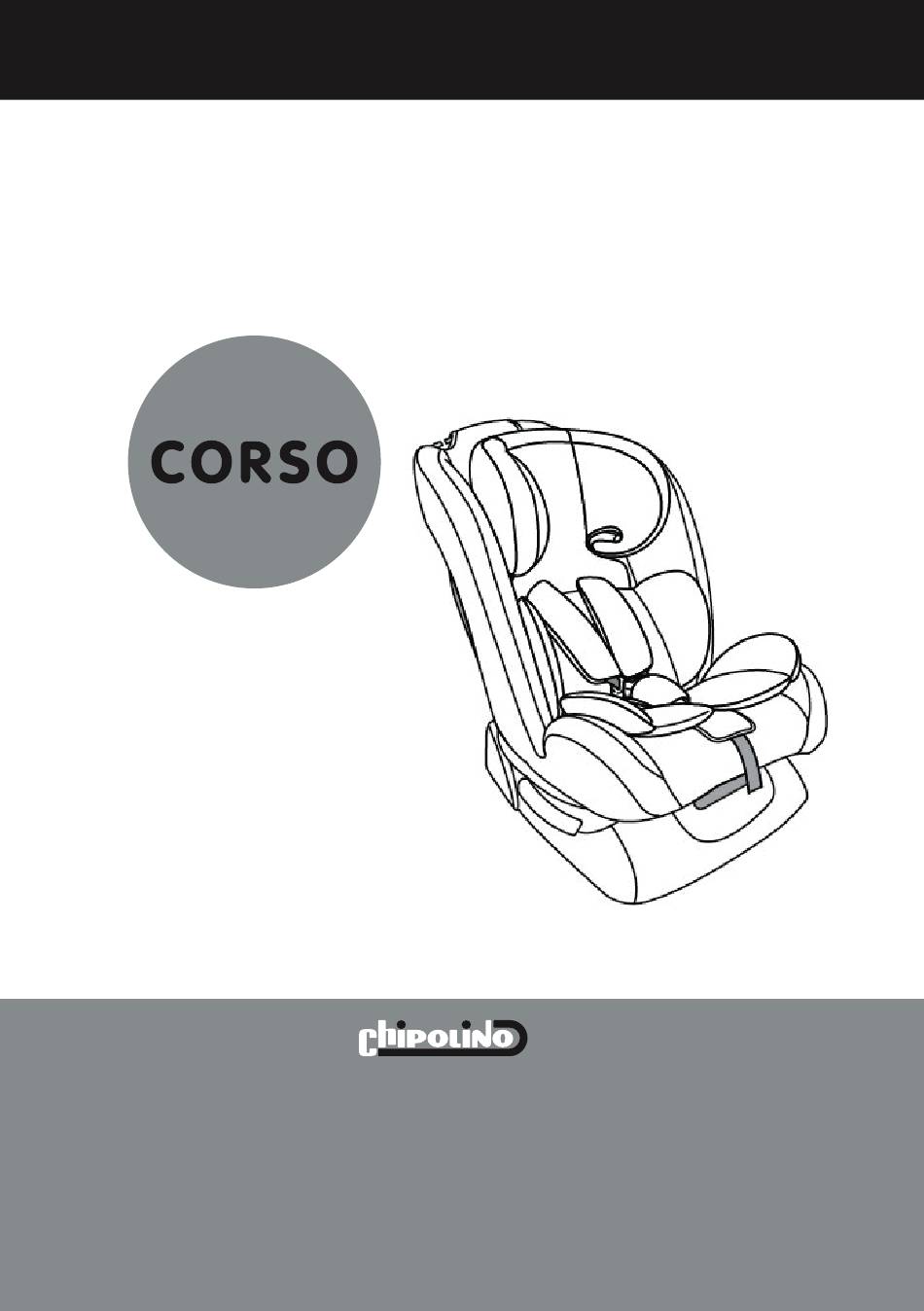

INSTRUCTION MANUAL FOR USE OF
CHILD RESTRAINT SYSTEM
MODEL „CORSO"
This child restraint system
is designed and manufactured
in compliance with the requirements of Regulation No 44 of the United
Nations
Economic
Commission
for
Europe
concerning
the
safe
transportation of children, the provisions of the Product Safety Directive
2001/95/ЕU of the European Parliament and The Council and Directive
91/671/EEC "Compulsory use of seat belts and child restraints systems for
child occupants of power-driven vehicles" of the European Parliament and
The Council.
Advertisement
Related Manuals for Chipolino CORSO
Summary of Contents for Chipolino CORSO
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM MODEL „CORSO” This child restraint system is designed and manufactured in compliance with the requirements of Regulation No 44 of the United Nations Economic Commission...
- Page 2 NOTICE GROUPS 0+, I, II and III 1. This is a “UNIVERSAL” CHILD RESTRAINT. It is approved (№E8*44R04/16*11712*00) under Regulation No 44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats. 2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a “universal” child restraint for these age groups. 3. This child restraint has been classified as “universal” under more stringent conditions than those which applied to earlier designs which do not carry this notice. 4. If in doubt, consult either the child restraint manufacturer or the retailer. DO NOT FORGET THAT NO RESTRAINT SYSTEM CAN PROVIDE ABSO- LUTE PROTECTION IN CASE OF A CRASH OR A ROAD ACCIDENT! DRIVE WITH CARE WHEN THERE IS A CHILD IN YOU VEHICLE! IN ORDER TO ENSURE THE SAFETY OF YOUR CHILD FOLLOW EXACTLY THE INSTRUCTIONS AND SAFETY RECOMMENDATIONS IN THIS MANUAL!
- Page 3 It is not allowed to install the car seat on the places marked with this sign. Only suitable if the approved vehicles are fitted with lap/3 point/static/with retractor safety-belts, approved to UN/ECE Regulation no. 16. DO NOT USE THIS CHILD SEAT IN A “REARWARD FACING POSITION”IN PASSENGER SEATS EQUIPPED WITH ACTIVE AIRBAGS. Safe places for installation of car seat. CAUTION! NEVER LEAVE THE CHILD UNATTENDED! CAUTION! DO NOT USE ANY LOAD BEARING CONTACT POINTS OTHER THAN THOSE DE SCRIBED IN THE INSTRUCTIONS AND MARKED IN THE CHILD RESTRAINT! CAUTION! THE CAR SEAT SAFETY HARNESS AND THE VEHICLE SAFETY-BELTS MUST BE PROPERLY ADJUSTED ACCORDING TO THE CHILD’S HEIGHT, NOT TWISTED AND SNUG WELL AGAINST THE CHILD’S BODY! CAUTION! DO NOT MAKE ANY ALTERATIONS OR ADDITIONS TO THE DEVICE WITHOUT THE APPROVAL OF THE TYPE APPROVAL AUTHORITY! ...
-
Page 4: Product Features
The car seat should be kept away from sunlight to prevent the child from burning and any deformation of the seat, especially of the plastic parts. The car seat does not replace the child’s cot or bed. When a child needs a sleep, you have to place him in a suitable baby stroller, baby crib or bed. Do not attach additional cords and strings on the car seat to avoid the risk of suffocation! Never place the child seat on beds, couches or similar soft surfaces! Do not allow children to play with the product! Keep the plastic bag away from babies and children to avoid danger of suffocation! PRODUCT FEATURES A Child Restraint System designed for children weighing from 0 to 36 kg, mass groups 0+ (0-13 kg), I (9-18 kg), II (15-25 kg) and... - Page 5 A – Headrest J – Belts length adjustment strap B – Backrest K – Car seat base C – Soft shoulder pads L – Diagonal belt guide for group D – Soft seat liner M – Vehicle belt opening Note: Remove the soft liner when the child reaches 1,5 years old. E – Shoulder belts N – Shoulder belts openings F – Central buckle O – Metal buckle G – Soft crotch belt pad P – Headrest height adjustment button H – Belts length adjustment button Q – Clip for fixing the belt for groups 0+ and I I – Backrest recline lever R – Button for headrest height adjustment IMPORTANT! • Follow exactly the instructions and the sequence for installing and using the product from the text and illustrations enclosed in the manual.
- Page 6 GROUP 0+ (0-13 kg) INSTALLATION OF CAR SEAT AND SECURING THE CHILD Car seat position „REARWARD” FACING 6 – Pull the recline lever (I) and set the car seat in position 4. Note: The seat must be as reclined as possible when car seat is in position „REARWARD” FACING. 7 – Place the car seat in position „REARWARD” FACING. 8 – Thread the lap belt under the soft liner in car seat (D). 9 – At the same time thread the diagonal belt through the guide (L) and back part of the seat. 10 – Fasten the vehicle belt in the vehicle belt buckle. Note: Make sure the belts are not twisted. 11 – Tighten the belt. 12 – Place the clip (Q) on the diagonal belt. Note: Make sure that the clip (Q) is as close as possible to the buckle and is not in touch with it. 13 – Loosening the belts: Press the button I and at the same time pull the shoulder straps E. 14 – Press the central buckle button and split the belts. 15 – Place the child in the car seat and the shoulder belts on his shoulders. 16 – Join the metal ends of the shoulder belts and insert them in the central buckle.
- Page 7 GROUP II (15-25kg) and GROUP III (22-36 kg) INSTALLATION OF CAR SEAT AND SECURING THE CHILD IMPORTANT! When using the car seat for children with weight 15-36 kg (groups II and III) remove the safety 5-point harness. Removing the safety belts. Release the belts (see fig.23).
- Page 8 click...
-
Page 10: Cleaning And Maintenance Instructions
diagonal belt guide CLEANING AND MAINTENANCE INSTRUCTIONS Clean the fabrics, plastic parts and metal parts with a damp cotton cloth or a sponge and a mild soap. The soft pads may be hand washed at 30 C using a mild detergent! Do not bleach! Do not tumble dry! Do not dry in a machine! Do not iron! Do not use abrasive, bleach or other aggressive detergents. Always after cleaning leave the car seat fully dry and after that use it or store it. The harnesses must be cleaned with a damp cloth and a mild soap! Do not wet or remove the stickers! They contain important information! Always store your car seat indoors – on a dry and a clean place. Do not expose to direct environment influence – sun, rain, moisture and high temperature intervals! Please, contact your authorized dealer for problems connected with the use of repair. - Page 11 Bulgaria, Plovdiv, Str. Golyamokonarsko shosse No 1 www.chipolino.com...
