YEAR
FULL WARRANTY
Installation & Operation Instructions

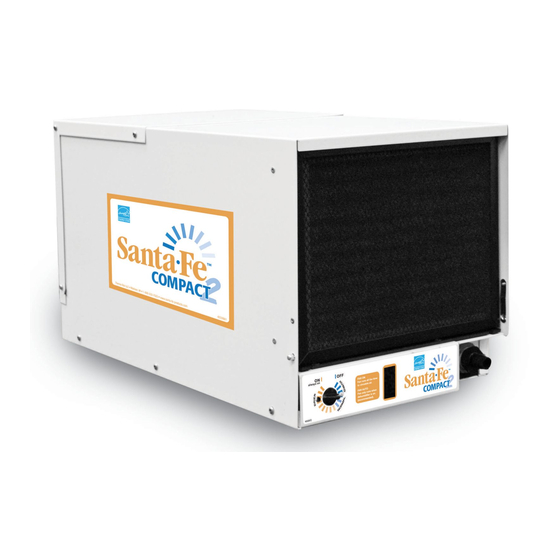

The Santa Fe Compact2 is designed for superior basement and crawl space
dehumidification. Tight spaces are no problem for the Santa Fe Compact2 dehumidifier.
Its compact size works perfect in low crawl spaces and small basements without
sacrificing power and performance. Designed to fit in a variety of small spaces, the
Compact2 provides multiple installation options for greater flexibility.
P/N: 4033600 Serial No.:
Sold by:
www.Santa-Fe-Products.com
Install Date:
1.800.533.7533
Rev 6/6/17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Santa Fe Compact2
Summary of Contents for Santa Fe Compact2
- Page 1 FULL WARRANTY Installation & Operation Instructions The Santa Fe Compact2 is designed for superior basement and crawl space dehumidification. Tight spaces are no problem for the Santa Fe Compact2 dehumidifier. Its compact size works perfect in low crawl spaces and small basements without sacrificing power and performance.
-
Page 2: Table Of Contents
Table of Contents Safety Instructions ................3 Intended Applications ................. 3 Registrations ..................3 Specifications .................. 4 Dehumidifier Set Up ............... 5 Items Included In Box ................5 Important Precautions ................. 5 Location Considerations ..............5 Installing Leveling Feet ................ 5 Ducting to Finished Areas (Optional) .......... -
Page 3: Safety Instructions
• No user serviceable components. Contact installer or call 1-800-533-7533 for all repair or warranty needs. Intended Application(s) The Santa Fe Compact2 is intended for use in crawlspaces or basements: however, the unit can be placed in almost any residential setting where dehumidification is desired. Use in non-residential applications and pool areas may void warranty. -
Page 4: Specifications
8” Flex Duct 25’ 8” 4020177 8” Flex Insulated Duct 25’ 4020175 Remote Dehumidistat FRONT FRONT BACK Santa Fe Compact2 Installation & Operation Instructions www.Santa-Fe-Products.com | 1-800-533-7533 W/ OUT C OLLARS WITH C O LLARS Width: 12" 12" 15 5/8"... -
Page 5: Dehumidifier Set Up
Important Precautions • Do not install the Santa Fe Compact2 with the intake or exhaust of the unit within 1' of a wall or other obstruction. Avoid directing the discharge air at people. The dehumidifier should be used in the upright position. -
Page 6: Ducting To Finished Areas (Optional)
8" Supply Air Outlet 8" Supply Air Outlet 8" Supply Air Outlet Front View Rear View Front View Rear View Front View Rear View Front View Rear View Top View Top View Santa Fe Compact2 Installation & Operation Instructions www.Santa-Fe-Products.com | 1-800-533-7533... -
Page 7: Recommended Installations
Dehumidistat (mounts on Duct Work opposite wall in finished area) • Place the Santa Fe Compact2 in the unfinished area of the basement, near a drain access (condensate will drain • Place the Santa Fe Compact 2 in the unfinished area of via gravity or with an optional pump kit). -
Page 8: Drain Installation
1" per 10'. An optional condensate pump kit is available for use with the Santa Fe Compact2 and may be installed if lift is required to dispose of condensate. Condensate is automatically pumped to a remote location when the water level in the pump’s reservoir rises to close the float switch. -
Page 9: Operation
This function is desirable if the unit is used for air circulation or filtration. Turning the fan switch to “FAN AUTO” will cause the unit’s internal blower to run only while the unit is dehumidifying. 1-800-533-7533 | www.Santa-Fe-Products.com Santa Fe Compact2 Installation & Operation Instructions... -
Page 10: Air Filtration
Air Filtration The Santa Fe Compact2 is equipped with a pre-filter and a MERV-8 air filter. An optional MERV-11 filter is available at www.Santa-Fe-Filters.com.The filters should be checked and replaced every three to six months. Operating the unit with a dirty filter will reduce dehumidifier capacity and efficiency. -
Page 11: Merv Rating Chart
Washable - Aluminum Mesh. <20% 70-75% Dust Mites Residential Sanding Dust <20% 65-70% Spray Paint Dust Electrostatic - Self charging Textile Fibers Window A/C Units woven panel filter. <20% <65% Carpet Fibers http://www.mechreps.com/PDF/Merv_Rating_Chart.pdf 1-800-533-7533 | www.Santa-Fe-Products.com Santa Fe Compact2 Installation & Operation Instructions... -
Page 12: Electrical Requirements
Electrical Requirements The Santa Fe Compact2 plugs into a common grounded 115VAC outlet. The device draws 5.1 Amps at 80°F and 60% RH. Locate the dehumidifier in an area where the cord’s length (9') easily reaches a 115 VAC electrical outlet with a minimum of 15 Amp circuit capacity. -
Page 13: Service
Service WARNING! SERVICING THE SANTA FE COMPACT2, WITH ITS HIGH PRESSURE REFRIGERANT SYSTEM AND HIGH VOLTAGE CIRCUITRY PRESENTS A HEALTH HAZARD WHICH COULD RESULT IN DEATH, SERIOUS BODILY INJURY, AND/OR PROPERTY DAMAGE. ONLY QUALIFIED SERVICE PEOPLE SHOULD SERVICE THIS UNIT. - Page 14 7. Collecting the water removed in a 24 hour period will give a measurement of performance. Santa Fe Compact2 Installation & Operation Instructions www.Santa-Fe-Products.com | 1-800-533-7533...
-
Page 15: Warranty
Warranty Limited Warranty. Therma-Stor, LLC (“Therma-Stor”) warrants as follows: (i) the Santa Fe Compact2 dehumidifier (“Product”) will be free of material defects in workmanship or materials for a period of 2 years (“Two-Year Warranty”) following the date of initial purchase of such Product by an original customer purchasing from Therma-Stor or an authorized reseller (“Customer”);... - Page 16 www.Santa-Fe-Products.com 1.800.533.7533...
