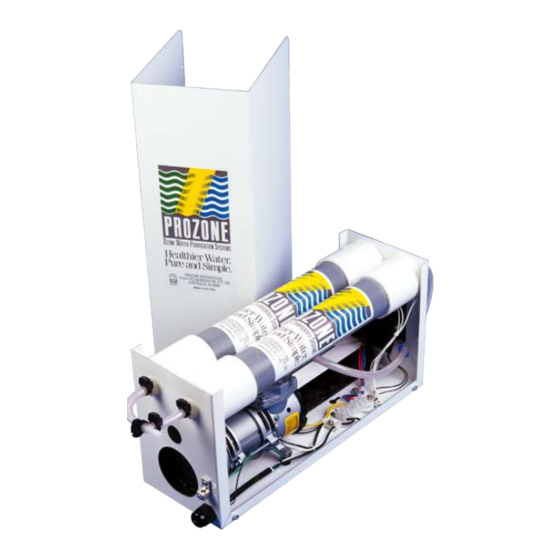

Prozone PZ2-1 Installation Manual And Operation Manual
  1. Manuals
  2. Brands
  3. Prozone Manuals
  4. Industrial Equipment
  5. PZ2-1
  6. Installation manual and operation manual

Prozone PZ2-1 Installation Manual And Operation Manual

Commercial and residential pools & spas ozone generator systems
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
PZ2-1 & PZ2-2 -
Commercial and Residential Pools & Spas
Ozone Generator Systems
Prozone Water Products: 2610 6th Street SW
·
·
Huntsville, AL 35805
256-539-4570
INSTALLATION GUIDE and
OPERATION MANUAL
T . O
NATURAL TECHNOLOGY
3
Reduces Chemical Usage,
Improves Sanitation
Produces Crystal Clear Water
·
www.prozoneint.com
Copyright 2007
20348

Advertisement

loading
Need help?

Need help?

Do you have a question about the PZ2-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Prozone PZ2-1

Summary of Contents for Prozone PZ2-1

  • Page 1 INSTALLATION GUIDE and Ozone Generator Systems OPERATION MANUAL T . O NATURAL TECHNOLOGY Reduces Chemical Usage, Improves Sanitation Produces Crystal Clear Water Copyright 2007 · · · Prozone Water Products: 2610 6th Street SW Huntsville, AL 35805 256-539-4570 www.prozoneint.com 20348...

  • Page 2: Important Safety Instructions

    P Z 2 - 1 & P Z 2 - 2 IMPORTANT SAFETY INSTRUCTIONS Read and Follow All Safety Instructions • Read and be familiar with this manual before installing, operating, or performing maintenance on the PZ2. • Voltage must be determined before unit is installed. •...

  • Page 3: Preparing For Installation

    PREPARING FOR INSTALLATION Install your PZ2-1 or PZ2-2 Ozonator so that dust, sand, debris, chemicals, or other foreign objects are not sucked into the compressor's intake fan or hose (if equipped with Noise Attenuator). Check electrical system: 240VAC double switched per N.E.C. standards; 120VAC single switched.
  • Page 4 17. Slip the M09 Noise Attenuator onto the 1” fitting at the rear of the PZ2 (if equipped) (Installation manual supplied with M09). 18. Electrical Installation: System is either 120 or 240 VAC, 50/60 HZ. Wire Prozone Ozone Generator system to circulation pump switch or timer.
  • Page 5 13. Slip the M09 Noise Attenuator onto the 1” fitting at the rear of the PZ2 (if equipped) (Installation manual supplied for M09). 14. Electrical Installation: System is either 120 or 240 VAC, 50/60 HZ. Wire Prozone Ozone Generator system to circulation pump switch or timer.

  • Page 6: Troubleshooting Guide

    P Z 2 - 1 & P Z 2 - 2 Inventory Lists & Troubleshooting INSTALLATION KIT INVENTORY P20 Installation Kit D03 Installation Kit PZ2-1 & PZ2-2 Series with Bypass / Venturi Injector PZ2-1 & PZ2-2 Series with Direct Injection Description Part Number Quantity...

This manual is also suitable for:

Pz2-2
