Pro
Zone
I n t e l l i g e n t Z o n i n g
Zones
See table below.
Compatible Equipment
All panels operate with gas/electric systems, conventional heat
pumps and dual fuel heat pumps.
Equipment Selection
Selected using the jumper plugs on the panel. See table
below.
Heating and Cooling Stages
See table below.
Compatible Thermostats
When gas/electric equipment is selected, heat/cool thermostats
are used in all zones. When heat pump equipment is selected,
a heat pump or heat/cool thermostat may be used in Zone1
and heat/cool thermostats are used in all other zones.
Compatible Thermostat Types
Single stage, 24VAC powered or battery powered thermostats.
Compatible Dampers
The ProR80J-XX dampers with plug and play cables. Each
damper is supplied with a 25-foot cable.
Dampers per Zone
Multiple dampers may be used to configure a zone. The total
number of dampers that can be used depends on the VA
rating of the 24VAC transformer used. Up to six dampers can
be daisy chained to configure a zone.
Bypass Control
The panel can be used with traditional mechanical barometric
dampers, adjusting the close position limit on each zone
damper or use the non-calling zone dampers for bypass.
Optional Sensors
Discharge air (Model TS2) and outdoor air temperature sensor
(Model TS3) can be used. A pressure sensor (Model PS2) can
be used to monitor duct pressure.
Zones on Panel
Expandable
Heating Stages
Cooling Stages
Compressor Stages
Auxiliary Heating Stages
Warranty
5-year warranty limited to repair or replacement of panel due to
defective material or workmanship.
ProR221J, ProR212J, ProR321J and ProR312J
Model ProR221J
Model ProR212J
Two
No
Two
One
One
One
Installation Guide

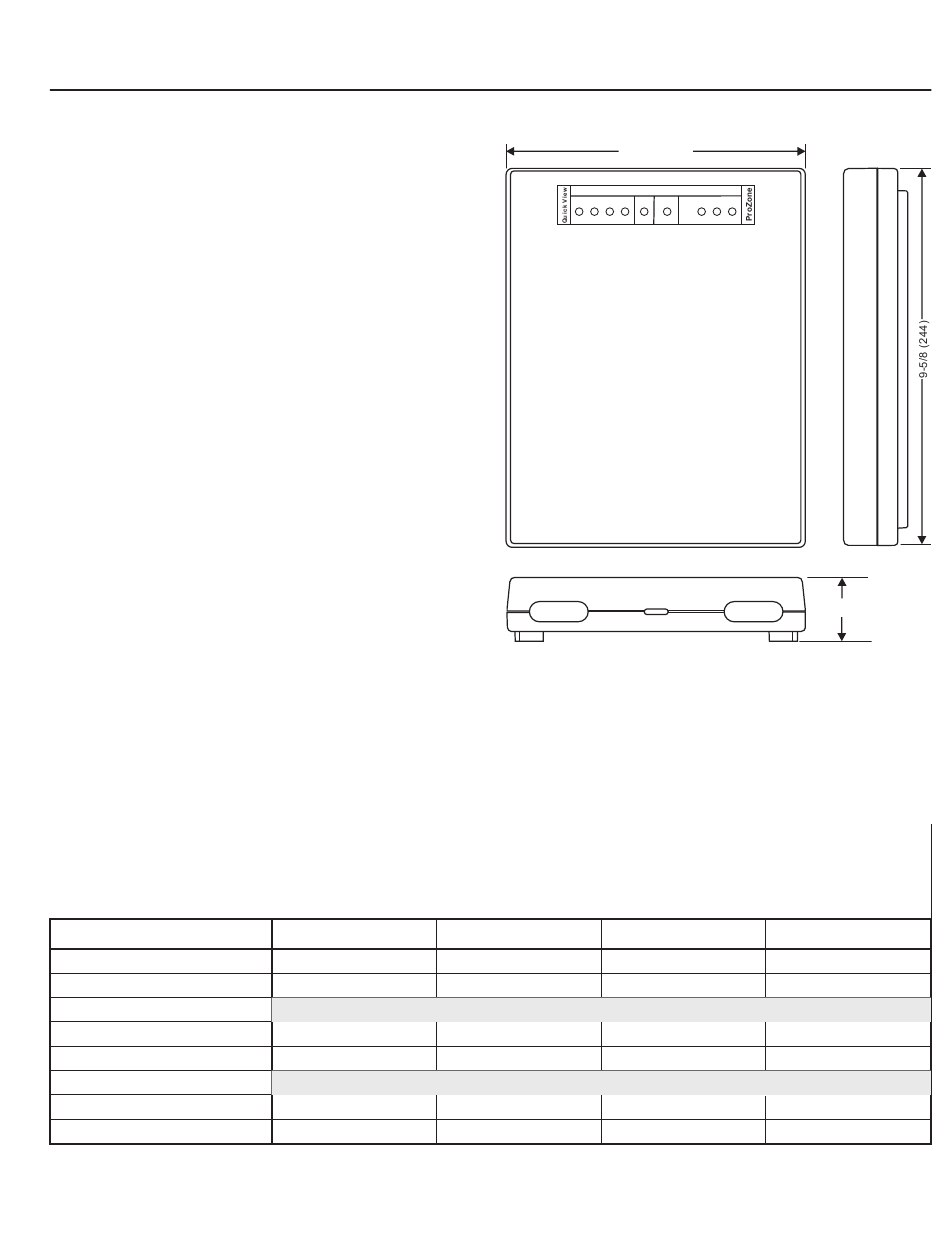

7-5/8 (193)
Zoning Panel
Fresh
PANEL
THERMOSTATS
HVAC
Air
3
2
1
Panel Power
24VAC (18 to 30), 10VA
Wiring
Use 18 or 20 AWG solid thermostat wire.
Humidity Rating
5 to 90% RH non-condensing.
Temperature Ratings
o
Shipping
-20 to 150 F (-29 to 66 C)
o
Operating
0 to 165 F (-32 to 74 C)
Model ProR321J
Two
Three
No
No.
Gas/Electric Equipment
One
Two
Two
One
Heat Pump Equipment
Two
One
None
One
Rev G Aug 2015
ZONE DAMPERS
3
2
1
1-5/8 (41)
o
o
o
o
o
o
Model ProR312J
Three
No.
One
Two
Two
None

Advertisement

loading
Need help?

Need help?

Do you have a question about the ProR221J and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Prozone ProR221J

  • Page 1 Zone Installation Guide I n t e l l i g e n t Z o n i n g ProR221J, ProR212J, ProR321J and ProR312J Rev G Aug 2015 Zones See table below. 7-5/8 (193) Compatible Equipment Zoning Panel All panels operate with gas/electric systems, conventional heat...
  • Page 2 Connectors for plug and Color coded terminals for play dampers. heat/cool thermostat. Use 24VAC powered or battery powered thermostats. Connector for plug and ProZone play damper for fresh air ProR321J 24VAC SENSORS intake and exhaust per ASHRAE 62.2 and Title24 .
  • Page 3 Mounting Panel Selecting Transformer Remove the top cover and attach the panel to a wall close to The VA rating of the transformer depends on the number of the unit using four #8 screws. actuators being used. The table below shows the VA required for each zoning component including the ProR80J dampers.
  • Page 4 Daisy chained dampers Zone 2 or 3 Thermostat when more than one Zoning Panel Heat/Cool damper required to 24VAC configure a zone. Heat Set To Inside ProZone Model A80-MJ Damper Actuator MENU MODE SYSTEM Modulating Position Schedule Auto 24VAC, 2.2VA Heat...
  • Page 5 W1/OB Reversing valve. terminal on the panel. W2/E W2/E Auxiliary Heating/Emergency Heating Stage1 Compressor Model ProR221J or ProR321J Indoor Fan 24VAC Line When using a heat pump thermostat, on the thermostat select O Rev Valve O operation of the reversing valve. If both an O and B terminal...
  • Page 6 Installing the Outdoor Temperature Sensor Plenum The outdoor temperature sensor (TS3) should be placed in a shaded location and protected from rain or snow such as under the eves of a home. Select a location and drill a 5/16-inch diameter hole to pass the sensor wires through. Remove screw (1) and separate the base (5) and the cover (2).
  • Page 7 (3). Use the two screws (4) to attach the pressure sensor Relay base (5) to the duct (7). Using 3-conductor thermostat wire, connect the red, white and green thermostat wires to the terminals. Slide the cover over the base and secure the screw. ProZone ProR321J SENSORS 24VAC EXT PDMi...
  • Page 8: Installer Menu

    Options and Factory Settings, All Zoning Panels Option Selections Factory Settings Equipment Gas/Electric, conventional or dual fuel heat pumps. Gas/Electric Indoor Fan Mode Gas or electric. High DAT Limit 110 to 180 F 160 F Low DAT Limit 37 to 55 F 45 F Em Heat Control Zone1.
  • Page 9 Setting Equipment Options Press Yes to select fresh air control. Change Fresh Air Options Press No to continue. Access the Installer menu and select the menu below. Press Y to set equipment options. The options will be different based on the type of equipment selected.
  • Page 10: Bypass Control

    Important! Press Yes to select dual fuel heat Equipment Type The total of the zone sizes should always equal the total number DFHP pump. If equipment type is incorrect, of zones. press Cancel and see Selecting Equipment on page 3. Change Zone Size Press Yes to change the zone sizes or press NEXT to continue to next menu...
  • Page 11 Bypass Using the Non-Calling Zone Dampers Staging Heating and Cooling Calls The non-calling zone dampers can be opened just enough to Staging is controlled by the number of zones calling for heating or keep the airflow in the calling zones from being too high or noisy. cooling and by a timer that monitors the amount of time a call has The PDMi3 can be used set the bypass position for each zone in been active.
  • Page 12 Staging Based on Call Timer Direct Entry of Minutes per Hour of Fresh Air Staging is controlled by the number of minutes heating or If the contractor has calculated the CFM for fresh air and sized cooling has been calling. The Timer monitors the continuous the damper to operate for a number of minutes each hour, the call time and forces staging when the call time exceeds the minutes can be directly entered.
  • Page 13 Limit Fresh Air Based on Outdoor Temperature Changing Advanced Options Fresh air operation can be disabled if the outdoor temperature Press Yes to select advanced options Change Advanced exceeds the high and low temperature limits. A TS3 outdoor Options such as purge, opposite system service, temperature sensor is required.
  • Page 14: Testing The Installation

    Bypass Testing Press Yes to change the minimum Change Timing Options run and off times or press No to continue. Start Bypass Press Yes to start a bypass test. A Test test will be started based on the type Press Up or Down to set the Min Run Time of bypass being used.
  • Page 15 Monitor HVAC Press Yes to display the leaving air Performance Y/N temperature, duct pressure and the position of the non-calling zone dampers when used for bypass. Press No to continue. LAT 122 Prs 0.55 Displays the leaving air BP Pos 0% NEXT temperature and duct pressure (if sensor installed).
  • Page 16: Limited 5-Year Warranty

    Limited 5-Year Warranty ProZone The 5-year warranty is limited to the repair or replacement of 26072 Merit Circle #110 / Laguna Hills, CA 92653 defective product due to parts failure or defective workmanship. 949-916-0945 Fax 949-458-8502 www.ProZone-US.com...
