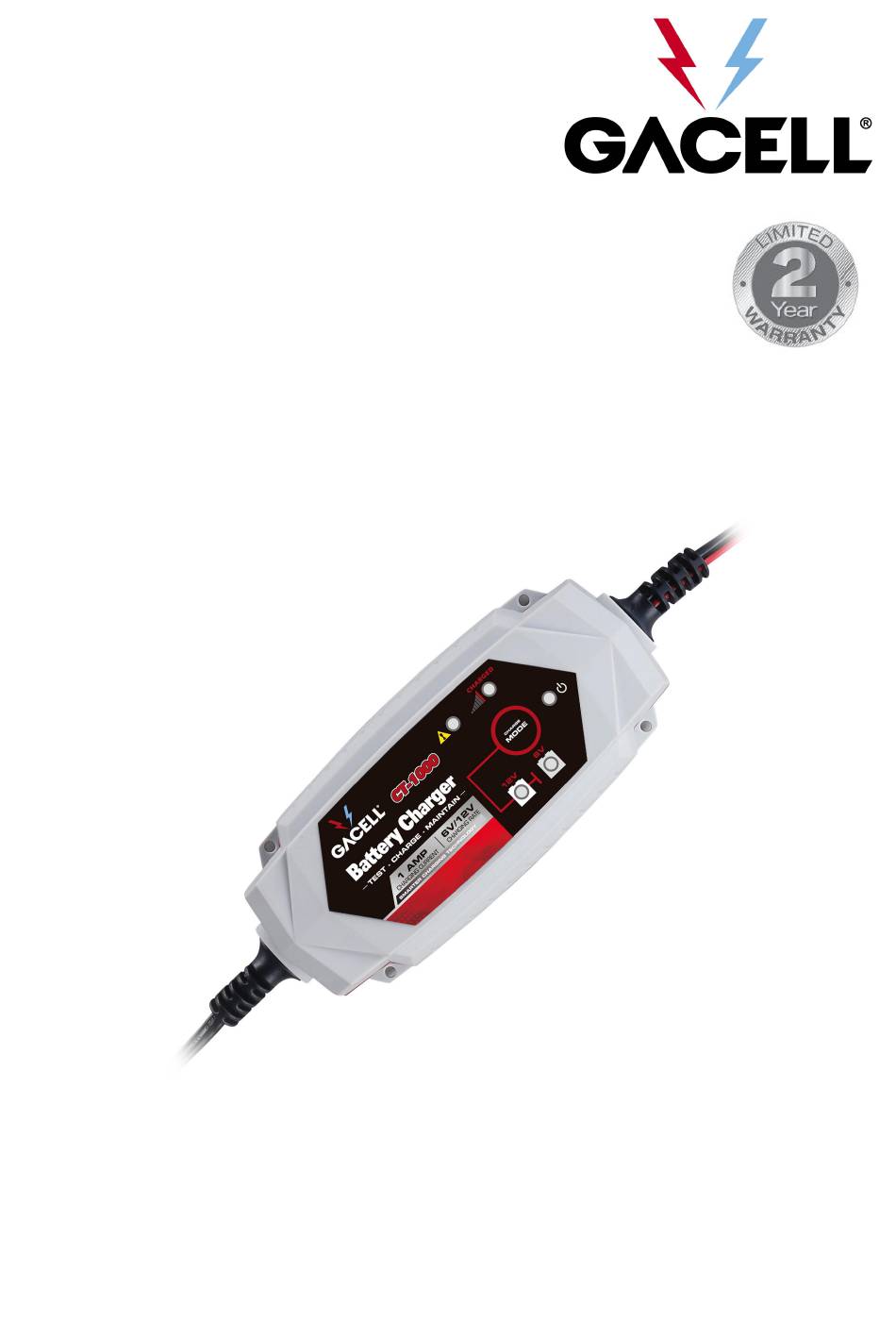

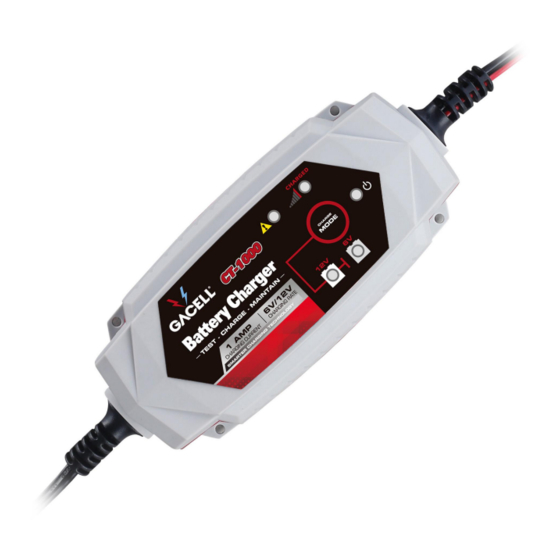

Battery Charger User Guide
MODEL: CT-1000
AC Input: 220-240VAC, 50-60Hz
DC Output: 12VDC,1A;
6VDC, 1A
Please read and understand all important safety and operating
instructions before using this charger. In addition, please read and follow
all battery and vehicle manufacturer's instructions and cautionary
markings.
Advertisement
Table of Contents
Related Manuals for Gacell CT-1000
Summary of Contents for Gacell CT-1000
- Page 1 Battery Charger User Guide MODEL: CT-1000 AC Input: 220-240VAC, 50-60Hz DC Output: 12VDC,1A; 6VDC, 1A Please read and understand all important safety and operating instructions before using this charger. In addition, please read and follow all battery and vehicle manufacturer’s instructions and cautionary...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAFETY PRECAUTIONS FOR WORKING IN THE VICINITY OF A BATTERY 1) Batteries generate explosive gases during normal operation. Use in well-ventilated area. 2) Consider having someone close enough or within the range of your voice to come to your aid when you work near a battery. 3) Do NOT smoke, strike a match, or cause a spark in vicinity of battery or engine. - Page 3 10) Any repair must be carried out by the manufacturer or an authorized repair agent in order to avoid danger. ABOUT CT-1000 1) The CT-1000 is perfect for keeping all of your 12V and 6V lead-acid batteries in top condition, including WET (Flooded), GEL, MF (Maintenance-Free), EFB (Enhanced Flooded Battery) and AGM (Absorbed Glass Mat) batteries.
-
Page 4: Connecting To The Battery
to solid, the battery is fully charged. 6) Since this is a battery maintainer and you will keep it connected with vehicle battery for a long time, do monitor monthly. Follow the battery manufacturer’s instructions for adding distilled water if applicable. 7) Following is the charger’s technical specification: AC Input 220-240VAC, 50-60Hz, 0.5A... -
Page 5: Charging Modes
8) A marine (boat) battery must be removed and charged on shore. To charge it on board requires equipment specially designed for marine use. CHARGING MODES CT-1000 has two modes: 12V and 6V. Do not operate the charger until you confirm the appropriate charge mode for your battery. Mode Explanation... -
Page 6: Charging Time
CHARGING TIME Different battery capacity and residual voltage would affect the charging time. Following data is only for reference (when discharge 12V lead-acid battery to 9V, with 5A discharge current). Approx. Time to Battery Size/Ah Charge in Hours (12V) LED COMMUNICATION OF ABNORMAL RESULTS LIGHT(S) CAUSE(S) SOLUTION(S) - Page 7 6V LED 12V Mode(s) for 6V battery, the 6V battery will be damaged! Only charging mode LED is on, Current reduces when warning and Overheat temperature in charger is Charged protection too high. After cooling indicator LED down, charge will begin are flashing Quick flashing Red Warning!
-
Page 8: Warranty
Nameplate icon description :Class II :For indoor use only :Before charging, read the instructions :Fuse :Correct Disposal of this product This marking indicates that this battery charger and batterypack should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. - Page 9 period. 3) This warranty is void if the product has been damaged by accident, in shipment, unreasonable use, misuse, neglect, improper service, commercial use, repairs by unauthorized personnel or other causes not arising out of defects in materials or workmanship. Important safety instructions 1)This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of...
