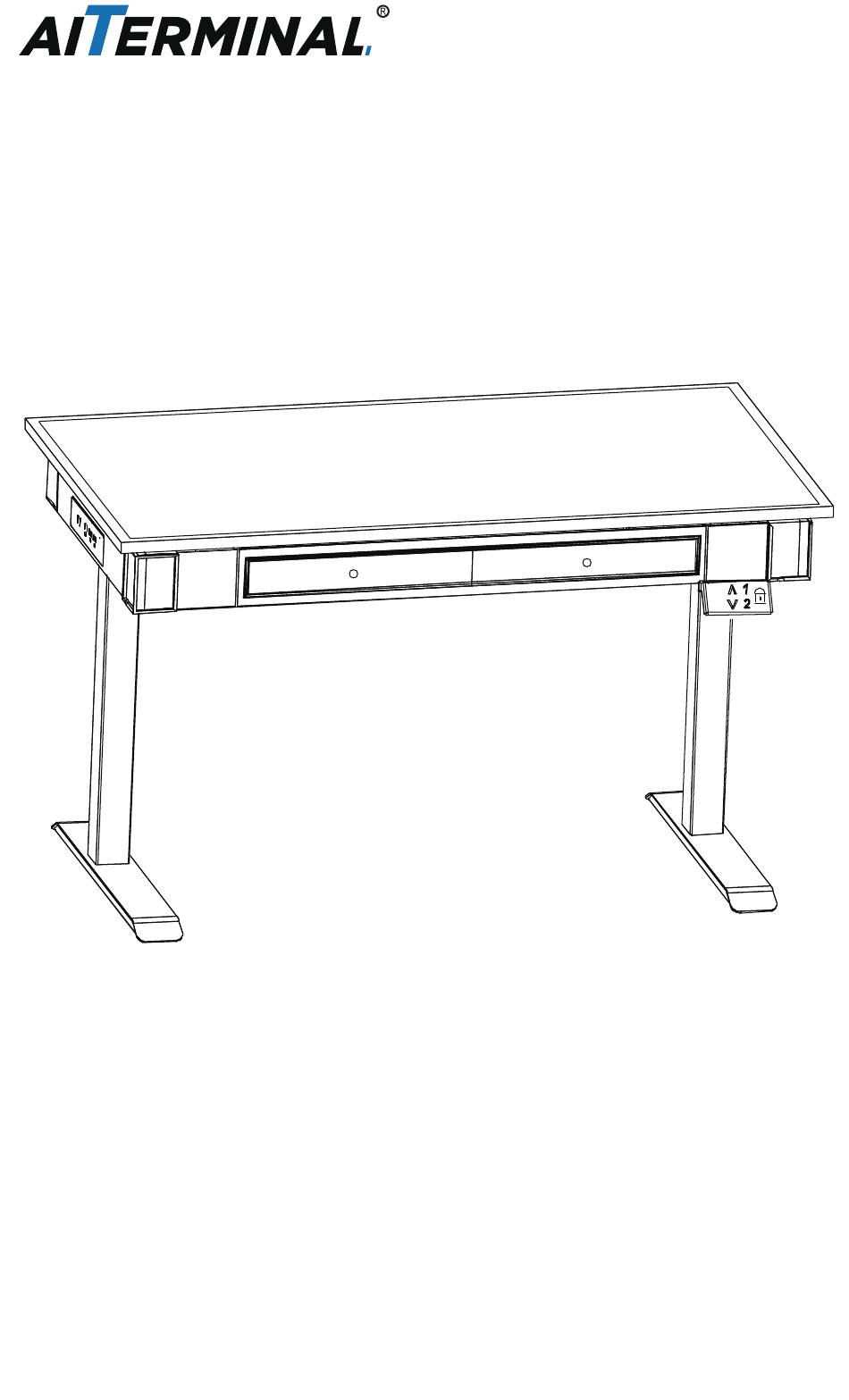

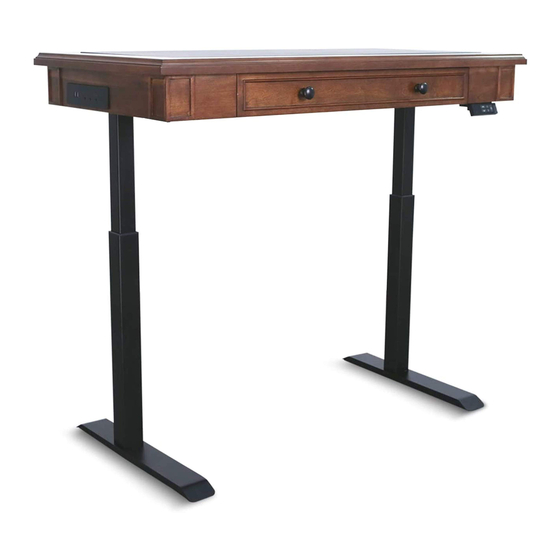

- Page 1 Electric Standing Desk User Manual Model: AIT005B...
- Page 2 TABLE OF CONTENTS Parts and Hardware List Parts Hardware Step 1 Step 2 Step 3 Step 4 Step 5 Operation Guide...
- Page 3 PARTS AND HARDWARE LIST Component Name Table Top Base Foot Pad Foot Margin Left Leg Control Box Driveshaft Bracket Right Leg Key Pad M6*16 Screw M8*10 Screw 5mm Hex Spanner Wrench Cable Tie Gasket 8...
- Page 4 PARTS 1 Table Top Base x1 2 Foot Pad x4 4 Left Leg x1 3 Foot Margin x2 5 Control Box x1 6 Driveshaft x1 7 Bracket x2 8 Right Leg x1 9 Key Pad x1 HARDWARE M6*16 M8*10 Screw x 8 Screw x 12 Hex Spanner x1 Wrench x1...
- Page 5 STEP 1 Put the right leg on the crossbar end using 6 pcs M8*10 screws and tighten them with 5mm hex spanner . Tool Required：C Hardware Required： B Screws M8*10screw 6pcs 5mm Hex Spanner STEP 2 Loosen right nut of driveshaft and insert the rod to the left leg. Pay attention to the insert direction and push the driveshaft all the way in.
- Page 6 STEP 3 Insert the left nut on the right leg and secure the left and right nut with wrench. right nut left nut Tool Required：D STEP 4 Attach foot margins to leg using 8 pcs M6*16 screws and tighten them. Pay attention to keep the foot margin longer side same dire- ction as key pad side.
- Page 7 STEP 5 Connect the control box to the key pad and the legs.
- Page 8 Operation Guide Activating & Troubleshooting You will need to activate the memory keypad once the desk is fully assembled, Side note : if the frame doesn’t seem to be working properly, rest assured that most issues can be fixed using the exact same activation process. 1.If the handset locked, first step is unlock.
