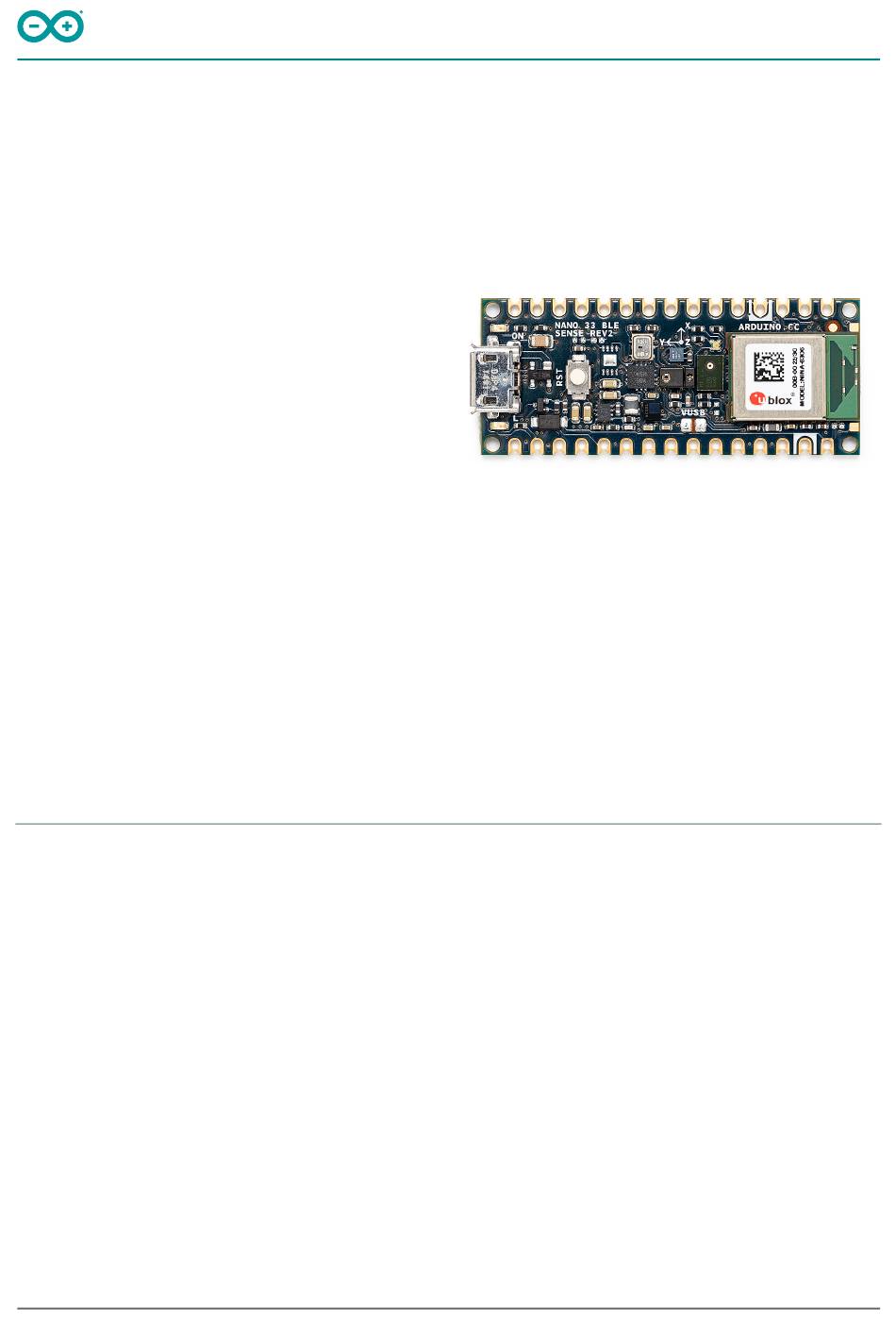

Arduino® Nano 33 BLE Sense Rev2
Product Reference Manual
SKU: ABX00069
Description

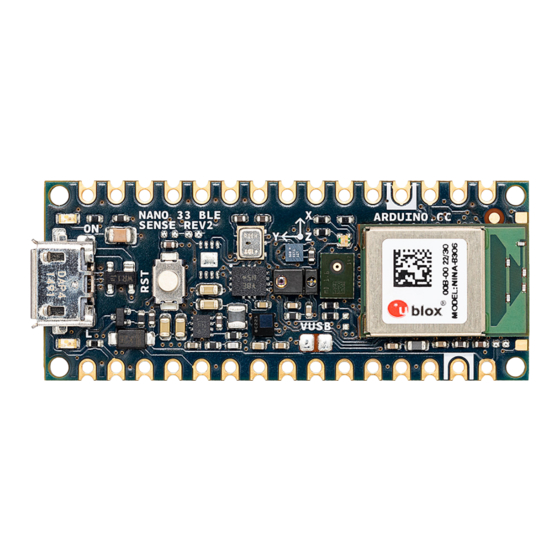

The Arduino Nano 33 BLE Sense Rev2 is a miniature sized module containing a NINA B306 module, based on
Nordic nRF52480 and containing a Cortex M4F. The BMI270 and BMM150 jointly provide a 9 axis IMU. The module
can either be mounted as a DIP component (when mounting pin headers), or as a SMT component, directly
soldering it via the castellated pads.
Target Areas
Maker, enhancements, IoT application
1 / 19
Arduino® Nano 33 BLE Sense Rev2
Modified: 12/01/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nano 33 BLE Sense Rev2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arduino Nano 33 BLE Sense Rev2

Summary of Contents for Arduino Nano 33 BLE Sense Rev2

  • Page 1 SKU: ABX00069 Description The Arduino Nano 33 BLE Sense Rev2 is a miniature sized module containing a NINA B306 module, based on Nordic nRF52480 and containing a Cortex M4F. The BMI270 and BMM150 jointly provide a 9 axis IMU. The module can either be mounted as a DIP component (when mounting pin headers), or as a SMT component, directly soldering it via the castellated pads.
  • Page 2 Arduino® Nano 33 BLE Sense Rev2 Features NINA B306 Module Processor 64 MHz Arm® Cortex®-M4F (with FPU) 1 MB Flash + 256 KB RAM Bluetooth® 5 multiprotocol radio 2 Mbps CSA #2 Advertising Extensions Long Range +8 dBm TX power -95 dBm sensitivity 4.8 mA in TX (0 dBm)
  • Page 3 Arduino® Nano 33 BLE Sense Rev2 LPS22HB (Barometer and temperature sensor) 260 to 1260 hPa absolute pressure range with 24 bit precision High overpressure capability: 20x full-scale Embedded temperature compensation 16-bit temperature data output 1 Hz to 75 Hz output data rateInterrupt functions: Data Ready, FIFO flags, pressure thresholds HS3003 Temperature &...

  • Page 4: Table Of Contents

    Arduino® Nano 33 BLE Sense Rev2 Contents 1 The Board 1.1 Ratings 1.1.1 Recommended Operating Conditions 1.2 Power Consumption 2 Functional Overview 2.1 Board Topology 2.2 Processor 2.3 IMU 2.4 LPS22HB (U9) Barometer and Temperature Sensor 2.5 HS3003 (U8) Relative Humidity and Temperature Sensor 2.5.1 Gesture Detection...
  • Page 5 Arduino® Nano 33 BLE Sense Rev2 9 Reference Documentation 10 Revision History 5 / 19 Arduino® Nano 33 BLE Sense Rev2 Modified: 12/01/2023...

  • Page 6: The Board

    Arduino® Nano 33 BLE Sense Rev2 1 The Board As all Nano form factor boards, Nano 33 BLE Sense Rev2 does not have a battery charger but can be powered through USB or headers. NOTE: Arduino Nano 33 BLE Sense Rev2 only supports 3.3V I/Os and is NOT 5V tolerant so please make sure you are not directly connecting 5V signals to this board or it will be damaged.

  • Page 7: Functional Overview

    Arduino® Nano 33 BLE Sense Rev2 2 Functional Overview 2.1 Board Topology Top: Board topology top Ref. Description Ref. Description NINA-B306 Module Bluetooth® Low Energy 5.0 Module MP2322GQH Step Down Converter BMI270 Sensor IMU IT-1185AP1C-160G-GTR Push button MP34DT06JTR MEMS Microphone...

  • Page 8: Processor

    I C peripherals (IMU and Crypto). NOTE: As opposed to other Arduino Nano boards, pins A4 and A5 have an internal pull up and default to be used as an I C Bus so usage as analog inputs is not recommended.

  • Page 9: Lps22Hb (U9) Barometer And Temperature Sensor

    Arduino® Nano 33 BLE Sense Rev2 2.4 LPS22HB (U9) Barometer and Temperature Sensor The LPS22HB pressure sensor IC (U9) includes both a piezoresistive absolute pressure sensor together with a temperature sensor integrated into a small chip. The pressure sensor (U9) interfaces with the main microcontroller (U1) via an I2C interface.

  • Page 10: Color And Als Detection

    Arduino® Nano 33 BLE Sense Rev2 2.5.3 Color and ALS Detection The Color and ALS detection feature provides red, green, blue and clear light intensity data. Each of the R, G, B, C channels have a UV and IR blocking filter and a dedicated data converter producing16-bit data simultaneously. This architecture allows applications to accurately measure ambient light and sense color which enables devices to calculate color temperature and control display backlight.
  • Page 11 Arduino® Nano 33 BLE Sense Rev2 Power tree NOTE: Since V feeds V via a Schottky diode and a DC-DC regulator specified minimum input voltage is 4.5V the minimum supply voltage from USB has to be increased to a voltage in the range between 4.8V to 4.96V depending on the current being drawn.

  • Page 12: Board Operation

    3.1 Getting Started - IDE If you want to program your Arduino Nano 33 BLE Sense Rev2 while offline you need to install the Arduino Desktop IDE [1] To connect the Arduino Nano 33 BLE Sense Rev2 to your computer, you’ll need a Micro-B USB cable. This also provides power to the board, as indicated by the LED.

  • Page 13: Board Recovery

    3.6 Board Recovery All Arduino boards have a built-in bootloader which allows flashing the board via USB. In case a sketch locks up the processor and the board is not reachable anymore via USB it is possible to enter bootloader mode by double- tapping the reset button right after power up.

  • Page 14: Usb

    Arduino® Nano 33 BLE Sense Rev2 4.1 USB Pin Function Type Description Power Supply Input. If board is powered via VUSB from header this is an Output VUSB Power Differential USB differential data - Differential USB differential data + Analog...

  • Page 15: Debug

    Arduino® Nano 33 BLE Sense Rev2 Pin Function Type Description D12/MISO Digital SPI MISO; can be used as GPIO 4.3 Debug On the bottom side of the board, under the communication module, debug signals are arranged as 3x2 test pads with 100 mil pitch with pin 4 removed.

  • Page 16: Certifications

    6.2 Declaration of Conformity to EU RoHS & REACH 211 01/19/2021 Arduino boards are in compliance with RoHS 2 Directive 2011/65/EU of the European Parliament and RoHS 3 Directive 2015/863/EU of the Council of 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

  • Page 17: Conflict Minerals Declaration

    Arduino® Nano 33 BLE Sense Rev2 6.3 Conflict Minerals Declaration As a global supplier of electronic and electrical components, Arduino is aware of our obligations with regards to laws and regulations regarding Conflict Minerals, specifically the Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502.

  • Page 18: Company Information

    Important: The operating temperature of the EUT can’t exceed 85℃ and shouldn’t be lower than -40℃. Hereby, Arduino S.r.l. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states.
  • Page 19 Arduino® Nano 33 BLE Sense Rev2 10 Revision History Date Revision Changes Updated to account for Rev2 changes: LSM9DS1 -> BMI270+Bmm150, HTS221 -> 10/11/2022 3 HS3003, MPM3610 -> MP2322, PCB modification 08/03/2022 2 Reference documentation links updates 04/27/2021 1 General datasheet updates 19 / 19 Arduino®...
