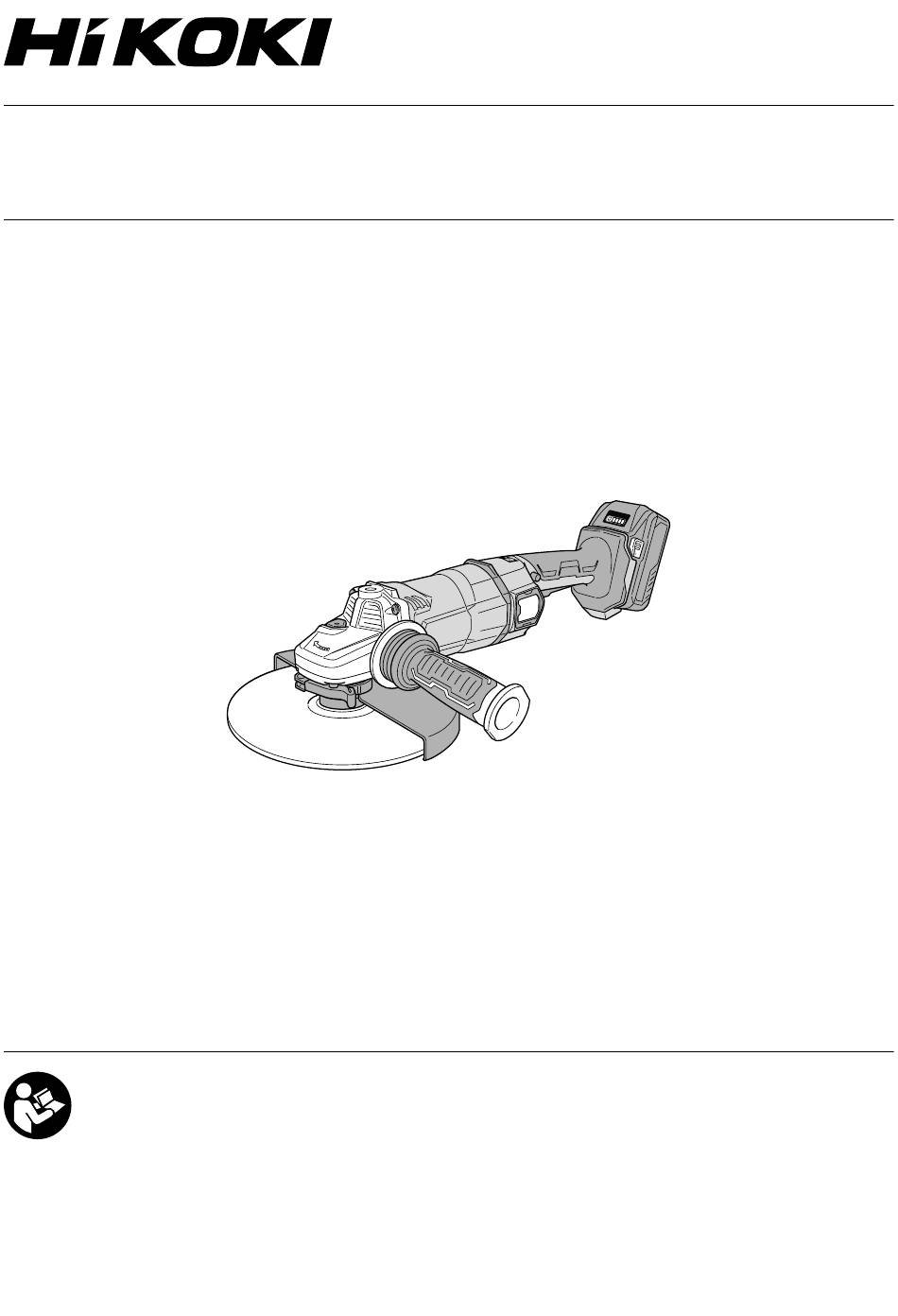

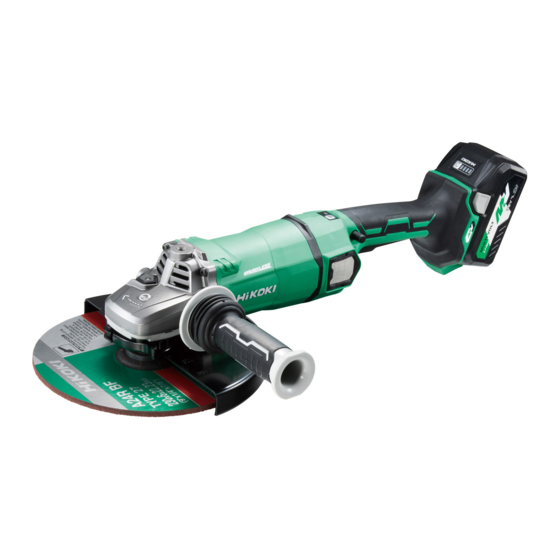

  • Page 1 G 3623DA Handling instructions...
  • Page 2 &...
  • Page 4 Lock 15° – 30°...
  • Page 6 c) Prevent unintentional starting. Ensure the GENERAL POWER TOOL SAFETY switch is in the off position before connecting to WARNINGS power source and/or battery pack, picking up or carrying the tool. WARNING Carrying power tools with your fi nger on the switch Read all safety warnings and all instructions.
  • Page 7 b) Use power tools only with specifi cally g) Do not use a damaged accessory. Before each use designated battery packs. inspect the accessory such as abrasive wheels for Use of any other battery packs may create a risk of chips and cracks, backing pad for cracks, tear or injury and fi...
  • Page 8 toward or away from the operator, depending on direction of ADDITIONAL SAFETY WARNINGS the wheel’s movement at the point of pinching. SPECIFIC FOR ABRASIVE CUTTING- Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect OFF OPERATIONS operating procedures or conditions and can be avoided by taking proper precautions as given below.
  • Page 9 – Check that the work piece is properly supported; 9. Keep the tool’s terminals (battery mount) free of swarf – Do not use cutting off wheel for side grinding; and dust. – Ensure that sparks resulting from use do not create ○...
  • Page 10 ○ Make sure that any swarf and dust falling on the power REGARDING LITHIUM-ION BATTERY tool during work do not collect on the battery. TRANSPORTATION ○ Do not store an unused battery in a location exposed to swarf and dust. When transporting a lithium-ion battery, please observe the ○...
  • Page 11 AC/DC adapter (ET36A) cannot be Lock used with this tool. Switching locks to the "ON" position NOTE Due to HiKOKI’s continuing program of research and development, the specifi cations herein are subject to Disconnect the battery change without prior notice. Warning...
  • Page 12 Electronic control 2. Battery ● Soft start Model BSL36B18 Reduces recoil against the operator by managing the number of rotations during startup. Voltage 36 V / 18 V (Automatic Switching*) ● Braking Function 4.0 Ah / 8.0 Ah Brake is activated when the switch is turned off, stopping Battery capacity (Automatic Switching*) the motor’s rotation.
  • Page 13 (2) Regarding the temperatures and charging time of the rechargeable battery The temperatures and charging time will become as shown in Table 2. Table 2 Charger UC18YSL3 Type of battery Li-ion Temperatures at which the 0°C – 50°C battery can be recharged Charging voltage 14.4 Multi volt...
  • Page 14 Operation is stopped because of an overload. Try operating the unit once again when the cause of the overload has been removed. Important notice on the batteries for the HiKOKI [Temperature Protection Function] cordless power tools Operation is stopped because the unit is overheated.
  • Page 15 TROUBLESHOOTING Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult your dealer or the HiKOKI Authorized Service Center. 1. Power tool Symptom Possible cause Remedy Tool doesn’t run No remaining battery power Charge the battery.
  • Page 16 Symptom Possible cause Remedy USB power lamp does not The USB power lamp lights up green to This is not a malfunction. switch off even though the indicate that USB charging is possible. USB device has fi nished charging. It is unclear what the The USB power lamp does not switch off...
  • Page 17 G3623DA (2WC) (NN) 230 mm – (BSL36B18) – – –...
  • Page 18 325491 230 mm : 374311 374314 336865 230 mm : 316825 (A24R) 373779 230 mm : 374411 BSL36B18 UC18YSL3 (14,4V – 18V) 374409 329897...
  • Page 20 Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan Code No. C99731912 F Printed in China...
