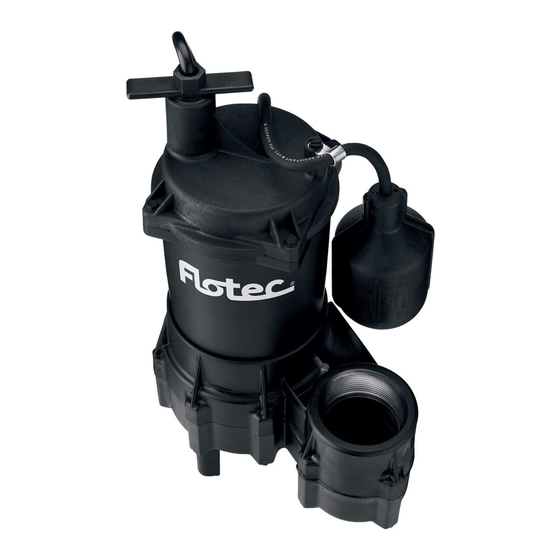

Flotec XSE3200A Series Owner's Manual
  1. Manuals
  2. Brands
  3. Flotec Manuals
  4. Water Pump
  5. XSE3200A Series
  6. Owner's manual

Flotec XSE3200A Series Owner's Manual

50 hz. submersible solids handling pumps
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

P.O. Box 342, Delavan, WI 53115
Phone: 1-262-728-5551
Fax: 1-262-728-4461
E-Mail: flotec@flotecpump.com
Web Site: http://www.flotecwater.com
Water
is Our
Business
Installation/Operation/Parts
For further operating, installation,
or maintenance assistance:
Call 1-262-728-5551
English
. . . . . . . . . . . . . .
©1999, PRINTED IN U.S.A.
®
XSE3200A SERIES
Installation/Fonctionnement/Pièces
Pour plus de renseignements
concernant l'utilisation,
l'installation ou l'entretien,
Composer le 1 (262) 728-5551
Pages 2-6
Français
OWNER'S MANUAL
50 Hz. Submersible Solids
Handling Pumps
NOTICE D'UTILISATION
Pompes submersibles 50 Hz.
pour les matières solides
MANUAL DEL USUARIO
Bombas sumergibles 50 Hz. para
el manejo de líquidos con sólidos
Pages 7-11
. . . . . . . . . . .
Instalación/Operación/Piezas
Para mayor información sobre el
funcionamiento, instalación o
mantenimiento de la bomba:
Llame al 1-262-728-5551
Español
Paginas 12-16
. . . . . . . . . .
FPX185 (12/6/99)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XSE3200A Series and is the answer not in the manual?

Questions and answers

Related Manuals for Flotec XSE3200A Series

Summary of Contents for Flotec XSE3200A Series

  • Page 1 Web Site: http://www.flotecwater.com Water MANUAL DEL USUARIO Bombas sumergibles 50 Hz. para is Our el manejo de líquidos con sólidos Business XSE3200A SERIES Installation/Fonctionnement/Pièces Instalación/Operación/Piezas Installation/Operation/Parts Pour plus de renseignements Para mayor información sobre el For further operating, installation, concernant l’utilisation, funcionamiento, instalación o...
  • Page 2 FLOTEC’s option, subject to FLOTEC SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, the terms and conditions set forth below. Your original receipt of purchase is required to determine warranty eligibility.

  • Page 3: Installation

    Installation INSTALLATION NOTICE: Install pump on a hard, level surface (cement, asphalt, etc.). Never place pump directly on earth, clay or gravel surfaces. Piping – Sewage Applications (51 mm/2" or Less Solids) In any case, piping must not be smaller than pump discharge. When installed in a sewage system, pipe must be capable of handling semi-solids of at least 51 mm (2”) diameter.

  • Page 4: Electrical Operation

    Electrical / Operation ELECTRICAL Hazardous voltage. Can shock, burn, or cause death. When installing, operating, or servicing this pump, follow safety instructions listed below. Step 1. DO NOT splice the electrical power cord. Step 2. DO NOT allow electrical cord plug to be submerged. Step 3.

  • Page 5: Troubleshooting

    Troubleshooting Sudden Starts. If power to pump is on when impeller may catch fingers or tools. Disconnect power before thermal overload resets, pump may start without warning. If servicing pump. you are working on pump, you may get an electrical shock or A.

  • Page 6: Repair Parts List

    Repair Parts Motor (See Note) Automatic 1478 0195 Float Switch 1477 0195 REPAIR PARTS LIST Part FPXSE3200A Description 220/240 Volt Lower Volute PW1-11P Impeller PW5-14P Upper Volute PW1-10PW Power Cord PS17-71 Volute Screws U30-912PS Double Lip Seal U9-397 NOTE: IF MOTOR FAILS, REPLACE PUMP.
