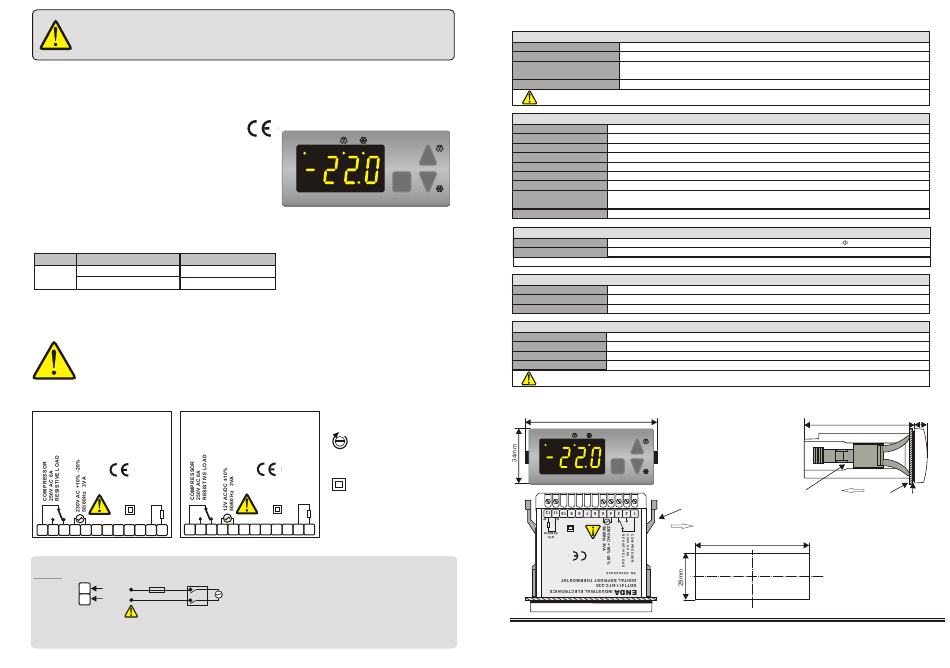

ENDA EDT1411 Quick Start Manual

Read this document carefully before using this device. The guarantee will be
expired by damaging of the device if you don't attend to the directions in the user
manual. Also we don't accept any compensations for personal injury, material
damage or capital disadvantages.
ENDA EDT1411 TEMPERATURE CONTROLLER
Thank you for choosing ENDA EDT1411 temperature controller.
* 34 x 77mm sized.
* On-Off control.
* Single contact output for cooling control.
* NTC probe input for cold room temperature.
* Offset value can be entered for NTC probe.
* Compressor protection parameters can be entered.
* In the case of probe failure, output state can be
selected on, off or periodical running.
* Upper and lower limits of the setpoint can be adjusted.
* Defrosting duration and interval can be adjusted.
* Upper and lower limits of the alarm value can be adjusted depending on the setpoint value.
* Having CE mark according to European Norms.
Output Supply Voltage
Order Code
230V AC +%10 -%20 EDT1411-NTC-230
Relay
12V AC/DC %10 ± EDT1411-NTC-12
Connection Diagram
ENDA EDT1411 is intended for installation in control panels. Make sure that the device is used
only for intended purpose. The electrical connections must be carried on by a qualified staff
and must be according to the relevant locally applicable regulations. During an installation, all of the
cables that are connected to the device must be free of energy. The device must be protected
against inadmissible humidity, vibrations, severe soiling and make sure that the operation
temperature is not exceeded. The cables should not be close to the power cables or components.
ENDA ENDA
INDUSTRIAL ELECTRONICS
EDT1411-NTC-230 EDT1411-NTC-12
DIGITAL DEFROST THERMOSTAT DIGITAL DEFROST THERMOSTAT
SN: XXXXXXXXX SN: XXXXXXXXX
NTC
SENSOR
R W
1 2 3
1 2 3 4 5 6 7 8 9 10 11 12
NOTE:
Fuse
SUPPLY: F 100 mA
Switch
250V AC
4 Line
184-253V AC
50/60Hz 3VA
5
Neutral
Fuse should
Cable size: 1,5mm²
be connected
°F
°C
SET
ENDA
INDUSTRIAL ELECTRONICS
Holding screw
0.4-0.5Nm.
Equipment is protected
throughout by
NTC DOUBLE INSULATION
SENSOR
R W
4 5 6 7 8 9 10 11 12
Note:
1) Mains supply cords shall meet the requirements of
IEC 60227 or IEC 60245.
230V AC
2) In accordance with the safety regulations, the power
Supply
supply switch shall bring the identification of the
relevant instrument and it should be easily
accessible by the operator.
Technical Specifications
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gasses.
ELECTRICAL CHARACTERISTICS
Supply voltage
Power consumption
Wiring
Scale
Sensitivity /Accuracy
Time Accuracy
Indicator
EMC
EDT1411
Safety requirements
OUTPUT
COMPRESSOR
Life expectancy for relay
Note: The relay contacts are suitable for in-line switching of compressors up to 1/2 HP at 240V AC or 1/4 HP at 110V AC.
CONTROL
Control type
Control algorithm
Hysteresis
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
Dimensions
85mm
°F
ENDA
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu 1. Baþer Sok. No:26/1 34775 - ÜMRANÝYE/ÝSTANBUL/TÜRKÝYE
Tel : +90 216 499 46 64 Pbx.
1/3
url : www.enda.com.tr
0 ... +50°C/-25 ... 70°C (with no icing)
80 , up to % 31°C decreasing linearly 50% at 40 °C
According to EN 60529 Front panel : IP60
Rear panel : IP20
Max. 2000m
230V AC +%10 -%20, 50/60Hz or 12V AC/DC %10, 50/60Hz. ±
Max. 3VA
1.5mm² screw-terminal connections.
-50.0 ... +110.0°C (-58.0 ... +230.0°F)
0.1°C / ±1 °C
(±%1-15sec) for hour unit, (±%1-1sec) for minute unit
4 digits, 14mm, 7 parts yellow LED
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B is satisfied for EMC tests.
The device is designed to operate in controlled electromagnetic environment)
EN 61010-1: 2001 (Pollution degree 2, overvoltage category II)
Relay: 250V AC, 8A( for resistive load ), NO+NC; 1/2 HP 250V AC
Mechanical 30.000.000; Electrical 100.000operation.
Single-setpoint control
On-Off control
Adjustable between 0.1 ... 20.0°C.
Suitable for flush-panel mounting.
W77xH34xD70mm
Approx. 250g ( after packing the device and a probe )
Self extinguishing plastics
For removing mounting clamps:
Push out the flush-mounting
°C
clamp in direction 1 as shown
SET
in the figure below. Then, pull
out the clamp in direction 2.
EDT1411
Flush mounting Flush mounting
clamp
1
Panel cut-out
71mm
Fax : +90 216 365 74 01
Cos =0.4 for inductive load ( )
Depth
8mm
70mm
2
Panel Rubber
clamp
packing
Note : 1) Panel thickness
should be maximum
7 mm.
2) If there is no 60mm
free space at the back
side of the device, it
would be difficult to
remove it from the
panel
EDT1411-E-01
