ENDA EDT1323 Quick Start Manual

Plea e ead t i d cument carefully efore using this roduct. Th guarante wi l e s r h s o
invalidated if the devi e s da aged by not followi g inst ctions detail d in the c i m
manua . Th c mpany sha l not e l e o l
cau ed, which may be exper e ced as a result f the installati n or u e of this product. s i n

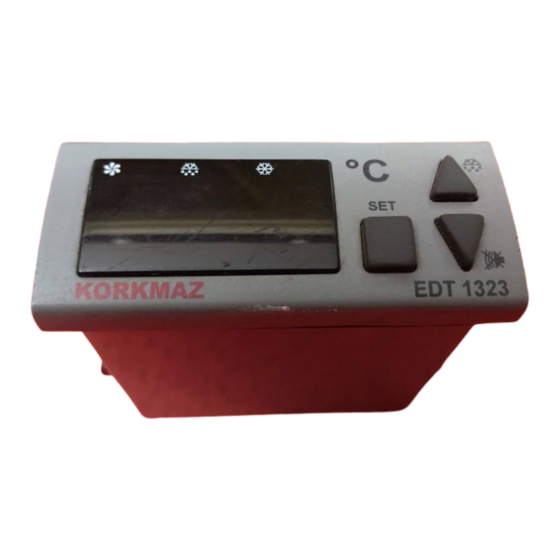

ENDA EDT1323 TEMPERATURE CONTROLLER
Thank you for choosing ENDA EDT1323 temperature controller.
* 34 x 77mm sized.
* On-Off control.
* NTC or PTC sensor.
* 3 contact outputs for cooling defrost and fan controls.
* 2 probes for temperature and defrost controls.
* Adjustable offset for probe.
* The maximum and the minimum values of the setpoint can
be limited.
* Upper and lower alarm values can be entered depending on
setpoint value.
* A buzzer warning for probe failure or alarm cases.
* Time and evaporator temperature dependent defrosting is possible.
* Fan may be operated depending on defrost and compressor.
* CE marked according to European Norms.
Order Code : EDT1323- -
1 2
1 - Probe Type 2 - Supply Voltage
NTC.....NTC Probe 230VAC...230V AC with external transformer
PTC.....PTC Probe 24............24V AC/DC
12............12V AC/DC

Connection Diagram

ENDA EDT1323 is intended for installation in control panels. Make sure that the device is used
only for intended purpose. The electrical connections must be carried out by a qualified staff
and must be according to the relevant locally applicable regulations.
the cables that are connected to the device must be free of electrical power. The device must be
protected against inadmissible humidity, vibrations, severe soiling and make sure that the operation
temperature is not exceeded. The cables should not be close to the power cables or components.
ENDA ENDA
INDUSTRIAL ELECTRONICS
EDT1323-PTC-12 EDT1323-NTC-12
DIGITAL THERMOSTAT
WITH DEFROST AND FANS-MANAGING WITH DEFROST AND FANS-MANAGING
SN: XXXXXXXXX
R W W
1 2 3 4 5 6 7 8 9 10 11 12
NOTE :
Fuse
SUPPLY:
F 100 mA
Transformer
250V AC Switch
8
10,8-13,2V AC
50/60Hz 7VA
9
Fuse should
Cable size: 1,5mm²
be connected.
b p e
n ru e
b re spon ible for any da age r loss s owever s m o e h
o o s
ENDA
During an installation, all of
INDUSTRIAL ELECTRONICS
DIGITAL THERMOSTAT
SN: XXXXXXXXX
Holding screw
0.4-0.5Nm
Equipment is protected
throughout by DOUBLE
INSULATION.
1 2 3 4 5 6 7 8 9 10 11 12
Note : 1) Mains supply cords shall meet the requirements of
IEC 60227 or IEC 60245.
2) In accordance with the safety regulations, the power
supply switch shall bring the identification of the
relevant instrument and it should be easily
230V AC
accessible by the operator.
Supply
SENSOR INPUT:
Pay attention to the colors of the PTC probe cables while
connecting them to the PTC SENSOR input of the device.

Technical Specifications

e l b
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gasses.
ELECTRICAL CHARACTERISTICS
Supply voltage
Power consumption
Wiring
Scale
°C
Sensitivity
SET
Accuracy
EMC
EDT1323
Safety requirements
OUTPUT
DEFROST
FAN
COMPRESSOR
Life expectancy for relay
Note: The relay contacts are suitable for in-line switching of compressors up to 0,5 HP at 240V AC or 1/4 HP at 110V AC.
CONTROL
Control type
Control algorithm
Hysteresis
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
Dimensions
ENDA
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu Barbaros Cad. Kutup Sok. No:20
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
0 ... +50 °C -25 ... +70°C (with no icing) /
80%, up to 31 °C decreasing linearly 50% at 40
According to EN 60529 Front panel : IP60
Rear panel
Maximum 2000m
230V AC +%10 -%20, 50/60Hz(with external transformer) or 24V AC/DC ±%10, 50/60Hz or
12V AC/DC ±%10, 50/60Hz
Max. 7VA
2.5mm² screw-terminal connections.
-50...+100°C for NTC, -50...+150°C for PTC.
1°C
±1 °C
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B is satisfied for EMC tests.
The device is designed to operate in controlled electromagnetic environment)
EN 61010-1: 2001 (Pollution degree 2, overvoltage category II)
Relay: 250V AC, 8A (for resistive load), NO+NC ; ½ HP 250V AC Cos =0.4 (for inductive load
Relay: 250V AC, 8A (for resistive load), NO ; ½ HP 250V AC Cos =0.4 (for inductive load)
Relay: 250V AC, 8A (for resistive load), NO ; ½ HP 250V AC Cos =0.4 (for inductive load)
Mechanical 30.000.000 operation; Electrical 100.000 operation.
Dual-setpoint control
On-Off control
Adjustable between 1 ... 20°C.
Suitable for flush-panel mounting.
W77xH34xD70mm
EDT 1323-230 : Approx. 375g (after packing the device ,transformer and a probe)
EDT 1323-12 : Approx. 180g (after packing the device and a probe)
Self extinguishing plastics
85mm
For removing mounting clamps:
°C
Push out the flush-mounting
clamp in direction 1 as shown
SET
in the figure below. Then, pull
out the clamp in direction 2.
EDT1323
Flush mounting Flush mounting
clamp
1
Panel cut-out
71mm
34775 - ÜMRANÝYE/ÝSTANBUL/TÜRKÝYE
Fax : +90 216 365 74 01
°C
: IP20
Depth
8mm
70mm
2
Panel
Rubber
clamp
gasket
Note : 1) Panel thickness
should be maximum
7 mm.
2) If there is no 60mm
free space at the back
side of the device, it
would be difficult to
remove it from the
panel.
EDT1323-E-04
