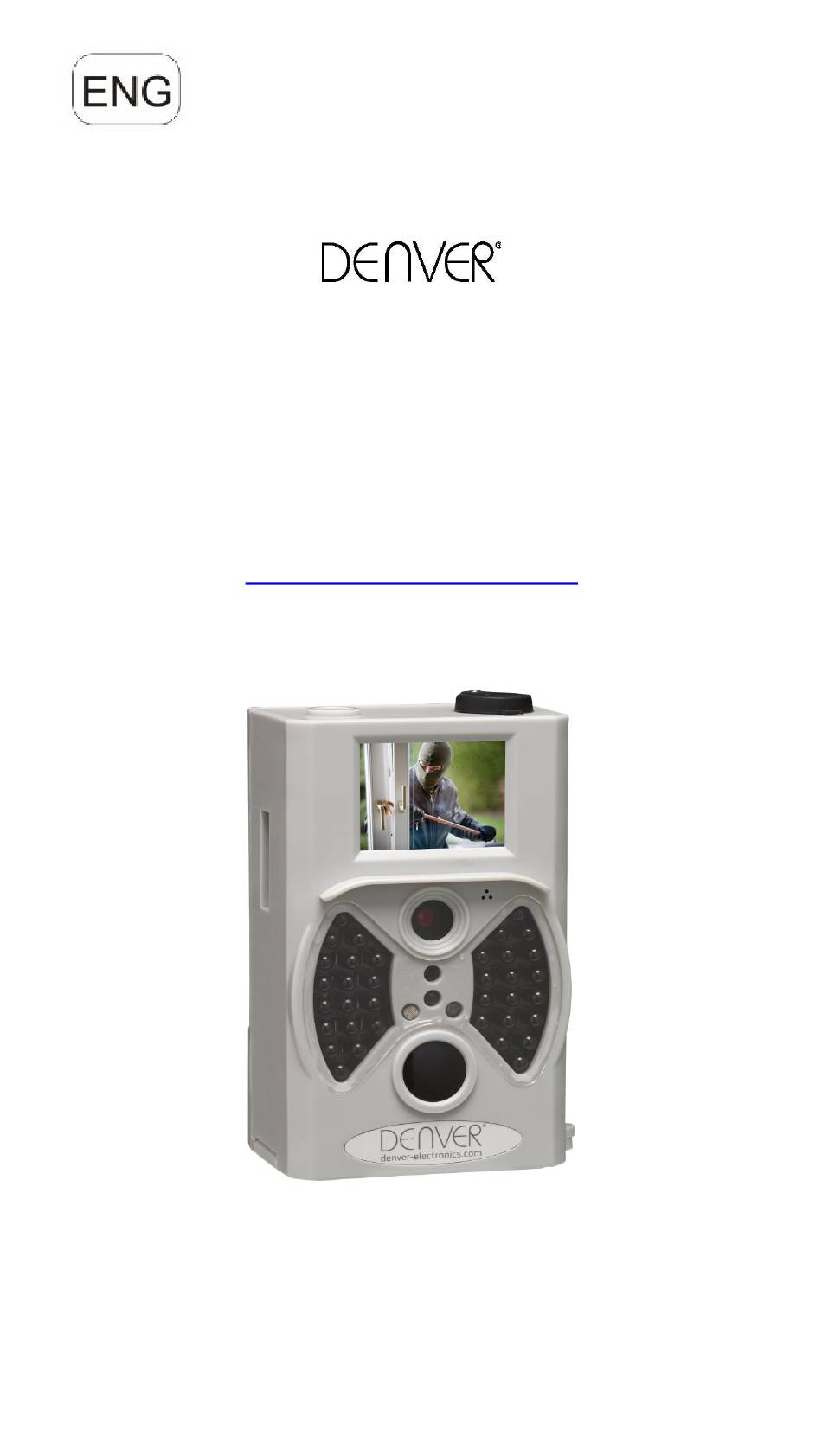

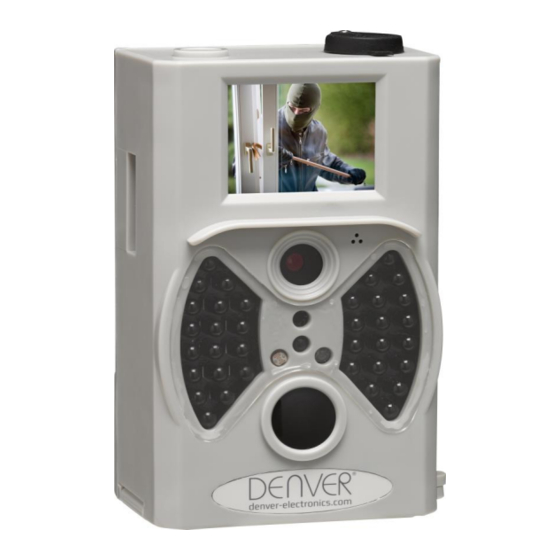

- Page 1 Wild Camera DENVER HSC-5003 Instruction Manual WWW.DENVER-ELECTRONICS.COM ENG-1...
-
Page 2: Table Of Contents
Table of Contents 1. Instructions ..................... 3 1.1 General Description................3 1.2 Camera Body Interface ................. 3 1.3 Camera components and features ............3 1.4 Remote Control ..................3 1.4.1 Navigating ..................4 1.5 Wall mount’s Function & Installation……………………………………….5 1.6 Shooting Information Display ..............5 1.7 Supported Format ................. -
Page 3: Instructions
1. Instructions 1.1 General Description This digital trail camera is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 12M pixels) or records 1080p HD video clips (WVGA or QVGA). -
Page 4: Navigating
1.4.1 Navigating Press UP or DOWN to select or highlight the menu item, while press LEFT or RIGHT to select the option of each item and press OK to make selection. ENG-4... -
Page 5: Wall Mount's Function & Installation
1.5 Wall mount’s Function & Installation This wall mount is for camera to set in house. It can support 10kg and do the level of 360°rotating and 90°vertical turn. After selecting suitable vertical angle, please fix with turning strips. then settle down wall mount on wall with three screws. -
Page 6: Cautions
2. Cautions The working voltage of the camera is 6.0V. The camera is supplied by four or eight AA batteries. Please unlock the write-protect before inserting the SD-card. Please insert the SD-card when the power switch is at OFF position before testing the camera. -
Page 7: Insert The Sd-Card
3.2 Insert the SD-card Insert SD-card into the card slot with marked side upwards. Please note that the SD-card can only be plugged in one direction. Make sure that the write-protect switch of the SD-card is on the “write” position. 3.3 Power on and Enter into the ON Mode Before switching on, please pay attention to the following: 1. -
Page 8: View Images Or Videos
2. TV monitors which connects to camera with TV cable. Turn right the select switch to view images, the latest image will be shown in the LCD screen on camera or TV monitor. Press UP to view the previous image and press DOWN for the next. -
Page 9: Advanced Operations
4. Advanced Operations From the basic operations of the camera in previous chapter, we know that the camera has three basic operation modes: 1. OFF mode: Power switch is at OFF position (Right). 2. ON mode: Power switch is at ON position (Left). 3. -
Page 10: Photo Setting
4.1.1 Photo Setting PHOTO Photo Mode Video Photo&Video Resolution Delay 1min 5min 10min 30min Multi 4.1.2 Video Setting VIDEO Photo Mode Video Photo&Video 1080P 720P Resolution WVGA QVGA Video Length Voice ENG-10... -
Page 11: System Setting
4.1.3 System Setting SYSTEM Date/Time Set Date/Time Distance Set Distance Language Set Language Timer Set working time Internal Memory Format SD Card NTSC TV MODE Password Set Password Default Default Setting ENG-11... -
Page 12: Default
4.1.4 Default Default Settings are listed as below: Setting Default Items Mode Camera Camera, Video, Camera&Video Resolution (Camera) 12MP,8MP,5MP Interpolated Delay 5 Seconds 5-30 Seconds,1-30 Minute Multi Single Single,3,6,9 Pictures 100,200,400 Resolution (Video) 1080P 1080P,720P,WVGA,QVGA Video Length 10s,30s,60s,90s Same as last YY/MM/DD,MM/DD/YY,DD/MM/YY Date/Time time... -
Page 13: Set Photo Size
4.1.8 Set Photo Size This parameter has three values: 12MP, 8MP and 5MP. The default value is 5 mega pixels. The following shows how to set pixel size as 5M Pixel: a) Press MENU to display the setting menu. b) Press DOWN to select Resolution. c) Press Right to select 12M Pixel. -
Page 14: Set Video Length
4.1.13 Set Video Length The following shows how to set video length to 30 Seconds, provided that the previous value is 10 Seconds: a) Press MENU to display the setting menu. b) Press DOWN to select Video Length. c) Press down the select switch to save the current setting, then press MENU to return to info display. -
Page 15: Playback
Press MENU to cancel setting and return to previous menu. 4.2 Playback In playback mode, images or videos can be viewed, deleted. The images and videos can be viewed on: LCD screen on camera and TV monitor which connect to camera with TV cable. For simplicity, operations with PC won’t be introduced here. -
Page 16: Appendix Ⅰ : Technical Specifications
Appendix Ⅰ : Technical Specifications Image Sensor Type(True 5 Mega Pixels Color CMOS Megapixels) Memory SD Card 8MB~32GB F=3.1; FOV=60 ° Lens Size 145mm * 80mm * 55 mm IR Filter: Full Automatic IR Filter TFT Display Screen: 2.0 inch PIR Sensitivity 3 sensitivity levels: High/Normal/Low PIR Sensor Sight Angle... - Page 17 ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S Electric and electronic equipment contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment) is not handled correctly. Electric and electronic equipment is marked with the crossed out trash can symbol, seen above.
