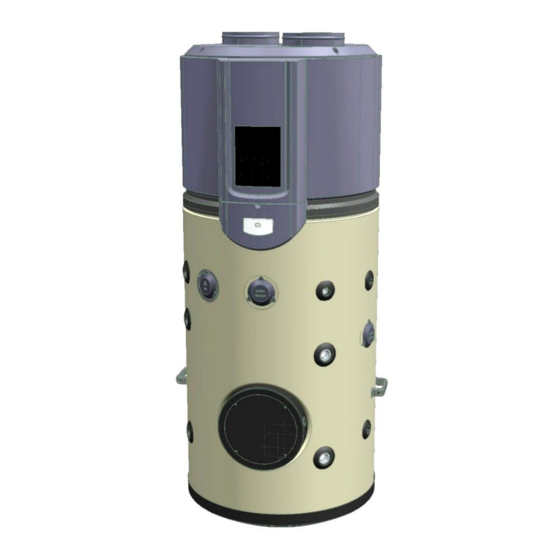

Summary of Contents for Cool Energy EcoStore CE-ES200

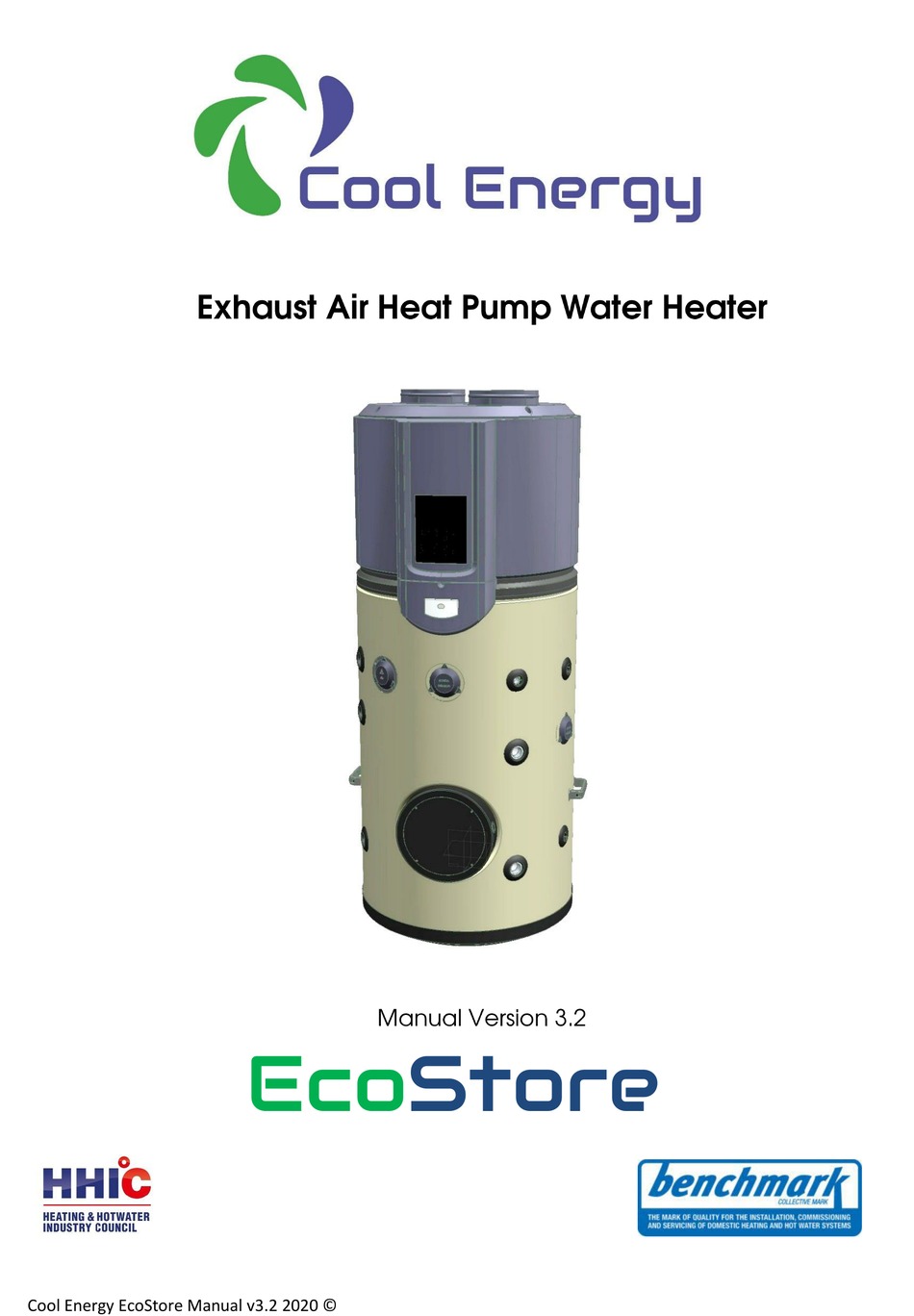

- Page 1 EcoStore Cool Energy EcoStore Manual v3.2 2020 ©...
- Page 2 INTRODUCTION These instructions are addressed to both the installer and the final user, who respectively must install and use the heat pump water heater. Failure to meet the provisions contained in this manual will result in the cancellation of the warranty. These instructions include essential and important information for safe and proper installation, are an integral part of the product.
-
Page 3: Table Of Contents
EcoStore Heat Pump Water Heater INDEX GENERAL NOTICE ..........................03 1.1 F ....................................04 IELD OF USE .............................06 PRODUCT NAME……………………….. SAFETY INFORMATION………………………............................06 1.4 C ...............................07 ERTIFICATIONS AND ARKINGS 1.5 M ..........................07 EANING OF THE SYMBOLS USED HEREIN 1.6 D .................................07 ELIVERY AND PACKAGING 1.7 T RANSPORT ……... - Page 4 Cool Energy - EcoStore 4.4.1 W ..............................22 EEKLY DISINFECT FUNCTION 4.4.2 V ..................................22 ACATION MODE 4.4.3 P ..............................22 OWER N AND POWER 4.4.4 L .................................22 OCK AND UNLOCK 4.4.5 Q ...................................22 UERY FUNCTION 4.5 S ......................................23 ETTING 4.5.1 T ................................23 EMPERATURE SETTING 4.5.2 C...
-
Page 6: General Notice
The manufacturer cannot be held responsible for any installation errors and inappropriate equipment use. Product nameplate – EcoStore CE-ES200 / CE-ES300 Safety Precautions The purchaser shall take care of the installation. The manufacturer shall not be liable for any damages... -
Page 7: Ertifications And Arkings
EcoStore Heat Pump Water Heater Certifications and Markings The verification has been performed with reference to the following technical standards: UNI EN 16147; EN 12102; EN 60335-1; EN 60335-2-21; EN 60335-2-40; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3; EN 50366. Meaning of the symbols used herein Symbol Meaning... -
Page 8: Easuring
EcoStore - Heat pump water heater Model Unit 1664 EcoStore CE-ES200 2107 EcoStore CE-ES300 Measuring The measuring units used in this manual for the relevant physical magnitudes are those of the International System (SI). Temperature unit shift Press ENTER for 3 seconds to unlock the buttons. -
Page 9: Technical And Dimensional Specifications
Cool Energy EcoStore - Heat Pump Water Heater TECHNICAL AND DIMENSIONAL SPECIFICATIONS Operating principle The all in one air to water heat pump uses the energy of the air existing in the environment. The air required for the proper operation of the heat pump can be drawn from the outside through a window (minimum temperature -20°C) / from the surrounding environment or from other... -
Page 10: Hot Water Temperature
EcoStore - Heat pump water heater > Free energy The necessary energy for the heating of sanitary water comes for 2/3 from the air and 1/3 from the electric power supply. > Cooling through the heat pump for hot sanitary water After heat subtraction, the lower-temperature output air can be used during summer to cool the environment where the heat pump is installed. -
Page 11: Anti-Corrosion Protection
Cool Energy EcoStore - Heat Pump Water Heater 2.4.3 Anti-corrosion protection The protection against corrosion is performed by an integrated electronic anode. Data: Electronic • Feeding 90 - 253Vac 50 - 60Hz • Maximal absorption • Maximal output voltage 20Vdc •... -
Page 12: Dimensional Characteristics
EcoStore - Heat pump water heater Dimensional characteristics The technical and dimensional characteristics of the equipment are indicated in Fig. 1. The electrical characteristic data of each model can be found on the equipment itself. Diameter Ø Model Height Weight EcoStore 200 1586mm 101kg... -
Page 13: Technical Data Table
Cool Energy EcoStore - Heat Pump Water Heater Technical data table Model EcoStore 200 EcoStore 300 Type Exhaust Air Heat Pump Water Heater Ԩ Standard 55°C (Minimum 38°C – Maximum 65°C) Hot Water Temperature Range Storage material (DIN 4753) AISI 316 / EN 1.4404... - Page 14 EcoStore - Heat pump water heater FICHE ACCORDING TO REGULATION (EU) No 812/2013 EcoStore 200 EcoStore 300 MODELS Declared load profile Water heating energy efficiency class 108% 114% Indoor air +20°C 101% 106% under warmer climate condition (+14°C) Water heating energy efficlency 100% under average climate conditions (+7°C)
-
Page 15: Installation And First Start-Up
Cool Energy EcoStore - Heat Pump Water Heater INSTALLATION AND FIRST START-UP (Qualified personnel only) Preliminary Checks The flooring beneath the unit must be able to support the weight of the unit when filled with water. The unit must be sited in order to minimize noise and vibration. -
Page 16: Ydraulic Connection
EcoStore - Heat pump water heater CAUTION! • The equipment must be installed in compliance with current building regulations. • Engineers installing the hot water heat pump must be qualified to do so. • Observe the safety regulations. • The installation environment and the electrical and hydraulic systems the equipment shall be connected to must comply with the regulations in force. -
Page 17: Hydraulic Safety Unit
Cool Energy EcoStore - Heat Pump Water Heater 3.1.1 Hydraulic safety unit (mandatory) You must install all safety components supplied in the G3 kit to comply with Building regulation G3 or with equivalent standards in force including: Multiblock Pressure reducing / check / safety valve Temperature &... -
Page 18: Pressure Reducer
EcoStore - Heat pump water heater 3.1.2 Pressure reducer Should the network pressure exceed 0.6 MPa (6 bar), you need to install an appropriate pressure reducer upstream of the hydraulic safety unit, ensuring the indicated operating range. 3.1.3 Expansion tank To prevent any overpressures that might damage the equipment, frequently triggering the safety unit and causing water dripping, it is mandatory that you install an adequate expansion vessel. -
Page 19: Duct
Cool Energy EcoStore - Heat Pump Water Heater Duct DUCT ROUND DUCT RECTANGLE DUCT Dimension (mm) 0190 190x190 ≤2 ≤2 Straight-line pressure drop (Pa/m) ≤5 ≤5 Straight-line length (m) ≤2 ≤2 Bent pressure drop (Pa/m) Bent’s qty. ≤5 ≤5 The resistance of duct will decrease air-flowrate, which will lead to capacity of unit decreased. -
Page 20: Electrical Connection
EcoStore - Heat pump water heater Electrical connection WARNING: The equipment is already factory-wired and is equipped with a 3-core flex for the connection to an outlet having appropriate electrical characteristics. Verify that the mains voltage complies with the value specified in the label applied on the equipment, and that the mains can supply the specified power. -
Page 21: Usage Instructions
Cool Energy EcoStore - Heat Pump Water Heater USER INSTRUCTIONS Switch-on WARNING: Before switching on the equipment, always verify the electrical connections are correct; also check that the tank is filled with water, to avoid seriously damaging the refrigerating unit and the electrical heating elements. - Page 22 EcoStore - Heat pump water heater ICON DESCRIPTION Wire controller If connected a wire controller, it will be lightened; otherwise it will be extinguished. Outside solar heat source If an outside solar heat source has been connected to the unit, it will flash with 1 Hz frequency;...
-
Page 23: Operations Before Turning On The Product
Cool Energy EcoStore - Heat Pump Water Heater It shows unit setting/running parameters, error/protection code under query mode. Reserved Water Temperature setting It will be lightened when setting water temperature or setting days for 14.1 vacation. Date setting: 14.2 It will be lightened when setting days for vacation;... -
Page 24: Heat Source Shift
EcoStore - Heat pump water heater 4.3.3 Heat source shift The default heating source is the heat pump. • If ambient is range out of heat pump, heat pump will stop running, the unit will shift automatically to activate E-heater and show the icon LA ( );on the display, then if the ambient temperature goes into the running range of heat pump again, it will stop E-heater and shift automatically to heat pump again, and the icon LA(... -
Page 25: Power On And Power Off
Cool Energy EcoStore - Heat Pump Water Heater 4.4.3 Power On and power Off Press “ON/OFF” ( ) button after all the above have finished and the system will run as the setting. And simply press the same button to stop it. -
Page 26: Setting
Heat pump water heater Setting 4.5.1 Temperature setting The temperature displayed is the water temperature in the upper part of tank. Method for temperature set: Press the button to increase the temperature, press the button to decrease. Confirm setting. 4.5.2 Clock setting The clock is for a 24-hour system and the initial time is 00:00. - Page 27 Heat pump water heater Enter timer setting. Select timer ( ) to be set The timer icon will flash slowly if it is selected. Confirm the selected setting timer. Then will be lightened. Then the hour value of timer will flash slowly. Set the hour value of timer.
-
Page 28: Cancel
Heat pump water heater Method for cancel timer setting: Enter timer setting. Select the timer ( ) which needs to be cancelled. The timer icon will flash slowly if it is selected. Confirm to cancel the timer. Then repeat selecting timer and cancelling. If the timer has not been set, when press button display will s h o w . -
Page 29: Disinfect Mode
Heat pump water heater 4.5.5 Disinfect mode Manually turn on disinfect function: Icon will flash Confirm manually activate disinfection function, then the unit will heat up water to 65°C at least for disinfection. Disinfect Clock Setting: Press button for 3 sec. To enter in the hour setti n gs of Disinfect modality. -
Page 30: Vacation Mode
Heat pump water heater 4.5.6 Vacation mode Method for Vacation mode setting: Enter Vacation setting. Icon will flash. Icon will be lightened and will show the last setting vacation days. Set vacation days. The day’s range is 1~99 days. Confirm Vacation setting and quit out. The unit will immediately go into Vacation mode. -
Page 31: Error
Heat pump water heater Error If some errors happen, the buzzer will buzz 3 times every other minute. Press for 1 sec to stop the buzzer but the alarm icon will keep blinking. When an error is verified, although in some conditions it may function, it cannot reach the expected efficiency. - Page 32 Heat pump water heater Electric leakage error Maybe some wires have been broken or If PCB current induction circuit check bad wire connection. the current difference between L,N Contact a qualified person to service the 14mA, system consider it as "electric unit.
-
Page 33: Faq
Heat pump water heater When the ambient temp T4 is out of Heat Pump running range (-7~43 °C) Heat Pump will stop, unit will show LA on the position of clock on display until It is normal, and no necessary to repair. T4 back to (-7~ 43 °C). -
Page 34: Hydraulic Safety Unit Efficiency Check
Heat pump water heater 4.11 Hydraulic safety unit efficiency check The hydraulic unit efficiency is very important to prevent any overpressures inside the tank (that would damage it), and allows the user to safely operate the equipment. Periodically check the efficiency of the hydraulic safety unit, according to the instructions provided by the manufacturer. -
Page 35: Maintenance Instructions
Heat pump water heater MAINTENANCE INSTRUCTIONS (Qualified personnel only) WARNING: the repair and / or maintenance operations must only be performed by qualified personnel, exclusively using genuine spare parts. Before performing any maintenance operations, disconnect the equipment from the mains. Before performing any maintenance operations we recommend that you purchase any spare parts from the authorized dealers or directly from the Manufacturer. -
Page 36: Heat Pump Unit Maintenance
Heat pump water heater Refrigerating unit maintenance The refrigerating circuit requires no maintenance. Components are cleaned during the anode and tank maintenance. Cleaning the aspiration air filter Periodically the filter placed in the air entry opening is removed and cleaned in order not to damage the system efficiency. -
Page 37: Air Circuit Supply
Heat pump water heater Air circuit supply Maintenance operations only include the cleaning of the evaporator, when needed or at the end of each shift, when checking the protective anode. WARNING: Danger of injuries due to the presence of sharp edge blades. The blades must not be deformed or damaged –... -
Page 38: Replace And / Or Control The Electrical Resistance
Heat pump water heater You must replace the anode in case of wrong working. CAUTION: a wrong functionality of the anode reduces the last of the device. In case of necessary substitution of the anode please do the following operations: Procedure: •... -
Page 39: Outside Cleaning
Heat pump water heater Procedure: • Turn off the appliance. • Disconnect appliance from the electrical supply • Empty the tank (see par. 4.12) until the water level is lower than the place where the electric resistance element is installed. •... -
Page 40: Measures To Be Adopted In Case Of Malfunctions
Heat pump water heater MEASURES TO BE ADOPTED IN CASE OF MALFUNCTIONS SOLUTION ADN MALFUNCTIONS POSSIBLE CAUSE EXPLANATIONS Bad connection to the Re-connect the supply. electrical supply. The water temperature is set Set the water temperature at a too low. higher value. -
Page 41: Illustrations
Heat pump water heater Illustrations Fig. 1 - Dimension mod. Ecostore LEGEND KW cold water inlet PV heat exchanger inlet Z recirculation WW hot water outlet PR heat exchanger outlet K condensate drain pipe 41 | P a g e... - Page 42 Heat pump water heater Fig. 2 – Maintenance space requirements (unit: mm) Recommended 42 | P a g e...
- Page 43 Heat pump water heater Fig. 4 - Hydraulic connection diagram – Second Heat Source Fig. 4 - Hydraulic connection diagram – Twin Coil Circuits SYMBOL LEGEND Interception valve Interception valve with retain device Pressure reduction Thermometer Manometer Condenses pipe Drain tap Safety valve Leak valve Pump...
- Page 44 Heat pump water heater Fig. 6 - Duct A: Without ducting B: Air outlet without conveyor, air inlet connect to duct (A≤5m) C: Air inlet and outlet with D: Air outlet connect to conveyor, duct (A+B ≤ 5m) air inlet without duct (A≤5m) 44 | P a g e...
- Page 45 Heat pump for hot water without connection to air ducts Thanks to the vast range of heat pump for hot sanitary water (without, with one or two exchangers with thermic heat integration), the solar systems and other supply sources, as for example firewood heaters, can represent a further use of the environmental energy.
- Page 46 Heat pump water heater Fig. 7 – Possible solutions when using the heat pump Heat pump for sanitary hot water with aspiration kit Heat pump for sanitary hot water with aspiration kit Heat pump for sanitary water with pellet boiler Heat pump for sanitary water with wall-mounted gas boiler 46 | P a g e...
- Page 47 Fig.6- Electric connection - 47 -...
- Page 49 TEMPERATURE SENSOR LEGEND T3: Evaporator output temperature sensor T4: Ambient temperature sensor T5U: Upper tank water temperature sensor T5L: Lower tank water temperature sensor Tp: compressor discharge temperature sensor Th: Compressor suction temperature sensor DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT ( 2002/96/EC – WEEE DIRECTIVE) This symbol indicates that the appliance must not be treated as domestic waste upon disposal.
- Page 50 MAINS PRESSURE HOT WATER STORAGE SYSTEM COMMISSIONING CHECKLIST This Commissioning Checklist is to be completed in full by the competent person who commissioned the storage system as a means of demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference. Failure to install and commission this equipment to the manufacturer’s instructions may invalidate the warranty but does not affect statutory rights.
- Page 51 - 51 -...
- Page 52 Cool Energy Holding Ltd. 163 Cleethorpe Road, Grimsby, DN31 3AX. Email: sales@coolenergyshop.com www.coolenergyshop.com...
