Installation and Users Guide
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
RETAIN FOR FUTURE REFERENCE
Customer Service and Technical Support
Phone: 046 945 0000
Email: info@heatingshop.ie
Website: www.heatingshop.ie
Page | 1
Cool Energy inverTech Manual v6.6 2020 ©
Advertisement
Table of Contents
Related Manuals for Cool Energy inverTech Monoblock Series
Summary of Contents for Cool Energy inverTech Monoblock Series
- Page 1 Version 6.6 Installation and Users Guide IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS RETAIN FOR FUTURE REFERENCE Customer Service and Technical Support Phone: 046 945 0000 Email: info@heatingshop.ie Website: www.heatingshop.ie Page | 1 Cool Energy inverTech Manual v6.6 2020 ©...
-
Page 2: Table Of Contents
Product Protection..........................28,29,30,31,32 Section 4........................... 33 Commisioning…………............................ 33 Service & Maintenance..........................33 Inspection and Service........................33 Owner Inspection..........................34 Section 5........................... 35 Benchmark…............................. 35 Commissioning Checklist…........................ 35 Service Record……………........................36 Page | 2 Cool Energy inverTech Manual v6.6 2020 ©... -
Page 3: Important Safety Precautions
Under the Consumer Protection Act 1987 and the Health and Safety at Work Act 1974, it is required to provide information on substances hazardous to health (COSHH Regulations 1998). Cool Energy takes every reasonable care to ensure that these products are designed and constructed to meet these general safety requirements, provided they are properly installed and used. -
Page 4: Important End User Safety Information
• Periodically check the condition of any supports for deterioration. • Do not wash the unit with water, alcohol, benzene, thinner, glass cleaner or powders. • During cleaning, isolate the electrical supply to the appliance. Page | 4 Cool Energy inverTech Manual v6.6 2020 ©... -
Page 5: Section 1

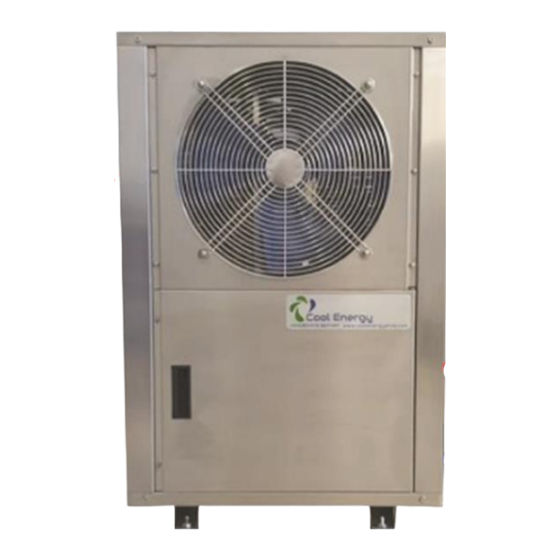

-20°C ambient temperature with high output temperatures up to 60°C. Compared with traditional Oil / LPG boilers, Cool Energy heat pumps produces up to 50% less CO² whilst saves up to 80% on running costs. Cool Energy heat pumps are not only highly efficient, but also easy and safe to operate. -
Page 6: Section 2
9. The plumbing should be insulated to reduce heat losses, and water treated with a suitable inhibited antifreeze. Note: We recommend installing shut-off valves on the inlet and outlet water connections for ease of serviceability. Page | 6 Cool Energy inverTech Manual v6.6 2020 ©... -
Page 7: Materials Needed For Installation
Note: For detailed specifications of the units please refer to name plate on the units. Correct installation is required to ensure safe operation. The requirements for Cool Energy heat pumps include the following: 1. Appropriate site location and clearances. 2. Wiring to conform to 18 edition wiring regulations. - Page 8 Allow for proper clearances around the unit. Location should allow easy access for maintenance. For any further guidance on heat pump installations for planning purposes, please consult the latest version of the MCS guidelines or your local authority. Page | 8 Cool Energy inverTech Manual v6.6 2020 ©...
- Page 9 Example Installation Method 1: - Heating only with radiators Page | 9 Cool Energy inverTech Manual v6.6 2020 ©...
- Page 10 Example Installation Method 2: - Heating only with radiators Page | 10 Cool Energy inverTech Manual v6.6 2020 ©...
- Page 11 Example Installation Method 3: - Heating Only with Underfloor & Radiators Page | 11 Cool Energy inverTech Manual v6.6 2020 ©...
-
Page 12: Suggested Installation Methods
Example Installation Method 4: - Hot Water / Thermal Store Only Page | 12 Cool Energy inverTech Manual v6.6 2020 ©... - Page 13 Example Installation Method 5: - Hot Water & Heating Page | 13 Cool Energy inverTech Manual v6.6 2020 ©...
-
Page 14: Water Connections
7. In order to reduce the back pressure, the pipes should be installed horizontally. 8. Minimum flow rates detailed on the date badge must be maintained and could void warranty and damage unit if they are not. Page | 14 Cool Energy inverTech Manual v6.6 2020 ©... -
Page 15: Electrical Connections
32a Type C MCB / RCBO CE-iVT18 3PH – 16a Type C MCB / RCBO CE-iVT26 3PH – 20a Type C MCB / RCBO CE-iVT32 3PH – 32a Type C MCB / RCBO Page | 15 Cool Energy inverTech Manual v6.6 2020 ©... -
Page 16: Electrical Wiring Diagram
Wiring Diagrams Single Phase inverTech Models: Page | 16 Cool Energy inverTech Manual v6.6 2020 ©... - Page 17 3 Phase inverTech Models: Page | 17 Cool Energy inverTech Manual v6.6 2020 ©...
-
Page 18: Power Supply
3. The compressor, fan coil unit and heat pump water pump all have AC- contactors and thermo relay protection. Therefore, in the process of installation and debugging, firstly measure each of the components’ current, and then adjust the current protection range of the thermo relays. Page | 18 Cool Energy inverTech Manual v6.6 2020 ©... -
Page 19: Section 3
Controller Panel Operating Controller Keys Explanation: Icons: Heating mode / Pump / Compressor / Fan / Defrost Cooling mode Buttons: Alarm / Exit / Menu & Confirm / Select / Settings Page | 19 Cool Energy inverTech Manual v6.6 2020 ©... -
Page 20: 1. On / Off Setting
Ensure unit is in Off mode first Press to access menu Use ↑ ↓ buttons to select User Mask Press to confirm selection Press ↑ ↓ Button to switch mode Press to confirm Page | 20 Cool Energy inverTech Manual v6.6 2020 ©... -
Page 21: Time / Clock Setting
Upto 3 time zones can be set over 7 weekdays. The temperature setpoints can also change based on the time zone. Ask you installation engineer for advice on settings for the best efficiencies. Page | 21 Cool Energy inverTech Manual v6.6 2020 ©... -
Page 22: Engineer Settings
= (Default 5c) (Temperature differential before restart) Stop temp diff. = (Default 2c) (Buffer range to optimise compressor frequency) 6. PID Settings: = (Default 5c) (Proportional control of frequency adjustment) Page | 22 Cool Energy inverTech Manual v6.6 2020 ©... - Page 23 (Working mode changes automatically based on ambient temperature) AutoTemp Switch Setp: = (Default 20c) (When ambient temperature goes above setpoint working mode changes) Amb Tem.diff: = (Default 4c) (Differential to change working mode) Page | 23 Cool Energy inverTech Manual v6.6 2020 ©...
-
Page 24: Input / Output Readings
9. Input / Output Readings: Press to access menu Use ↑ ↓ buttons to select I/O mask Press to confirm Use ↑ ↓ Buttons to scroll the I/O’s Page | 24 Cool Energy inverTech Manual v6.6 2020 ©... -
Page 25: Weather Compensation
Weather Compensation Your Cool Energy inverTech heat pump is equipped with intelligent weather compensation features. This means your heat pump will adapt itself automatically based on the ambient temperature outside and the system demand. So for example if the temperature outside is warmer, it will lower the flow temperature to your heating system and if its colder it will increase it automatically. - Page 26 Water Temperature Setpoint: Heating Y4 (User heating set point) Y1 (User cooling set point) Cooing Hot water Y4 (User hot water set point) Settings according to weather compensation graphs: Hot Water: Heating: Page | 26 Cool Energy inverTech Manual v6.6 2020 ©...
-
Page 27: General Operating Guide
Don’t adjust the switch, valve, controller or internal data without permission of customer support team. h. If a safety protection device is activated at start up, please contact the customer engineer or support team. Page | 27 Cool Energy inverTech Manual v6.6 2020 ©... -
Page 28: Product Protection
High condens.temp.EVD AL024 Probe S1 error EVD AL025 Probe S2 error EVD AL026 Probe S3 error EVD AL027 Probe S4 error EVD AL028 Battery discharge EVD AL029 EEPROM alarm EVD Page | 28 Cool Energy inverTech Manual v6.6 2020 ©... - Page 29 Power+ alarm:04-DCbus undervoltage AL055 Power+ alarm:05-Drive overtemp. AL056 Power+ alarm:06-Drive undertemp. AL057 Power+ alarm:07-Overcurrent HW AL058 Power+ alarm:08-Motor overtemp. AL059 Power+ alarm:09-IGBT module error AL060 Power+ alarm:10-CPU error AL061 Power+ alarm:11-Parameter default Page | 29 Cool Energy inverTech Manual v6.6 2020 ©...
- Page 30 Power+ safety alarm:08-HW fault heater c. AL090 Power+ safety alarm:09-Data comm. Fault AL091 Power+ safety alarm:10-Compr. stall detect AL092 Power+ safety alarm:11-DCbus over current AL093 Power+ safety alarm:12-HWF DCbus current Page | 30 Cool Energy inverTech Manual v6.6 2020 ©...
- Page 31 EEV alarm:High condens.temp. AL119 EEV alarm:Low suction temp. AL120 EEV alarm:Motor error AL121 EEV alarm:Self Tuning AL122 EEV alarm:Emergency closing AL123 EEV alarm:Temperature delta AL124 EEV alarm:Pressure delta AL125 EEV alarm:Param.range error Page | 31 Cool Energy inverTech Manual v6.6 2020 ©...
- Page 32 AL145 EVI alarm:High condens.temp. AL146 EVI alarm:Low suction temp. AL147 EVI alarm:Motor error AL148 EVI alarm:Self Tuning AL149 EVI alarm:Emergency closing AL150 EVI alarm:ServicePosit% err AL151 EVI alarm:ValveID pin error Page | 32 Cool Energy inverTech Manual v6.6 2020 ©...
-
Page 33: Section 4
Service & Maintenance – Service Engineer Inspection and Service Cool Energy air source heat pumps are designed and built to provide long life and performance, when installed and operated properly under normal conditions. Periodic inspections are important to keep your heat pump running safely and efficiently. -
Page 34: Owner Inspection
Homeowner Inspection Cool Energy recommends that inspections on heat pumps are done frequently, especially after abnormal weather conditions. The following basic guidelines are suggested for your inspection: Make sure the front of the unit is accessible for service. Keep the top and surrounding areas of the heat pump clear of all debris. -
Page 35: Section 5
Building Regulations Compliance Certificate will then be issued to the customer. [3] May be required for systems covered by G3 Regulations © Heating and Hot Water Industry Council (HHIC) www.centralheating.co.uk Page | 35 Cool Energy inverTech Manual v6.6 2020 ©... -
Page 36: Service Record
Signature Signature SERVICE 09 SERVICE 10 Date: Date: Engineer name: Engineer name: Company name: Company name: Telephone No: Telephone No: Operative ID No: Operative ID No: Comments: Comments: Signature Signature Page | 36 Cool Energy inverTech Manual v6.6 2020 ©... - Page 37 www.heatingshop.ie www.coolenergyshop.com...
