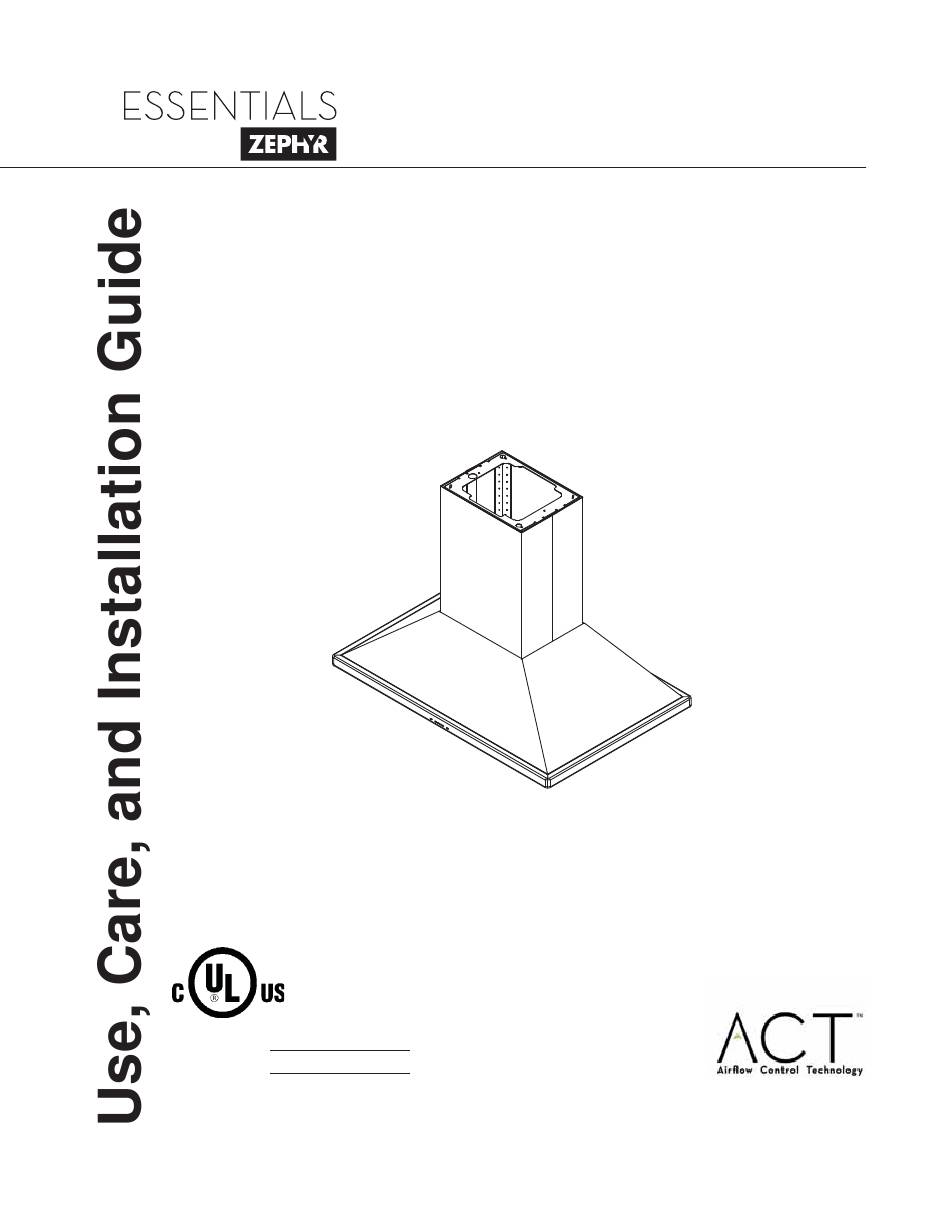

- Page 1 Siena Pro Island ZSL-E42BS ZSL-E48BS Model number: Serial Number: JAN17.0101 © Zephyr Ventilation LLC.
- Page 2 www.zephyronline.com...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ......................Mounting the Hood 9-10 ............. FEATURES & CONTROLS ICON Touch Controls ........11 MAINTENANCE ................ACT CONVERSION ..............FAN CURVE DIAGRAMS 14-15 ............
-
Page 4: To Reduce The Risk Of Fire Electric Shock, Or Injury To Persons, Observe The Following
www.zephyronline.com READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a. -
Page 5: Operation
15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. and install appropriate connector if necessary. ZSL-E42BS, ZSL-E48BS - 818 Watts, 7 Amps... -
Page 6: Hardware Package Contents
MODELS: ZSL-E42BS, ZSL-E48BS PARTS SUPPLIED (2) Top Duct Covers (1) Top Support Frame (1) Bottom Support Frame (2) Bottom Duct Covers (1) 10” round collar w/ damper (1) Collar Adaptor (1) Hood Body (2) 9W Brite Strip™ LED (2) Baffle Filters... - Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 3- 1/ 4” x 10” 5 Ft. Rect., Rect. to straight 6” round transition 6”, 7”, 8”, 10” 1 Ft.
-
Page 8: Damage - Shipment/Installation
www.zephyronline.com ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 10” to 12”. If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible. - Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid metal ductwork only. Some Ducting Options Roof Pitch w/ Flashing &...
- Page 10 www.zephyronline.com 11 15/16” 15 11/16” STANDARD min. - 32 1/2” max. - 48 1/2” Z1C-01SL 6” min. - 49” max. - 81” 28” 41 7/8” , 47 7/8” SIDE FRONT 13 1/16” 6 3/4” 5/8” 9 15/16” 12 5/8” 6 5/8” AC K/O FRONT 1”...
- Page 11 CAUTION: At least two installers are required due to the weight and size of the hood. Bottom Support Frame Top Support Frame (secures to top of blower housing) back Key Holes Ceiling Joists Wood Blocking Top Support Frame front - facing controls FIG.
- Page 12 www.zephyronline.com Top Support Frame Top Duct Covers Bottom Duct Covers Bottom Support Frame FIG. D FIG. E WARNING: Electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards. This range hood must be properly grounded.
- Page 13 Power / Delay Off Adjust 5 Speed Levels Lights On/Dim/Off Display (speed level, delay off, filter clean/change) 1 POWER / DELAY OFF BUTTON Power Button Function Button will turn power on and off for entire hood (fan and lights). - Hood will remember the last speed and light level it was turned off at. (Example: Press Button to turn off hood when on fan speed 4 and high lights.
-
Page 14: Surface Maintenance
www.zephyronline.com SURFACE MAINTENANCE: Clean the hood surface periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. - Page 15 Some local codes limit the maximum amount of CFM a range hood can move. ACT allows you to control the maximum blower CFM of select Zephyr Ventilation range hoods without the need for expensive make up air kits. codes for CFM restrictions.
- Page 16 www.zephyronline.com Blower Fan Curve Model: ZSL AC Input: 120V, 60Hz Outlet Diameter: 10in 2.80 2.70 2.60 2.50 2.40 2.30 2.20 2.10 2.00 1.90 1.80 1.70 1.60 1.50 1.40 1.30 1.20 1.10 1.00 0.90 0.80 0.70 0.60 0.50 0.40 0.30 0.20 0.10 0.00 1000 1050 1100 1150 1200 1250 1300...
- Page 18 WHIT E G R AY G R AY B R OW N B R OW N B LUE B LUE Model: ZSL-E42BS Y E LLOW Y E LLOW R E D R E D ZSL-E48BS G R E E N...
- Page 19 TROUBLESHOOTING PROCEDURES FOR SIENA PRO ISLAND Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 20 www.zephyronline.com DESCRIPTION PART# Replacement Parts Optional Accessories Extension Duct Cover Z1C-01SL Universal Make-Up Air Damper MUA010A To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368...
- Page 21 Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows:...
-
Page 22: Product Registration
PRODUCT REGISTRATION Congratulations on your Zephyr range hood purchase! Please take a moment to register your new range hood at www.zephyronline.com/registration IT’S IMPORTANT Prompt registration helps in more ways than one. Ensures warranty coverage should you need service. Ownership verification for insurance purposes.
