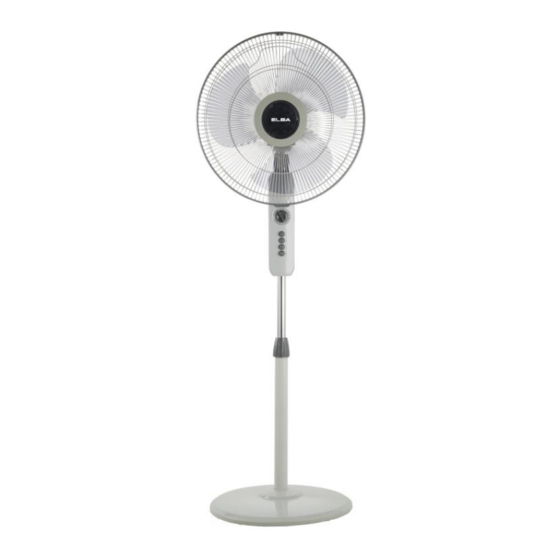

STAND FAN
MODEL: ESF-E1644TM (GR)
Owner's Manual
Please read this manual carefully
before operating your set.
Retain it for future reference.
Record model number and serial
number of the set.
See the label attached on the set
and quote this information to your
dealer when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate.

Advertisement

loading

Related Manuals for Elba ESF-E1644TM

Summary of Contents for Elba ESF-E1644TM

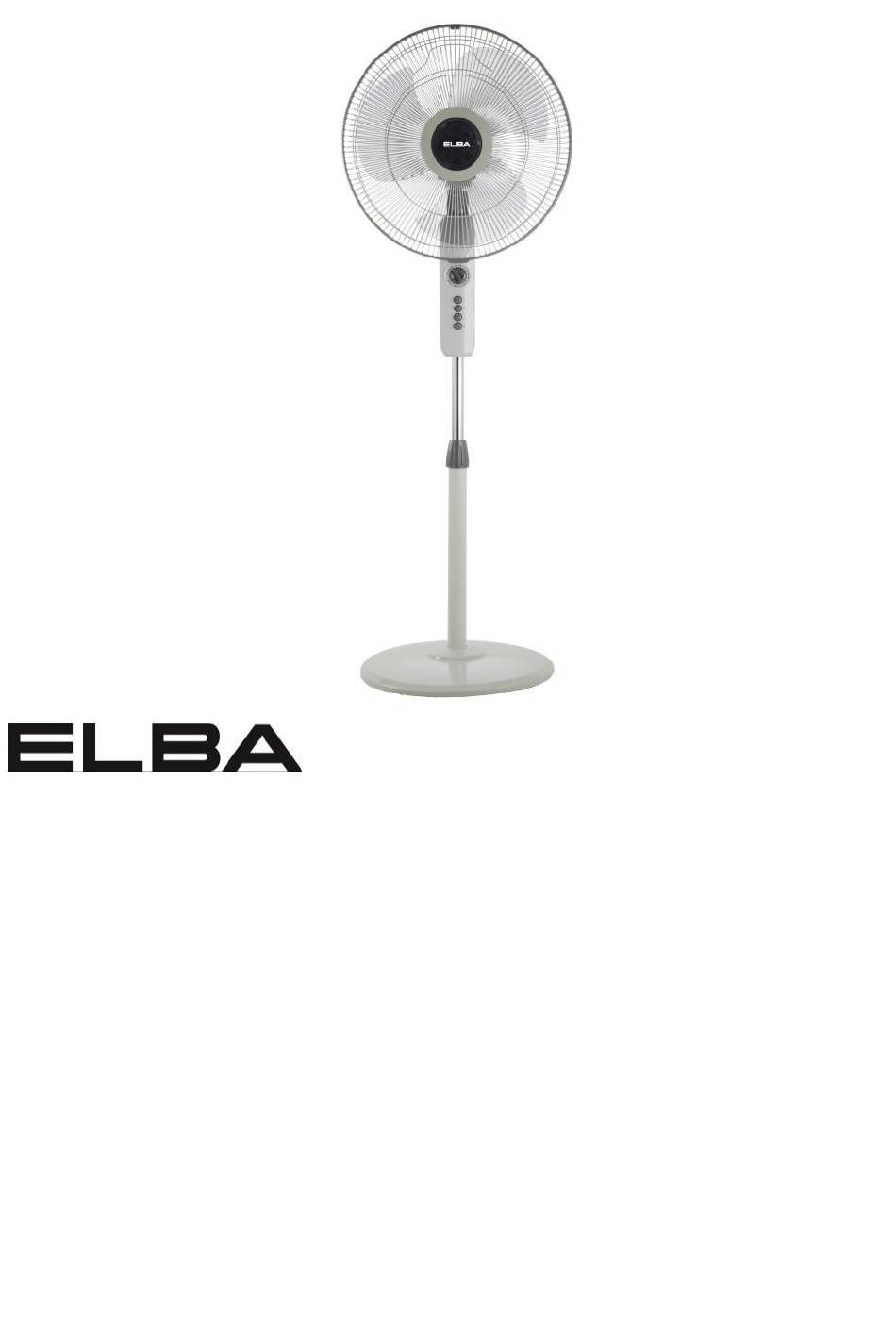

  • Page 1 STAND FAN MODEL: ESF-E1644TM (GR) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

    REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT. THIS APPLIANCE MUST BE NSTALLED ON A FLAT SURFACE. PLEASE ENSURE THE ELECTRIC SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING. Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference.

  • Page 3: Product Descriptions

    PRODUCT DESCRIPTIONS 1. Centre ring 9. OSC knob 2. Front guard 10. Timer switch 3. Guard ring 11. Speed switch 4. Spinner 12. Internal pole 5. Fan Blade 13. Height adjustment ring 6. Guard nut 14. Extension pole 7. Rear guard 15.

  • Page 4: Cleaning And Maintenance

    FAN BLADE AND GUARDS ASSEMBLY Remove the spinner & guard nut from the motor shaft. Fix the rear guard to the front motor cover, then fasten the guard nut again. (Fig 4) Fix the fan blade to the motor shaft and make sure the stopper pin is fit into groove of the blade.
  • Page 5 MAIN SPECIFICATION Voltage : 220-240V/50Hz Rated Power : 55W Fan Size : 16-inch Motor : 3-Speed NOTICE This product must not be disposed together with domestic waste. it has to be disposed at an authorized place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help to save natural resources and make sure the product is disposed in an environmental friendly and healthy way.
