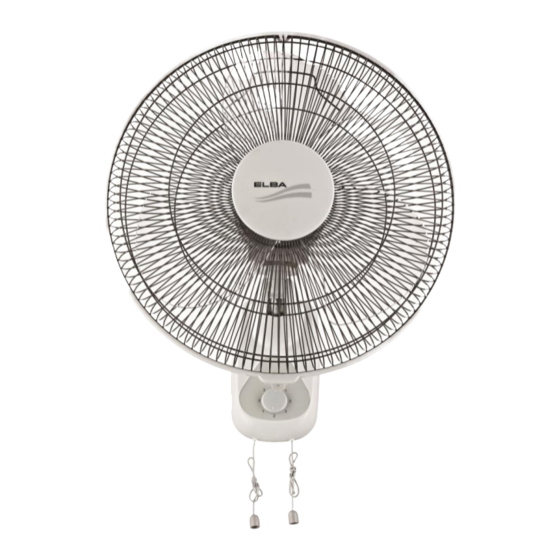

Elba EWMF-B1641(GR) User Manual

Wall fan

WALL FAN

MODEL: EWMF-B1641(GR)

Owner's Manual

Please read this manual carefully before

operating your set.

Retain it for future reference.

Record model number and serial number

of the set.

See the label attached on the set and

quote this information to your dealer

when you require service.

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Table of Contents

Need help?

Do you have a question about the EWMF-B1641(GR) and is the answer not in the manual?

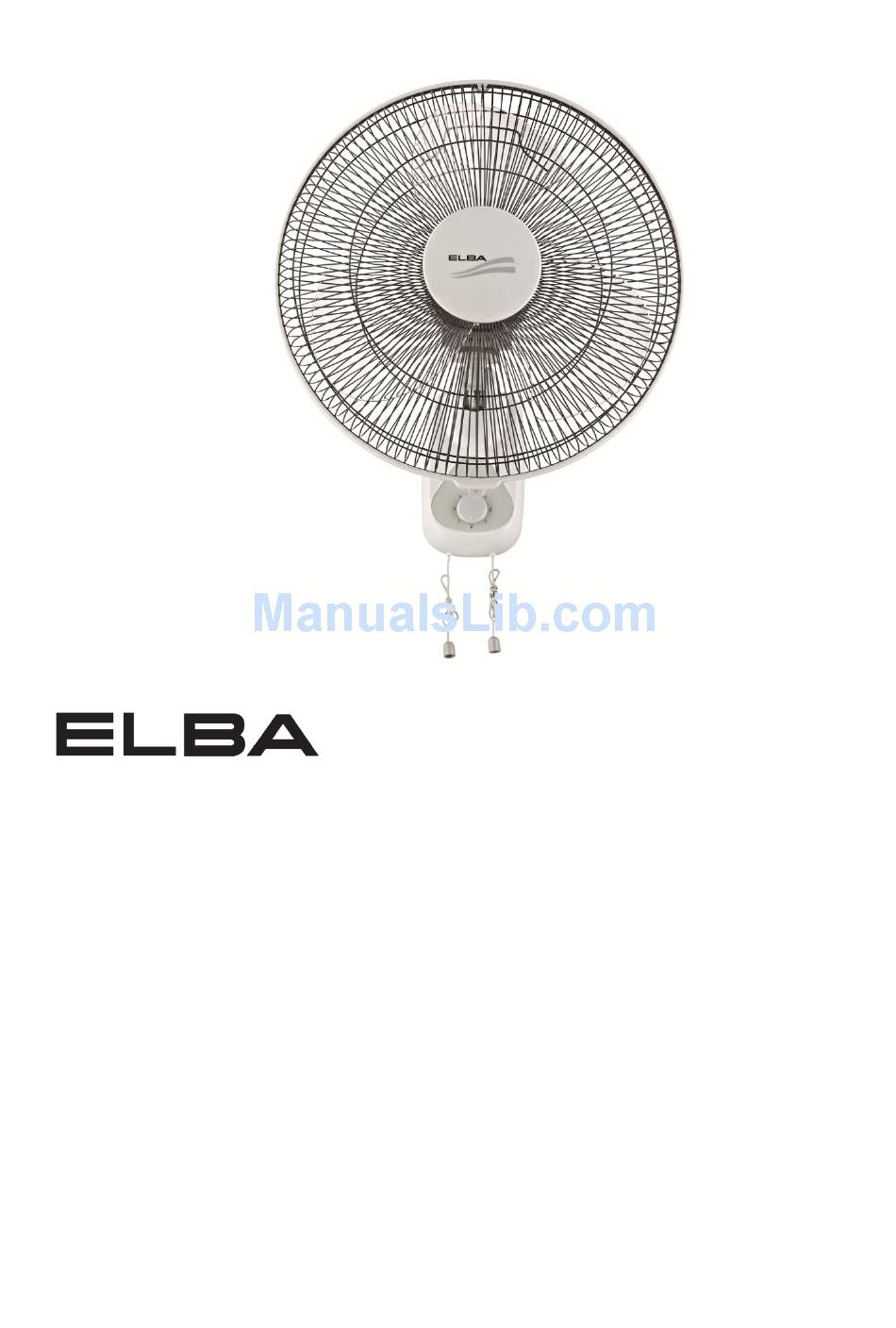

Page 1 WALL FAN MODEL: EWMF-B1641(GR) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.
Page 2 REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT. THIS APPLIANCE MUST BE INSTALLED ON A FLAT SURFACE. PLEASE ENSURE THE ELECTRIC SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING. Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference.
Page 3 PRODUCT DESCRIPTIONS Front Grille Guard Blade Assembly Guard Ring Clip Wall Mounting Bracket (Rear) 3-Speed Pull Switch Oscillating Control Switch...
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1. Remove all packaging material and wire fastener from the product. 2. Drill 3 holes on the wall with a distance complied with the hole on the wall bracket (2). 3. Press the screw anchors provided into holes. 4.
Page 5: Operating Instructions
OPERATING INSTRUCTIONS 1. Operate the relevant speed by pulling the switch for the required fan speed. ‘0’ to turn OFF, ‘1’ for Low Speed, ‘2’ for Medium Speed and ‘3’ for High Speed. 2. To make the fan head oscillate, pull the oscillating control switch. To stop the oscillation, pull the oscillating control switch again.
