Trumeter 6300 Quick Start Manual

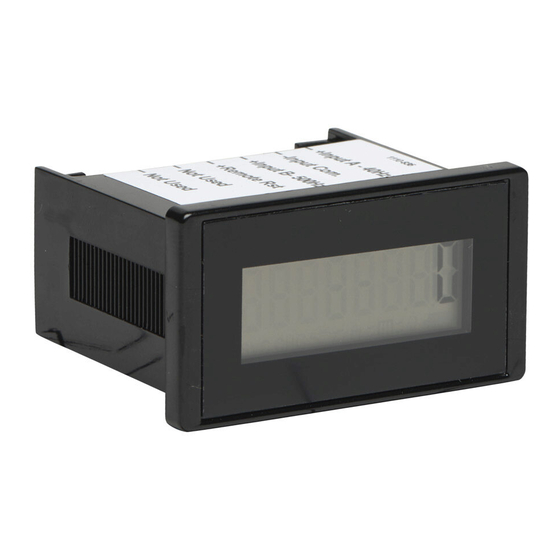

Model 6300
Electronic LCD Counter
The Model 63 range of Electronic Counters with 8 LCD digits bring together features,
including optional programmable alert or preset capability.
The front utilizes a high-contrast, reflective, 8-digit LCD with 0.32 inch [8mm] digits and seven icons, while at
the back end Dry Contact, Low Voltage DC, and High Voltage DC and AC Inputs are available.
The Model 63 family is designed with a rugged plastic housing that is qualified to NEMA 4/4X when properly
installed using the gasket supplied. In addition, the unit is compliant with CE EMC standards to EN61326:2001
for industrial applications, recognized by UL for U.S. and Canadian safety standards, and it is compliant to
European RoHS and WEEE standards.

Key Features

• Reflective LCD Display with 8 large (8mm) digits
• Choice of I/O compliment that includes:
◦ Switch Input (No voltage)
◦ Low DC Voltage (3-30VDC) <2mA
◦ High Voltage (20-300VAC or 10-300VDC)
<2mA
• Internal 10+ year battery
• NEMA 4/4X, 12, and IP66 rated
• Optional Front Panel Programming for flexible
• Redi-Alert or Preset functionality
• Optional Redi-Alert Functions:
◦ 3 Redi-Alerts are available with Front Panel
Programming option
• Optional Preset Counter Mode:
◦ Available with Front Panel Programming
option
• EMC Compliant to EN61326:2001 for industrial
environments
• CE compliant, UL and cUL recognized
• European WEEE & RoHS Compliant
