ELEVATE 120 Setup Manual

Please visit: youtube.com/VisionAidTech
...for a video on how to setup and use your new Elevate 120 sit / stand desk

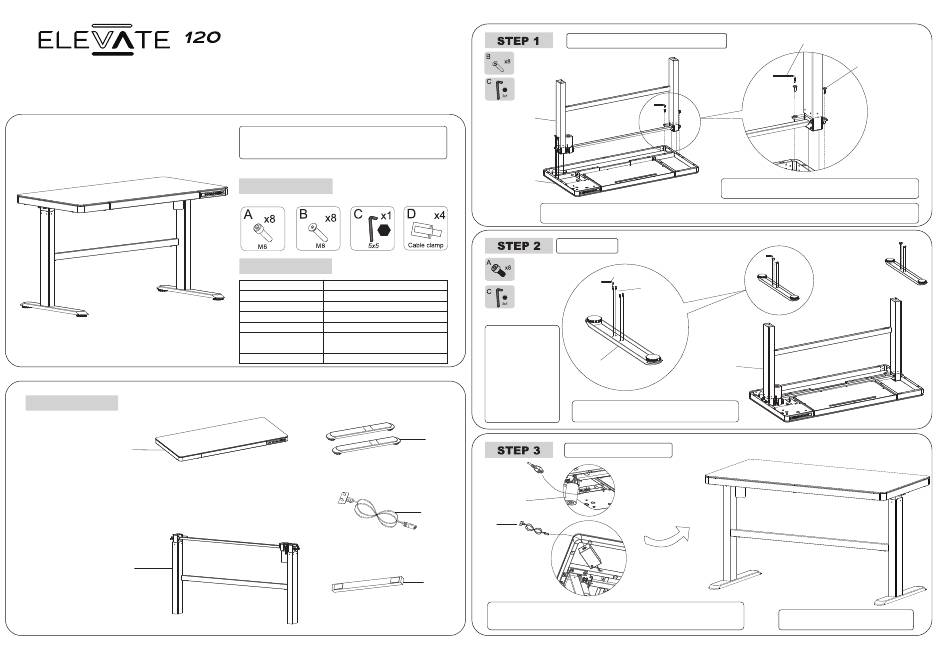

Component list
1
1. Tabletop x1
2. Lifting columns x 1
3. Feet x 2
4. Mains lead x 1
5. Wooden monitor arm
support bar
2
Setup Guide Rev 5
Applies to Matt and Glass top versions
Re-order Part #s: K1672, K1673, K1674,
K1675, K1676, K1677
Please note: The drawings below are for guidance only and may
differ slightly from the product and fittings received. Please contact
VisionAid's support department should you have any queries.
Fixings list
Technical data
Warranty 3 years
Max. Weight Capacity 50 kg (110 lbs)
Height Range 690-1170 mm (27.2 to 46.1 inches)
Drawer Stroke 230 mm (9.1 inches)
Charging Ports 2 x USB-A, 1 x USB-C 18 Watt per port
Power Supply AC In: 100/240V, 50/60Hz
DC Out: 29V 1.8A
Working Environment 0 to 40°C
Install the lifting columns (2) onto the tabletop (1)
2
1
Warning: Please take care to avoid damaging the tabletop when placing it upside down for assembly. Take extra special care when
handling the glass version and ensure nothing is dropped onto it. Damage during assembly is not covered by warranty.
Install the feet
Warning: Please take
care to avoid damaging
the tabletop during
assembly. Take extra
3
special care when
handling the glass top
version and ensure
nothing is dropped
onto it as this may
cause it to smash and
Install the feet (3) to the lifting columns (2) with the M6
this is not covered by
screws (A x 8) and tighten them with the Allen key (C)
warranty.
3
Connect the motor and power cable
Motor
4
4
5
Connect the cable from the motor (which is mounted next to the right lifting column)
to the control box. Then connect the mains cable (4) into the AC / DC power brick
(located in the corner next to the motor) and connect it to the mains.
Join the lifting columns (2) to the tabletop (1) using the 8 x M8 (B)
screws (4 on each side) and tighten with the Allen key (C).
C
A
2
Tip: The included stick-on cable clamps (D)
can be used to neaten the cable run.
C
B
