General Guidelines
• It is the user's responsibility to read and follow all instructions.
• Keep these instructions with the product at all times and review before each use.
• It is the responsibility of this product's owner to furnish the instructions to any person that borrows
or purchases the product.
• Inspect the product before use to ensure it is assembled properly and all parts are in safe working
order and free of defects.
• Never modify this product in any way.
• All circumstances cannot be addressed in these instructions. Please use common sense and prac-
tice general safety measures when using this product.
• Do not use this product for any purpose other than that for which it is intended.
• Parts and/or instructions are subject to change without notice.
Safety
• Do not exceed the capacity of 180 lbs./30 lbs. per bicycle. Do not use with more than 6 bikes.
• Be aware of dynamic loading! Sudden load movement may briefly create excess load causing
product failure.
• Keep assembly area clean and well-lit. Keep bystanders out of the assembly area.
• Do not assemble when tired or when under the influence of alcohol, drugs or medication.
• Use safety goggles and work gloves during assembly.
• Do not stand on the product.
• Do not move the stand with bicycles suspended. Remove bicycles before moving the product.
• Maintain balance. Be sure that weight is evenly distributed on the support bar at all times.
• Do not use to store powered bicycles (electric/gasoline), scooters, or motorcycles.
• This product is not a toy. Do not allow children to play with or near this item.
• Do not store in damp or wet locations. Do not expose to rain.
• Maintain product labels and nameplates. These carry important safety information.
Rev. 032720

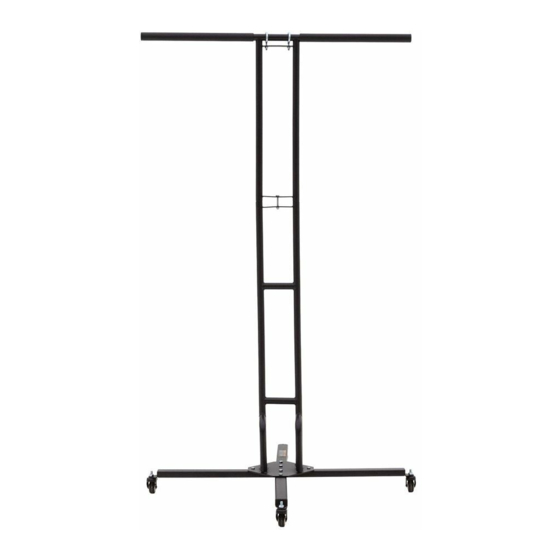

Bicycle Stand
Instructions for
Part # BIKE-STAND-6
1-888-651-3431
Page 1
Advertisement
Table of Contents
Related Manuals for ELEVATE BIKE-STAND-6
Summary of Contents for ELEVATE BIKE-STAND-6
- Page 1 Bicycle Stand Instructions for Part # BIKE-STAND-6 General Guidelines • It is the user’s responsibility to read and follow all instructions. • Keep these instructions with the product at all times and review before each use. • It is the responsibility of this product’s owner to furnish the instructions to any person that borrows or purchases the product.
- Page 2 Parts List Part # Description Support Bar M8 Lock Nut Upper Post M10 Lock Nut Base A Locking Swivel Caster Base B Lower Post M8x20 Hex Bolt M8x70 Hex Bolt Rev. 032720 Page 2 1-888-651-3431...
- Page 3 Assembly Step 1. Attach Support Bar (1) to Upper Post (3) with Support Bar Bolts and Lock Nuts (2). (See Fig- ure A.) Step 2. Attach Casters (6) to ends of Bases A and B with Lock Nuts (4). (See Figure B.) Rev.
- Page 4 Step 3. Position Base A and Base B so that bolt holes align with Lower Post (8) bolt holes. Secure with Hex Bolts (9) and Lock Nuts (2). (See Figure C.) Step 4. Attach Upper Post assembly to Lower Post assembly. Secure with Hex Bolt (10) and Lock Nut (2).
- Page 5 Hanging Bicycles WARNING! TO PREVENT SERIOUS INJURY: Hanging and removal of bicycles should only be done by adults who are physically capable of safely lifting the weight of a bicycle. CAUTION! TO PREVENT INJURY FROM TIPPING: Do not move with bicycles suspended. Remove bicycles before moving unit.
- Page 6 Product Warranty and Liability GENERAL PRODUCT WARRANTY: Products purchased from the Authorized Dealer (original place of purchase) or Merchant (“Dealer”) will be free of defects in material and workmanship at the time of receipt, and will meet the specifications stated at the place of purchase transaction or online at the Dealer’s website, under normal use and service when correctly installed, operated and maintained.
