5.11 Loading and blocking pieces for machining

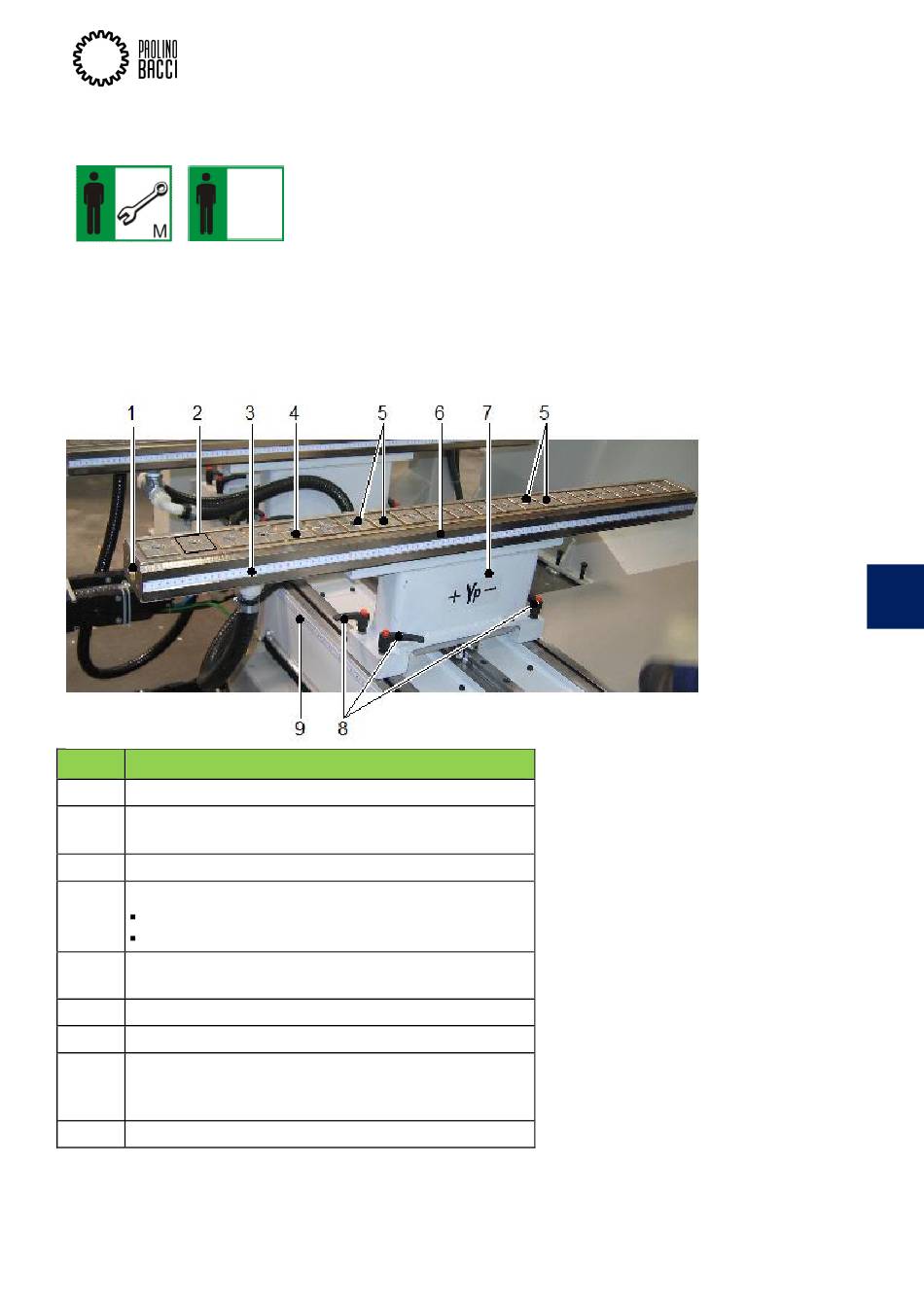

5.11.1 "TGV" variable geometry table
The variable geometry table offers various possibilities to position and block the pieces to be machined.
Based on the geometry, the shape and the weight of the piece to be machined, blocking may be
performed by means of pneumatic presses and/or suction created by the vacuum pump.
POS.
1
Connection for vacuum pump
2
50mm x 50mm chequering;
For vacuum blocking
3
Metric ruler: Y axis
4
18 holes with 2 purposes:
Fastening holes for templates
Holes for passage of the vacuum blocking air
5
4 fastening screws to anchor the resting table on the
shelf
6
Dovetail milling
7
Shelf: steel support
8
4 fastening levers
The levers are take-up levers: after having fastened
the piece, lift the lever and turn it inwards.
9
Metric ruler: X axis
