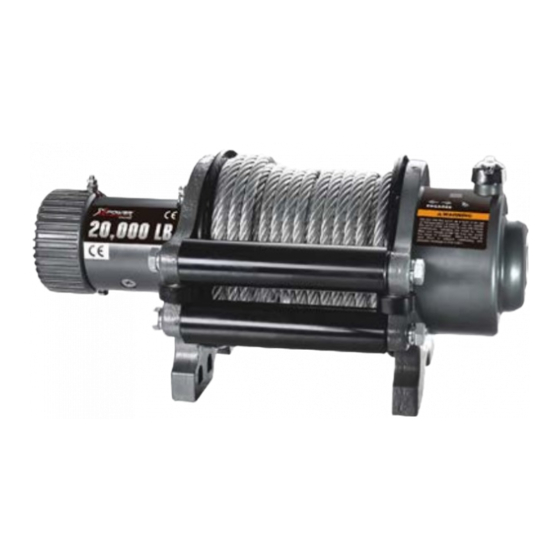

- Page 1 ELECTRIC WINCH 20000LB Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety SAVE THESE INSTRUCTIONS...
- Page 2 Thank you very much for choosing an X-power™ product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
-
Page 3: Safety Precautions
Safety Precautions Warning! MOVING PARTS ENTANGLEMENT HAZARD Failure to observe these instructions could lead to severe injury or death. To avoid injury to hands or fingers Always keep hands clear of wire rope.hook loop,hook and fairlead opening during installation,operation, and when spooling in or out. - Page 4 Always use Grade 5 or better hardware,never weld bolts and never use longerbolts than those supplied from factory. Always complete winch mounting and attachment of hook to hook loop before wiring winch before installation. Always position fairlead with WARNIING label on top. Always spool the wire rope onto the drum as indicated by the drum rotation label on the winch.Required for automatic brake to work (if winch is so equipped) and for correct installation orientation.
- Page 5 Notice AVOID WINCH AND EQUIPMENT DAMAGE Always avoid continuous side pulls which can pile up wire rope at one end of the drum.This can damage your wire rope or winch. Always ensure the clutch is fully engaged or disengaged. Never use winch to tow other vehicles.Shock loads could momentarily exceed capacity of wire rope and winch. Always use care to not damage your frame when anchoring your vehicle during a winching operation.
-
Page 6: Technical Specifications
-On hidden winches, spool in cable under power but keep hands clear. Warning: The use of any other accessory or attachment other than those recommended in the instruction manual may present a risk of personal injury. Technical Specifications Part Number: 20805002 Single line rated pull 20000LB(9072kg) Motor 7.3hp/5.5kw(12V);8.16 hp/6.0kw(24v);Series Wound... -
Page 7: Specific Operation Warnings
Overall dimensions 565X310X280MM 254x114.3mm,254x194.3mm M10X30 Outside Hexagon Mounting hole 8.8 grade 8 pieces 20000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12v 8000 10000 13000 16000 20000 Line Pull LOAD 3629 4536 5897 7258 9072 Line Speed ft/min 19.8 11.6 8.58 3.96 m/min... - Page 8 7. The use of a snatch block will aid recovery operations by providing a doubling of the winch capacity and a halving of the winching speed, and the means to maintain a direct line pull to the centre of the rollers. When double loading during stationary winching, please do use the snatch block and the winch hook should be attached to the chassis of the vehicle.
-
Page 9: Cable Installation
operation may overload the cable, the winch itself or cause damaging shock loads. 19. Shock loads when winching are dangerous! A shock load occurs when an increased force is suddenly applied to the cable. A vehicle rolling back on a slack cable may induce a damaging shock load. 20. -
Page 10: Electrical Connection
ELECTRICAL CONNECTION For normal self -recovery work, your existing electrical system is adequate. A fully charged battery and proper connections are essential. Run the vehicle engine during winching operations to keep battery charged. Pay close attention to proper electrical cable connection as follows(refer to Diagram1) 1. - Page 11 Operating Instructions The best way to get acquainted with how your winch operates is to make a few test runs before you actually need to use it .Plan your test in advance. Remember you can hear your winch as well as you can see it operate. Get to recognize the sound of a light steady pull, a heavy pull, and sounds caused by load jerking or shifting.
-
Page 12: Maintenance
5. To commence winching operation, start vehicle engine, select neutral in transmission, maintain engine speed at idle. 6. Operate the remote control switch to IN or OUT until the vehicle has been retrieved. Regularly check the winch to ensure cable is winding onto the drum evenly. Note: 1. - Page 13 conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors, which cannot be built into this product, but must be applied by the operator. Integrated Parts Diagram...
- Page 14 Description Item No. Clutch handle cap Wavy spring washer Gasket Clutch handle O-ring Fixed hexagon screw Spring washer Gear box housing Bearing sun gear Planetary gear assy 2nd Planetary gear assy Dual inner gear 1st Planetary gear assy Gear box seal gasket Hexagon screw M16x40 Spring washer zinc coated Fairlead rolling wheel (short)
-
Page 15: Replacement Parts
Replacement Parts • For replacement parts and technical questions, please contact your local distributor • Not all product components are available for replacement. The illustrations provided are a convenient reference to the location and position of parts in the assembly sequence. •... -
Page 16: Limited Warranty
Limited Warranty Forcome (Shanghai)Co., Ltd ("We'' or '"Us'') warrants to the original purchaser only ("You'' or “Your”) that the X-power product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of two year from date of purchase. The foregoing warranty is valid only if the installation and use of the product is strictly in accordance with product instructions.
