Digital temperature controllers. using basic functions (32 pages)
Summary of Contents for Omron E5CD-B
Page 1

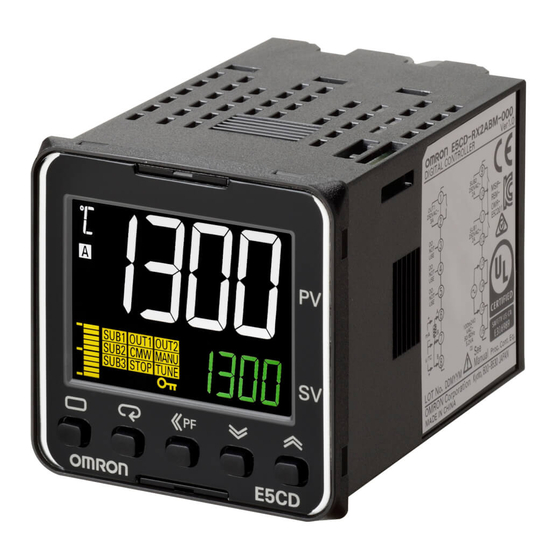

E5CD (48 × 48 mm) and E5ED (48 × 96 mm) Lineup of Push-In Plus technology that reduce wiring work. E5CD-B (48 × 48 mm) and E5ED-B (48 × 96 mm) Optimize Control by Detecting Status Changes. Easily Satisfy Both Productivity and Quality.
Page 2
Automatic Filter Adjustment). For the most recent information on models that have been • Function specialized for water-cooled extruders (Water- certified for safety standards, refer to your OMRON website. cooling Output Adjustment). • Indication data (Power ON Time, Ambient Temperature, and Refer to Safety Precautions on 43.
Page 3
E5CD/E5CD-B Model Number Legend and Standard Models Model Number Legend Models with Screw Terminal Blocks E5CD-@@ 2 @ 6 M -@@@ (Example: E5CD-RX2A6M-000) −− − − − − −−− B C D E No. of Power Model Meaning Control outputs...
Page 4
E5CD/E5CD-B Model Number Legend Models with Push-In Plus Terminal Blocks E5CD-@@ 2 @ B M -@@@ (Example: E5CD-RX2ABM-000) −− − − − − −−− B C D E No. of Power Model Meaning Control outputs Terminal Input auxiliary supply Options...
Page 5
Waterproof Packing Note: CX-Thermo version 4.66 or higher is required for the E5CD. Model CX-Thermo version 4.67 or higher is required for the E5CD-B. Y92S-P8 For the system requirements for the CX-Thermo, refer to information on the EST2-2C-MV4 on the OMRON website Note: This Waterproof Packing is provided with the Digital (www.ia.omron.com).
Page 6
Auxiliary output Output SPST-NO relay outputs: 250 VAC, E5CD: 3 A (resistive load), E5CD-B: 2 A (resistive load) specifications Electrical life: 100,000 operations, Minimum applicable load: 10 mA at 5 V (reference values) Number of inputs 2 Contact input: ON: 1 kΩ max., OFF: 100 kΩ min.
Page 7
E5CD/E5CD-B Input Ranges Thermocouple/Platinum Resistance Thermometer (Universal inputs) Sensor Platinum resistance Infrared temperature Thermocouple type thermometer sensor Sensor 10 to 60 to 115 to 140 to Pt100 JPt100 C/W PLII 70°C 120°C 165°C 260°C specification 2300 2300 1800 1800 1700...
Page 8
E5CD/E5CD-B Alarm Types Each alarm can be independently set to one of the following 17 alarm types. The default is 2: Upper limit. (see note.) Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified.
Page 9
E5CD/E5CD-B *1. With set values 1, 4 and 5, the upper and lower limit values can be set independently for each alarm type, and are expressed as “L” and “H.” *2. Set value: 1, Upper- and lower-limit alarm Case 2...
Page 10
E5CD: CX-Thermo version 4.66 or higher Setup Tool E5CD-B: CX-Thermo version 4.67 or higher E5CD/E5CD-B top panel: An E58-CIFQ2 USB-Serial Conversion Cable is used to connect to a USB port on Setup Tool port the computer.*5 cULus: UL 61010-1/CSA C22.2 No.61010-1,...
Page 11
USB-Serial Conversion Cable Communications Functions Windows XP/Vista/7/8/8.1/10 *1 Applicable OS You can use the memory in the PLC to read and write E5CD/E5CD-B parameters, start and stop operation, Applicable CX-Thermo version 4.66 or higher etc. The E5CD/E5CD-B automatically performs software (E5CD-B: version 4.67 or higher)
Page 13
Terminal type (for driving SSR) 12 VDC, 21 mA The E5CD-B is set for a K-type thermocouple (input type = 5) by Linear current output Auxiliary outputs 1, 2 default. An input error (s.err) will occur if the input type setting does...
Page 14
E5CD/E5CD-B Nomenclature E5CD/E5CD-B Front panel Temperature unit Operation indicators No. 1 display PV or specified parameter Top View No. 2 display SP or specified parameter value Bar display Use the U D Keys to set the parameter. Press O Key once to go to Adjustment Level.
Page 15
E5CD/E5CD-B Accessories (Order Separately) USB-Serial Conversion Cable E58-CIFQ2 (2110) 1510 LED (RD) USB connector (type A plug) Serial connector LED (PWR) LED (SD) Terminal Covers (Cannot be used on a Push-In Plus terminal block type) E53-COV17 48.8 Terminal Covers (Cannot be used on a Push-In Plus terminal block type) E53-COV23 (Three Covers provided.)
Page 16
E5CD/E5CD-B Current Transformers E54-CT1 Thru-current (Io) vs. Output Voltage (Eo) (Reference Values) Filler E54-CT1 or E54-CT1L 5.8 dia. (epoxy) Maximum continuous heater current: 50 A (50/60 Hz) Case ± Number of windings: ± Ω Winding resistance: 10.5 100V Frequency: 50 Hz ∞...
Page 17
Filler 12 dia. (epoxy) E54-CT3 or E54-CT3L Case Maximum continuous heater current: 120 A (50/60 Hz) (PBT) (Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.) 40 × 40 Number of windings: 400±2 Ω Winding resistance: 8±0.8...
Page 18
E5CD/E5CD-B Adapter Y92F-45 Note: 1. Use this Adapter when the Front Panel has already been prepared for the E5B@. 2. Only black is available. 3. You cannot use the E58-CIFQ2 USB-Serial Conversion Cable if you use the Y92F-45 Adapter. To use the USB-Serial Conversion Cable to make the settings, do so before you mount the Digital Temperature Controller in the panel.
Page 19
E5CD/E5CD-B Waterproof Cover Mounting Adapter Y92F-49 Y92A-48N 21.9 The Mounting Adapter is provided with the Digital Temperature Controller. Order this Adapter separately if it becomes lost or damaged. 87.7 79.2 67.6 28.9 Front Cover Front Cover Y92A-48D Y92A-48H Note: This Front Cover cannot be used if the Waterproof Packing is This Front Cover is hard type.
Page 20
For the most recent information on models that have been Output ON/OFF Count). certified for safety standards, refer to your OMRON website. • Basic performance is same as the E5C standard models. • Draw-out structure for easy maintenance. (Screw terminal Refer to Safety Precautions on 43.
Page 21
E5ED/E5ED-B Model Number Legend and Standard Models Model Number Legend Models with Screw Terminal Blocks E5ED-@@ 4 @ 6 M -@@@ (Example: E5ED-RX4A6M-000) −− − − − − −−− B C D E No. of Power Model Meaning Control outputs Terminal Input auxiliary...
Page 22
E5ED/E5ED-B Model Number Legend Models with Push-In Plus Terminal Blocks E5ED-@@ 4 @ B M -@@@ (Example: E5ED-RX4ABM-000) −− − − − − −−− B C D E No. of Power Model Meaning Control outputs Terminal Input auxiliary supply Options 1 and 2 type type...
Page 23
CX-Thermo version 4.67 or higher is required for the E5ED-B. For the system requirements for the CX-Thermo, refer to Note: This Waterproof Packing is provided with the Digital information on the EST2-2C-MV4 on the OMRON website Temperature Controller. (www.ia.omron.com). Waterproof Cover...
Page 24
E5ED/E5ED-B Specifications Ratings A in model number: 100 to 240 VAC, 50/60 Hz Power supply voltage D in model number: 24 VAC, 50/60 Hz; 24 VDC Operating voltage range 85% to 110% of rated supply voltage Models with option selection of 000: 6.6 VA max. at 100 to 240 VAC, and 4.1 VA max. at 24 VAC or 2.3 W max. Power consumption at 24 VDC All other models: 8.3 VA max.
Page 25
E5ED/E5ED-B Input Ranges Thermocouple/Platinum Resistance Thermometer (Universal inputs) Sensor Platinum resistance Infrared temperature Thermocouple type thermometer sensor Sensor 10 to 60 to 115 to 140 to Pt100 JPt100 PLII 70°C 120°C 165°C 260°C specification 2300 2300 1800 1800 1700 1700 1700 1600 1500...
Page 26
E5ED/E5ED-B Alarm Types Each alarm can be independently set to one of the following 17 alarm types. The default is 2: Upper limit. (see note.) Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified. Note: In the default settings for models with HB or HS alarms, alarm 1 is set to a heater alarm (HA) and the Alarm Type 1 parameter is not displayed.
Page 27
E5ED/E5ED-B *1. With set values 1, 4 and 5, the upper and lower limit values can be set independently for each alarm type, and are expressed as “L” and “H.” *2. Set value: 1, Upper- and lower-limit alarm Case 2 Case 1 Case 3 (Always ON) H<0, L<0...
Page 28
E5ED/E5ED-B Characteristics Thermocouple: (±0.3% of indication value or ±1°C, whichever is greater) ±1 digit max. *1 Indication accuracy Platinum resistance thermometer: (±0.2% of indication value or ±0.8°C, whichever is greater) ±1 digit max. (at the ambient temperature of Analog input: ±0.2% FS ±1 digit max. 23°C) CT input: ±5% FS ±1 digit max.
Page 29
E5ED/E5ED-B EN 61326-1 *6 EMI: Radiated Interference Electromagnetic Field Strength: EN 55011 Group 1, class A Noise Terminal Voltage: EN 55011 Group 1, class A EN 61326-1 *6 EMS: ESD Immunity: EN 61000-4-2 Electromagnetic Field Immunity: EN 61000-4-3 Burst Noise Immunity: EN 61000-4-4 Conducted Disturbance Immunity: EN 61000-4-6...
Page 30
E5@D Series max. (Up to 16 for the FX3) communications Applicable PLCs USB interface OMRON PLCs CS Series, CJ Series, CP Conforms to USB Specification 2.0. standard Series, NJ Series, or NX1P Mitsubishi Electric PLCs MELSEC Q Series, L Series,...
Page 31
E5ED/E5ED-B External Connections E5ED (Screw Terminal Blocks) E5ED-@@ 4 @ 6 M - @ @ @ Control output 1 Control output 2 Auxiliary outputs 1, 2, 3, 4 Relay output Relay output Relay output (1) (2) (3) (4) (5) 250 VAC, 5 A (resistive load) 250 VAC, 5 A 250 VAC, 2 A ↑...
Page 32
E5ED/E5ED-B E5ED-B (Push-In Plus Terminal Blocks) E5ED-@@ @ @ B M - @ @ @ Control output 1 Control output 2 Auxiliary outputs 1, 2, 3, 4 Relay output Relay output Relay output (1) (2) (3) (4) (5) 250 VAC, 5 A (resistive load) 250 VAC, 5 A Models with 4 auxiliary outputs ↑...
Page 33
E5ED/E5ED-B Isolation/Insulation Block Diagrams Sensor input and CT input Communications and event inputs Voltage output (for driving SSR), linear current output, and transfer output Power supply Relay output 1 Relay output 2 Auxiliary outputs 1, 2 Auxiliary outputs 3, 4 : Reinforced insulation : Functional isolation Note: Auxiliary outputs 1 and 2 and auxiliary outputs 3 and 4 are not insulated.
Page 34
E5ED/E5ED-B Dimensions (Unit: mm) Controllers E5ED (66) Waterproof Packing Mounting Adapter Terminal Covers (Accessory, Y92S-P9 (Accessory, Y92F-51 (Accessory, E53-COV24 (also available for (also available for (also available for ordering separately)) ordering separately)) ordering separately)) E5ED-B (71.4) 67.4 Waterproof Packing Mounting Adapter (Accessory, Y92S-P9 (Accessory, Y92F-51 (also available for...
Page 35
E5ED/E5ED-B Accessories (Order Separately) USB-Serial Conversion Cable E58-CIFQ2 (2110) 1510 LED (RD) USB connector (type A plug) Serial connector LED (PWR) LED (SD) Conversion Cable E58-CIFQ2-E Conversion Cable Connected to the E58-CIFQ2 USB-Serial Conversion Cable (2,110) (1,510) 1,510 E58-CIFQ2 (Order separately) Conversion Cable Note: Always use this product together with the E58-CIFQ2.
Page 36
E5ED/E5ED-B Waterproof Cover Y92A-49N (for DIN 48 × 96) 21.9 131.7 67.6 28.9 Draw-out Jig (Cannot be used on a Push-In Plus terminal block type) Y92F-59 Use this Draw-out Jig to remove the interior body of the Digital Temperature Controller from the case to perform maintenance without removing the terminal wiring.
Page 37
E5ED/E5ED-B Current Transformers E54-CT1 Thru-current (Io) vs. Output Voltage (Eo) (Reference Values) Filler E54-CT1 or E54-CT1L 5.8 dia. (epoxy) Maximum continuous heater current: 50 A (50/60 Hz) Case ± Number of windings: ± Ω Winding resistance: 10.5 100V Frequency: 50 Hz ∞...
Page 38
Filler 12 dia. (epoxy) E54-CT3 or E54-CT3L Case Maximum continuous heater current: 120 A (50/60 Hz) (PBT) (Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.) 40 × 40 Number of windings: 400±2 Ω Winding resistance: 8±0.8...
Page 39
E5CD/E5ED Operation Setting Levels Diagram This diagram shows all of the setting levels. To move to the advanced function setting level and calibration level, you must enter passwords. Some parameters are not displayed depending on the protect level setting and the conditions of use. Control stops when you move from the operation level to the initial setting level.
Page 40
E5CD/E5ED Operation Parameter Flow This section describes the parameters set in each level. Pressing the M (Mode) Key at the last parameter in each level returns to the top parameter in that level. Hold down the M Key to move through the parameters in reverse. Some parameters may not be displayed depending on the model and other settings.
Page 41
E5CD/E5ED Monitor/Setting Item Level Monitor/Setting Monitor/Setting Monitor/Setting Monitor/Setting Monitor/Setting Item Display 1 Item Display 4 Item Display 5 Item Display 3 Item Display 2 Note: The monitor/setting items to be displayed is set in the Monitor/Setting Item 1 to 5 parameters (advanced function setting level). Press the O Key for at least 1 s.
Page 42
E5CD/E5ED Error Displays (Troubleshooting) When an error occurs, the No. 1 display or No. 2 display shows the error code. Take necessary measure according to the error code, referring the following table. Display Name Meaning Action Operation The input value exceeded the control Check the wiring for input to be sure After the error occurs and it is range.*...
Page 43
E5CD/E5ED Safety Precautions Be sure to read the precautions for all E5CD/E5ED models in the website at: http://www.ia.omron.com/. Warning Indications If the output relays are used past their life expectancy, Indicates a potentially hazardous contact fusing or burning may occasionally occur.
Page 44
E5CD/E5ED 9. Make sure that the rated voltage is attained within 2 seconds of Precautions for Safe Use turning ON the power using a switch or relay contact. If the voltage is applied gradually, the power may not be reset or output Be sure to observe the following precautions to prevent operation malfunctions may occur.
Page 45
E5CD/E5ED 26.Do not place heavy objects on top of the USB-Serial Conversion Precautions for Correct Use Cable, bend the Cable beyond its natural bending limit, or pull on the Cable. Doing so may result in failure. Service Life 27.Make sure that the indicators on the USB-Serial Conversion Cable 1.
Page 46
Digital Temperature Controller. Waterproofing is not possible when group mounting several Digital Temperature Controllers. 2. Insert the E5CD/E5CD-B into the mounting hole in the panel. Enlarged Illustration of Terminal Section 3. Push the Adapter from the terminals up to the panel, and temporarily fasten the E5CD/E5CD-B.
Page 47
E5CD/E5ED Drawing Out the Interior Body of the Digital 3. Insert the new interior body into the rear case. 1. When inserting the interior body back into the rear case, mount the Temperature Controller to Replace It sealing rubber in the position shown below, make sure the PCBs You can use the Draw-out Jig to remove the interior body of the Digital are parallel to each other, and press the interior body toward the Temperature Controller from the case to perform maintenance...
Page 48
E5CD/E5ED Precautions when Wiring Connecting Wires with Ferrules and Solid Wires Insert the solid wire or ferrule straight into the terminal block until the • Separate input leads and power lines in order to prevent external end strikes the terminal block. noise.
Page 49
10 AI 0,75-8 H0.75/14 216-202 0.75 SDI 0.4✕2.5✕75 Weidmuller 12 AI 0,75-10 H0.75/16 216-242 * OMRON's exclusive purchase model XW4Z-00B is available to 10 AI 1-8 H1.0/14 216-203 1/1.25 18/17 order as SZF 0-0,4✕2,5 (manufactured by Phoenix Contact). 12 AI 1-10 H1.0/16...
Page 50
Temperature Sensors for Packaging Machines Accurately Measure Seal Temperature. Temperature Sensors for Packaging Machines. • Heat resistance (sleeve: 0 to 260°C) and direct installation to heat bars. • Greater flexibility in the movable section (models with 30 cores). • Protective tubing diameter of 1 mm with ground for high- speed response.
Page 51
Special models for Packaging Machines Model Number Legend The type of protective tubing length, and lead length can be specified as shown below. E 5 2 - C A @ A @ D = 1 Code Element type Protective tubing length L (cm) Specify the length in centimeters within the following range: Unit (cm) Diameter (D)
Page 53
Installation Method A Temperature Sensor for Packing Machines has a diameter of 1.0 mm. To measure the temperature close to the seal surface, mount the Sensor as close as possible to the surface. The following installation methods are assumed. Example 1: Groove for Temperature Sensor created in heating plate and Temperature Sensor secured with mounting brackets.
Page 55
Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements.
