KN04-00216A (Ver.1.0)
1. Turn the Power Switch Off at the rear of the Printer.
Power Switch
2. As shown below, press the right side of the Cover STD in the direction
indicated by the yellow arrow to remove it
※ You can also remove it by pressing the left side in the same manner.
Cover STD
3. Insert the Peeler Wire into the Wire Hole.
Peeler Wire
4. With the Wire inserted, fit the right Boss of the Peeler to the Boss Hole as
shown below. Also, fit the left one to the Boss Hole.
5. Remove the Cover Roller L&R and fit the Peeler Bars to the square-shaped
sockets (red circles) by matching each Bar to the corresponding side. Then,
reinstall the removed Cover Roller L&R.
※ Be careful to install the Peeler Bar correctly. Otherwise, the Peeler will not work
properly.
Front
Off
Wire Hole
Boss
Boss Hole
Cover Roller L&R
Peeler Bar
Front
How to Mount Peeler

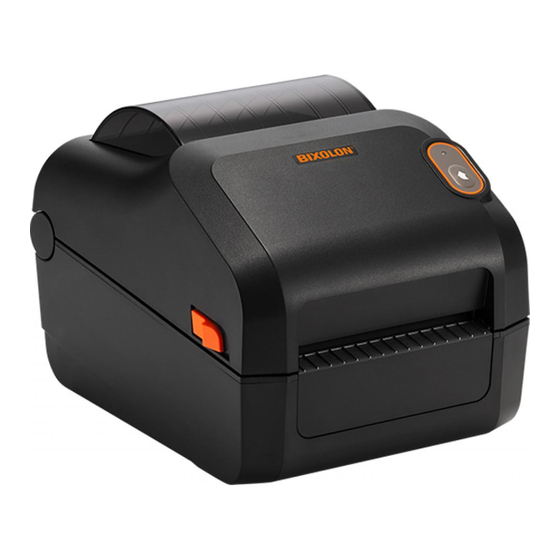

XD/XQ (4inch Model) Series
6. Turn the Switch On as shown below. Then, engage the Peeler Levers with the
sockets (yellow circles) to close so that they make a clicking sound.
※ If the Levers are not engaged correctly, try again after repeating steps 2 and 3.
On
7. Make the bottom of the Printer face the front. Press the Hooks (red circles)
toward the inner direction to remove the Cover Dip and shape the Peeler Wire
as shown below.
※ Be careful to avoid tangling with other Wires when shaping.
Cover DIP
8. Insert the Peeler Wire to the Peeler Connector (yellow square) in the correct
direction.
Peeler Connector
9. Reinstall the Cover Dip that was removed in step 7. Then, connect the
power supply and turn the power on to check if the Peeler Sensor LED is
green when turned on.
Cover DIP
Peeler Sensor
※ See the User Manual for how to supply paper.
Peeler Lever
Switch
Peeler Wire
Auto Cutter Connector
Auto Cutter GND Connector
