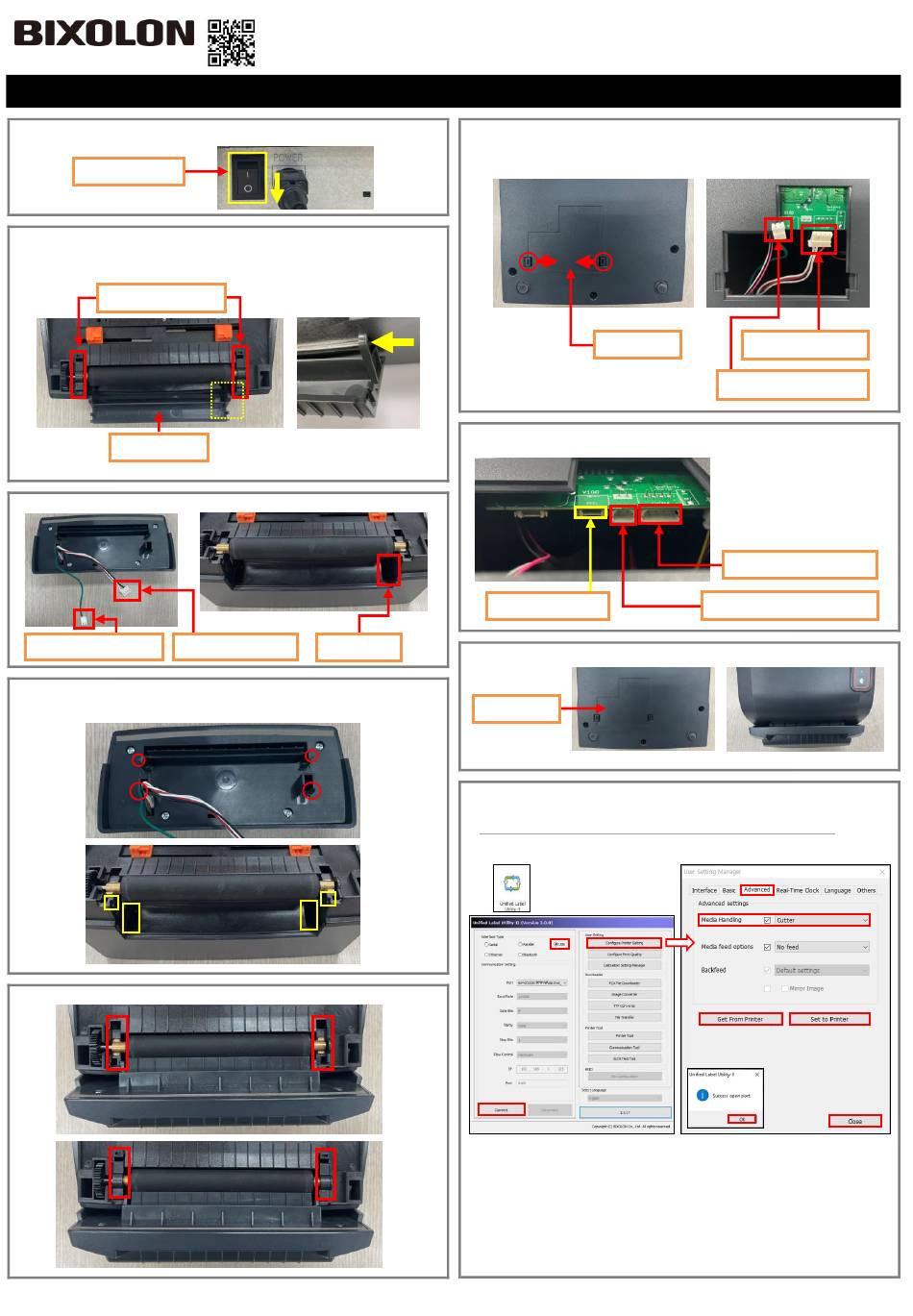

BIXOLON XD Series How To Mount

KN04-00217A (Ver.1.0)
1. Turn the Power Switch Off at the rear of the Printer.
Power Switch
2. Remove the Cover Roller L&R and press the right side of the Cover STD
in the direction indicated by the yellow arrow to remove it.
※ You can also remove it by pressing the left side in the same manner.
Cover Roller L&R
Cover STD
3. Insert the Auto Cutter Wire and Auto Cutter GND wire into the Wire Hole.
Auto Cutter GND Wire
4. Engage the Hooks (red circles) with the square-shaped sockets
(yellow squares) in the order from top to bottom.
※ Be careful that the Wire does not get stuck.
5. Reassemble the Cover Roller L&R that was removed in step 2.
Off
Auto Cutter Wire Wire Hole
How to Mount Auto Cutter
XD/XQ(4inch Model) Series
6. Place the bottom of the Printer face the front. Press the Hooks (red circles)
toward the inner side to remove the Cover DIP. Then, shape the Auto Cutter
Wire and Auto Cutter GND Wire as shown below.
※ Be careful to avoid tangling with other wires when shaping.
.
7. Insert the Auto Cutter Wire and Auto Cutter GND Wire into the Auto Cutter
Connector and Auto Cutter GND Connector (red square) in the correct direction.
Peeler Connector
8. Reassemble the Cover DIP that was removed in step 6.
Cover DIP
9. In order to operate the Auto Cutter, the settings must be changed through the utility.
Access the Bixolon webpage (www.bixolon.com) and download the Unified Label
Utility.
Connect the communication cable (USB) and Turn the Printer power On.
Then, change the settings in the following order.
①
⑤
②
③
① Launch 'Unified Label Utility'
② 'USB' Click!
③ 'Connect' Click!
④ 'OK' Click!
⑤ 'Configure Printer Setting' Click!
Cover DIP Auto Cutter Wire
Auto Cutter GND Wire
Auto Cutter Connector
Auto Cutter GND Connector
⑥
⑧
⑦
④
⑥ 'Advanced' Click!
⑦ 'Get From Printer' Click!
⑧ Media Handling 'Cutter' Setting!
⑨ 'Set to Printer' Click!
⑩ 'Close' Click!
⑨
⑩
