Outdoor Square Flat Fire Pit Discs
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
MODELS
Description
25" Square Flat Disc (MT system)
25" Square Flat Disc (TMSI system)
25" Square Flat Disc (TFS system)
30" Square Flat Disc (MT system)
30" Square Flat Disc (TMSI system)
30" Square Flat Disc (TFS system)
34" Square Flat Disc (MT system)
34" Square Flat Disc (TMSI system)
34" Square Flat Disc (TFS system)
40" Square Flat Disc (MT system)
40" Square Flat Disc (TMSI system)
40" Square Flat Disc (TFS system)
46" Square Flat Disc (MT system)
46" SquareFlat Disc (TMSI system)
46" Square Flat Disc (TFS system)
INSTALLATION PRECAUTION:
MH# 60069
Propane
FPB-25SFBSMT-P
FPB-25SFBSTMSI-P
FPB-25SFBSTFS-P
FPB-30SFBSMT-P
FPB-30SFBSTMSI-P
FPB-30SFBSTFS-P
FPB-34SFBSMT-P
FPB-34SFBSTMSI-P
FPB-34SFBSTFS-P
FPB-40SFBSMT-P
FPB-40SFBSTMSI-P
FPB-40SFBSTFS-P
FPB-46SFBSMT-P
FPB-46SFBSTMSI-P
FPB-46SFBSTFS-P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Firegear Outdoors FPB-25SFBSMT-N and is the answer not in the manual?

Questions and answers

Summary of Contents for Skytech Firegear Outdoors FPB-25SFBSMT-N

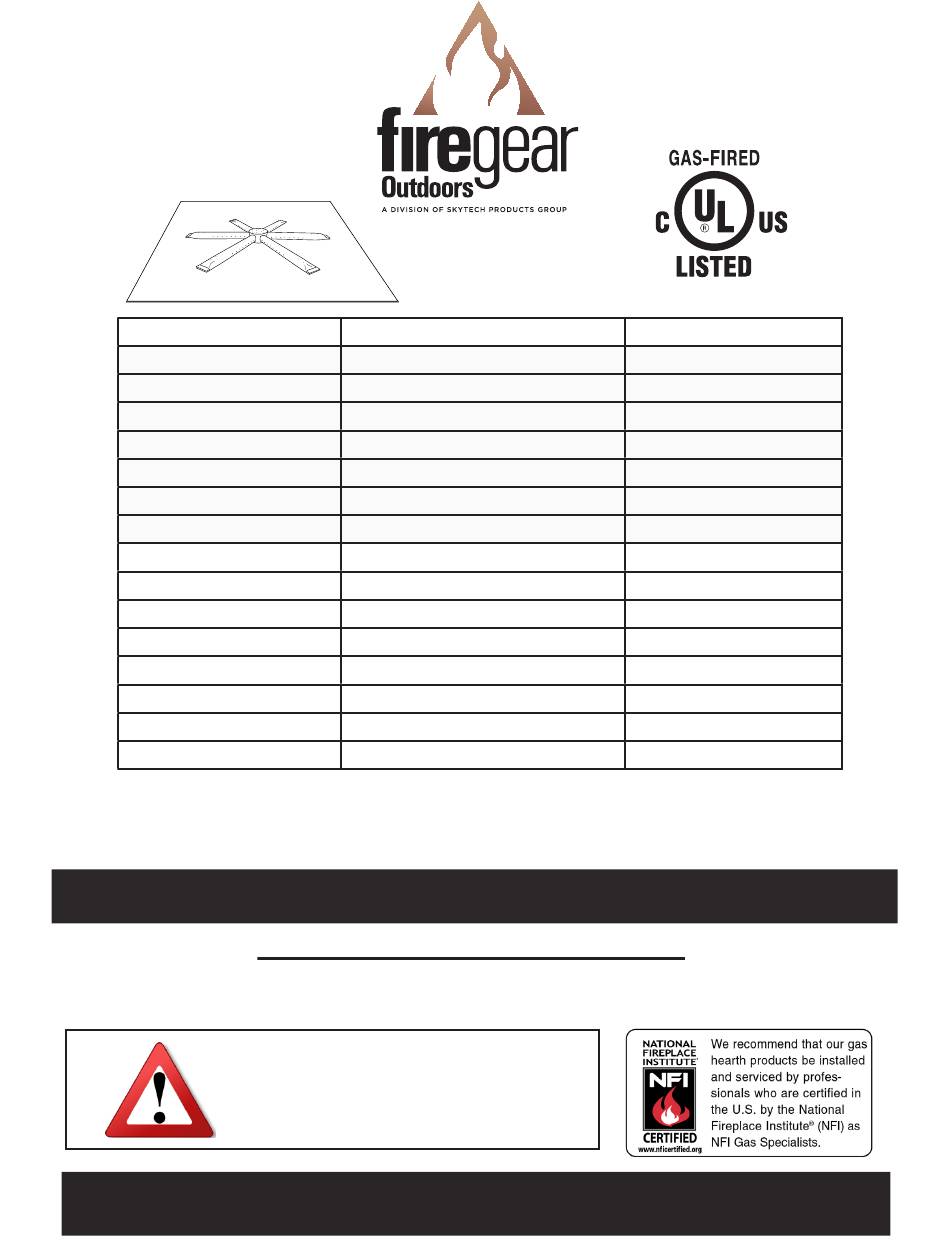

  • Page 1 MODELS MH# 60069 Natural Gas Description Propane FPB-25SFBSMT-N FPB-25SFBSMT-P 25” Square Flat Disc (MT system) FPB-25SFBSTMSI-N FPB-25SFBSTMSI-P 25” Square Flat Disc (TMSI system) FPB-25SFBSTFS-N FPB-25SFBSTFS-P 25” Square Flat Disc (TFS system) FPB-30SFBSMT-N FPB-30SFBSMT-P 30” Square Flat Disc (MT system) FPB-30SFBSTMSI-N FPB-30SFBSTMSI-P 30”...
  • Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or use gasoline or other...
  • Page 3: Table Of Contents

    CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm.
  • Page 4: Specifications

    SPECIFICATIONS Model: Model: Natural Gas (NG) Propane Gas (LP) Disc Min.Install Ground Side Combustible Combustible Depth Diameter Opening Level Wall Ceiling Floor ⁄ ” FPB-25SFBSMT-N FPB-25SFBSMT-P 25” x 25” ” 18” 19” 69” 18” ⁄ ” FPB-25SFBSTMSI-N FPB-25SFBSTMSI-P 25” x 25” ”...
  • Page 5: Btu Specifications

    SPECIFICATIONS Model: NG Factory NG Btu’s NG Btu’s Model: LP Factory Btu’s LP Btu’s Orifice High Orifice High Round Disc NG Round Disc LP FPB-25SFBSMT-N 65,000 FPB-25SFBSMT-P 65,000 FPB-25SFBSTMSI-N 65,000 FPB-25SFBSTMSI-P 65,000 FPB-25SFBSTFS-N 80,000 45,000 FPB-25SFBSTFS-P 79,000 47,400 FPB-30SFBSMT-N 65,000 FPB-30SFBSMT-P 65,000 FPB-30SFBSTMSI-N...
  • Page 6: Gas Pipe Sizing Chart

    GAS PIPE SIZING CHART REFERENCE GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640...
  • Page 7: Preparation For Non-Combustible Structure

    WARNING: Proper clearances from combustible materials must be maintained from all sides, top and bottom of this appliance. Use the specifications listed on pages 4 and 5 for proper clearance to combustibles. PREPARING A NON-COMBUSTIBLE STRUCTURE The fire pit can be installed on a flat, stable surface, away from any combustible materials. Install fire pit on any level, outdoor non-combustible, flat stable surface or a combustible floor according to the clearances specified in this manual.
  • Page 8: Installation Into An Approved Enclosure

    INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath area should be non-combustible or a flat level combustible surface according to the clearances specified in this manual.. 2.
  • Page 9: Section A Match Light (Mt) Installation

    Section A Match Light (MT) Installation Flat disc’s are typically used with landscape blocks. The illustrations below show examples of possible installations. Fig’s 4, 5, and 6 show the use of the flex frame system which provides the ability to easily remove the disc if necessary. f i r e - p a r t s .
  • Page 10 INSTALLING BURNER ORIFICE (OAS) Locate the burner nipple underneath the burner pan. Ensure the nipple from on Burner Pan the spur burner has gas rated Teflon tape Lock Nut wrapped around the threads. Thread the OAS (orifice air shutter) on to the nipple of the burning spur clockwise manner.
  • Page 11 Spur Burner Non-Combustible Enclousure Flat Disc Key Valve Supply E-Stop PUSH TO STOP TURN TO START HOURS Key valve and flexible gas line are supplied; gas shut-off is not, but available in accessories page. Flex lines with flared fittings do not require Teflon tape or pipe compound.
  • Page 12: Operation & Lighting

    OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water.
  • Page 13: Mt Troubleshooting/Maintenance

    FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4.
  • Page 14: Expanded Mt Model View

    Expanded View of Match Throw (MT) Fire Pits Fire Pit Pan Spur Burner / ” Washer Brass Nut OASNG# (Burner Ori ce) U3-8D-S (Fitting) Note: Use joint compound or f i r e - p a r t s . c o m Te on tape resistant to all T200-9898-46 gasses on all male NPT...
  • Page 15: Section B Thermocouple Manual Safety (Tmsi) Installation

    Section B Thermocouple Manual Safety (TMSI) Installation Flat disc’s are typically used with landscape blocks. The illustrations below show examples of possible installations. Figs. 14, and 15 show the use of the flex frame system which provides the ability to reasily emove the disc if necessary. f i r e - p a r t s .
  • Page 16 INSTALLING GAS VALVE Piezo Ground Tab The gas valve is secured into the mounting plate with a nut. Fig. 17 shows an example of a typical installation. PIEZO48WH Illustration shows side view of valve and Piezo ignitor. Ignitor Module Bottom of Burner Pan PIEZO23WH Illustration above shows ground tab connection underneath the burner pan.
  • Page 17 IGNITOR ALIGNMENT 1/8” Gap at Ignitor Probes It is important check that the ignitor probes be properly aligned overtop of the burner port holes and did not move during shipping. Use the Fig.19 as a guide. Before lighting remove the screen cover of the ignition hood to burner and ensure the thermocouple is directly ⅛”...
  • Page 18: Operation & Lighting

    OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water.
  • Page 19: Tmsi Troubleshooting/Maintenance

    FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4.
  • Page 20: Expanded Tmsi Model View

    Expanded View of Thermocouple Manual Safety (TMSI) Fire Pit Ignition Hood Spur Burner 7/8” Washer Ground Brass Nut OASNG# Note: Use joint compound or (Burner Ori ce) Te on tape resistant to all gasses on all male NPT U3-8D-S (Fitting) threads;...
  • Page 21: Section C Thermocouple Flame Sense (Tfs) Installation

    Section C Thermocouple Flame Sense (TFS) Installation Flat disc pans are typically uses with landscape blocks. The illustrations below show examples of possible installations. NOTE: Additional methods of supporting the center of the disc underneath or supporting an oversized opening are shown on page 9 in Figs.
  • Page 22 INSTALLING BATTERY PACK INTO WEATHERPROOF BOX After the weatherproof box location has been established and installed, run the black 4-PIN connector wire along with the red and black wires from the valve box into the weatherproof box. Connect red to red and black to black wires from the valve box to the wires of the battery pack.
  • Page 23 LEARNING THE REMOTE CONTROL TO THE MODULE This fire pit comes standard with one remote controlled transmitter. The handheld remote is shipped with this system already learned (programmed) to the module inside the control box. Additional transmitters can be learned to this electronic module;...
  • Page 24 IGNITOR ALIGNMENT 1/8” Gap at Ignitor Probes It is important check that the ignitor probes be properly aligned overtop of the burner port holes and did not move during shipping. Use the Fig. 31 as a guide. Before lighting remove the screen cover of the ignition hood to burner and ensure the spark probes are directly overtop of a burner port ⅛”...
  • Page 25: Operation & Lighting

    OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water.
  • Page 26: Tfs Troubleshooting/Maintenance

    TROUBLE SHOOTING FOR TFS MODELS FAULT CODES TROUBLE SHOOTING The VCS-5000MODTC control module has built-in error detection for several common operating fault conditions. When the control module detects an error, it will emit a series of beeps. The beeping pattern will help to determine the cause of the operating fault Ignition Safety (Protection for ignition system): Error Code: One beep every one second.
  • Page 27 Thermal Safety (Overheat Protection): Error Code: 4 Beeps every 2 seconds. Description of Fault: Warn users that the modules internal temperature exceeds 170°F. How to Clear: Module’s internal temperature must cool to below 160°F and then press ON button. What to Check: Ensure that there is proper ventilation to the control module.
  • Page 28 ADDITIONAL TROUBLE SHOOTING Symptom Remedy Fire Pit 1. Bleed gas line. Won’t Light 2. Ensure all gas lines are turned ON. 3. Ensure there is not too much media overtop the burner, it can inhibit the gas flow. Too little or no media can also contribute to non-lighting. 4.
  • Page 29: Expanded Tfs Model View

    Expanded View of Thermocouple Flame Sense (TFS) Fire Pits Spur Burner Ignition Hood Orange ⁄ ” Washer Ignition Wire Brass Nut Flat Disc Pan OAS-NG# (1) ⁄ ” Washer (Burner Ori ce) Thermocouple & ½” Coupler Ground Wires f i r e - p a r t s . c o m Battery Pack Black Wire Valve Box:...
  • Page 30: Replacement Parts

    ROUND FLAT DISC REPLACEMENT PARTS PILOT ADJ PILOT MAIN f i r e - p a r t s . c o m Drawings are not to scale POWER Requires 4-AA 1.5V alkaline batteries Slide Switch to Latching Solenoid Square Flat Disc Fire Pits REV.
  • Page 31: Replacement Parts List

    ROUND FLAT DISC REPLACEMENT PARTS LIST Qty. Item Part Number Description TMSI 25-inch Square Flat Stainles Disc PAN-SS25SF 30-inch Square Flat Stainless Disc PAN-SS29D 34-inch Square Flat Stainless Disc PAN-SS34D 40-inch Square Flat Stainless Disc PAN-SS40D 46-inch Square Flat Stainless Disc PAN-SS46D 16-inch Burning Spur (used on FPB-20DBS fire pits only) B-SPUR-16...
  • Page 32 ROUND FLAT DISC REPLACEMENT PARTS LIST Item Qty. Part Number Description TMSI #10-24 x 1.25” Black Oxide Phillips Screw SCREW1024PANBL #10-24 Stainless Nut ST3-113-1020 #10 Stainless Flat Washer WASHER10SS Thermocouple/Ignitor/Rainshield Replacement Kit (not shown) TFS-IGNT-ASSEMBLY Thermocouple/Rainshield Replacement Kit (not shown) TMS-TC-ASSEMBLY Manual Spark Ignitor Module (not shown) 3042-RB...
  • Page 33: Optional Accessories

    OPTIONAL ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. Media Media Media Lava Stones: 1” to 2” size (50 lbs) Lava Boulders: 6” to 12” size (30lbs) Lava Rock: 1”...
  • Page 34 A DIVISION OF SKYTECH PRODUCTS GROUP LIMITED WARRANTY Skytech Products Group (Firegear Outdoors) hereby warrants Travel, diagnostic cost, service labor to repair the defect and to the end user that products will be free from material and freight charges on warranty parts to and from the factory will workmanship defects that prevent safe and correct operation of be responsibility of the owner.
  • Page 35 Optional Cutout Template for TMSI Face Plate f i r e - p a r t s . c o m This fire pit instruction provides an option to mount the TMSI face plate to concrete board. Use the template above to complete the installation. The TMSI face plate can be mounted vertically or horizontally.
  • Page 36 The TMS valve bracket can be oriented in different positions to accommodate different installations. Once the bracket and knob are installed, the knob may not be oriented in a convenient position to easily read. If this is the case, we have provided a label that can be placed over top of the existing knob for the user to easily know which way to turn the control knob to light a fire pit.
  • Page 37 NOTES f i r e - p a r t s . c o m Square Flat Disc Fire Pits REV. 1-8-19 Page 37...
  • Page 38 Having problems getting the fire pit to operate? Don’t leave the job site! We want to help! Call 855.498.8324 for Technical Support between the hours of 8:00AM to 5:00PM EST. Text photos to 260.255.5750 or e-mail photos to support@skytechpg.com. BEFORE YOU CALL WE WILL NEED THIS INFORMATION f i r e - p a r t s .
