Outdoor Match Light / Piezo Spark Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
MODELS
Description
19" Rd. Pan & Spoke Burner
25" Rd. pan & Spoke Burner
20x20" Sq. pan & Spoke Burner
26x26" Sq. pan & Spoke Burner
Burners Only
10-Inch Burner Only
19-Inch Burner Only
25-Inch Burner Only
INSTALLATION PRECAUTION:
Warning: For Outdoor Use Only
Piezo Spark Ignition
SSBPR19PSI
SSBPR25PSI
SSBPS20PSI
SSBPS26PSI
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Skytech SSBPR19
Summary of Contents for Skytech SSBPR19

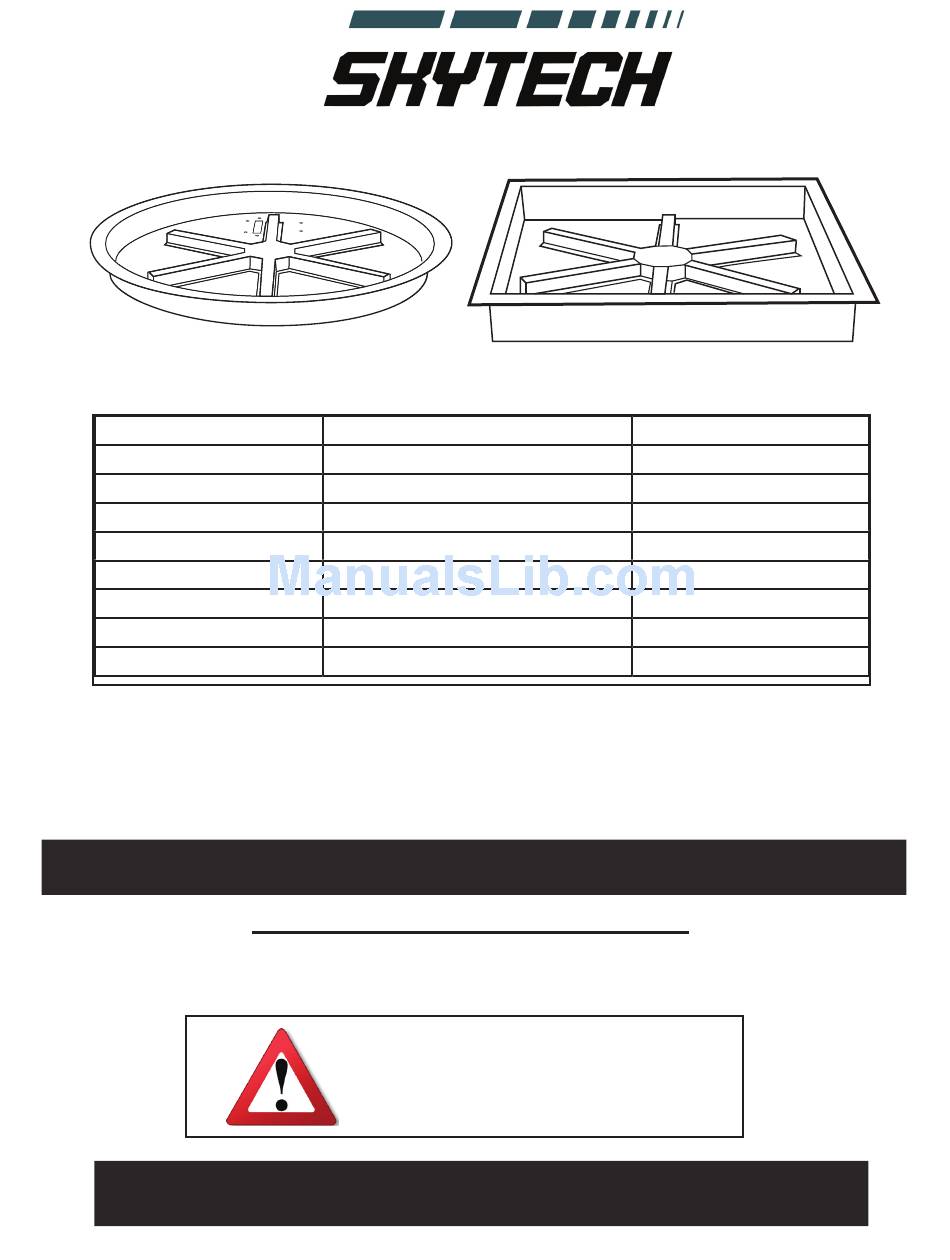

- Page 1 MODELS Match Light Description Piezo Spark Ignition SSBPR19 19” Rd. Pan & Spoke Burner SSBPR19PSI SSBPR25 25” Rd. pan & Spoke Burner SSBPR25PSI SSBPS20 20x20” Sq. pan & Spoke Burner SSBPS20PSI SSBPS26 26x26” Sq. pan & Spoke Burner SSBPS26PSI Burners Only...
- Page 2 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department. .%!/%0!*),5)!&/,00)/7)7!7&12/+!&'):! "(61%6)1!2/'0,**,02%/A!,7B&'0()/0A! '"&#(#$, '"&#(#$ .%!/%0!&')!#%1!9%%D2/+:! ,*0)1,02%/A!')1529)!%1!(,2/0)/,/9)!9,/! E%**%?!,**!+,'!*),D!61%9)7&1)'!2/!032'! 9,&')!2/B&1$!%1!61%6)10$!7,(,+):!!C),7! (,/&,*!612%1!0%!%6)1,02%/:! 03)!2/'0,**,02%/A!%6)1,02/+!,/7! (,2/0)/,/9)!2/'01&902%/'!03%1%&+3*$! 4)#%1)!2/'0,**2/+!%1!')15292/+!032'! )8&26()/0!!!!!! )@6*%'2%/!(,$!1)'&*0!9,&'2/+!61%6)10$!7,(,+)A!6)1'%/,*!2/B&1$!%1!7),03:! '"&#(#$-!!"#!03)!2/#%1(,02%/!2/!03)')!2/'01&902%/'!2'!/%0!#%**%?)7!)@,90*$A!,!#21)!%1! .%!/%!'0%1)!%1!&')!+,'%*2/)!%1!%03)1!#*,((,4*)!5,6%1'!,/7!*28&27'!2/!03)!5292/20$!%#! K+&,L+D&,M"K%1L, 032'!%1!,/%03)1!,66*2,/9):! REV. 11-15-12 Page 1 Skytech Fire Pits...
- Page 3 Propane/LP Tank Enclosure Specifications A - Opening 180º apart from each other B - Min.. 2” (50.8mm) from floor/ground to base of tank C - Max. 1” (25.4mm) from tank base to bottom of opening Skytech Matchlight Fire Pits REV. 11-15-12 Page 2...
-
Page 4: Table Of Contents
Fire Pit Maintenance/ Trouble Shooting Optional Accessories/Conversion Kits 12-13 Warranty NOTE: This installation instruction covers both Match Throw and Manual Spark Igntition systems. Not all sections will be applicable to your particular application. REV. 11-15-12 Page 3 Skytech Fire Pits... -
Page 5: Specifications
PLEASE NOTE: If you purchased a spoke burner only without the fire pit pan, the burner must still be installed into a non-combustible structure following the same requirements throughout this installation manual. REV. 11-15-12 Page 4 Skytech Matchlight Fire Pits... -
Page 6: Preparation For Non-Conbustible Structure
In some cases the heating Cross Flow Ventilation value may already be reduced and downsizing the orifice may not be necessary. (Min. 18 Sq. In. Per Side) Figure 3. Cross Ventilation Example Skytech Fire Pits REV. 11-15-12 Page 5... -
Page 7: Installation Into An Approved Enclosure
After the fire pit pan is installed run the piezo ignitor wires into the electrical junction box. Piezio wires are 24-inches in length; ensure your installation does not exceed the wire length for proper connection. Fig. 4 Key valve components. REV. 11-15-12 Page 6 Skytech Matchlight Fire Pits... -
Page 8: Typical Installation Drawings
Non- Piezo Wires Combustible Wall Material Self-Securing Junction Box Securing Tab Non- Mounting Plate Key Valve Combustible Wall Material Key Valve Flange Non- Combustible Wall Material Primary Gas Supply Fig. 5 Typical installation. Skytech Fire Pits REV. 11-15-12 Page 7... -
Page 9: Installing Battery In Piezo Ignitor
Decorative glass may be loosely scattered on top of the lava rock. Do NOT Fig. 9 Keep screen cover exposed cover the stainless steel screen cover with any rock or glass. It must be free an any debris to operate properly. Skytech Matchlight Fire Pits REV. 11-15-12 Page 8... -
Page 10: Operation
4. Gas should ignite within 10 seconds or less. If fire pit does not light within 10 seconds turn key clockwise to turn OFF the gas supply. Ensure there is not too much media on top of spoke that my inhibit gas flow and try again. REV. 11-15-12 Page 9 Skytech Fire Pits... -
Page 11: Replacement Parts
REPLACEMENT PARTS Side View Skytech Matchlight Fire Pits REV. 11-15-12 Page 11... -
Page 12: Replacement Parts List
Ignition Hood Screen Cover ST3-100-1027 AF-5000DSI2P03 2-Probe Manual Spark Ignitor AAA Battery (Not Shown) ST1-060-1004 Stainless Steel Thread Cutting Screws - (Not Shown) ST3-113-1028 FG-KVHC-PC Manual Key Valve - Valve, Key and Flange REV. 11-15-12 Page 12 Skytech Fire Pits... -
Page 13: Fire Pit Maintenance/ Trouble Shooting
Stainless lid for 19” or 25” round fire Lava Bolulders 6” to 12” size (30lbs.) 3/8” Quick connect 12’ hose for NG or pits. Models: FG-19LID or FG-25LID Model: FG-LB30 LP gas Model: FG-12QDK Skytech Matchlight Fire Pits REV. 11-15-12 Page 13... -
Page 14: Warranty
WARRANTY CONVERSION KITS The warranty for the Skytech Outdoor Fire Pits is (5) five years on only the Stainless Steel Components for the original owner, and this warranty is not transferable. Should any of the Stainless Steel components fail because of the workmanship or material for the original date of purchase.
