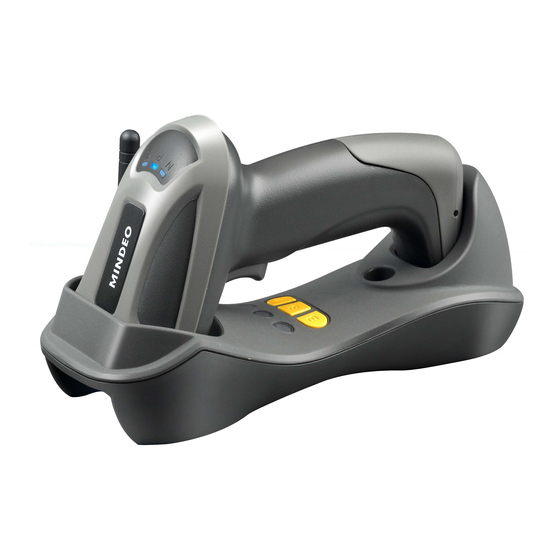

CS3290-2D Cordless Image Scanner
User Manual
Version: CS3290-2D_UM_EN_V3.1.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS3290-2D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mindeo CS3290-2D

Summary of Contents for Mindeo CS3290-2D

  • Page 1 CS3290-2D Cordless Image Scanner User Manual Version: CS3290-2D_UM_EN_V3.1.11...
  • Page 3 Notice Make sure you carefully read the following information to ensure that your barcode scanner is able to perform at the level for which it is designed. All software, including firmware, furnished to the user is on a licensed basis. The right is reserved to make changes to any software or product to improve reliability, function, or design.
  • Page 4 location the better.

  • Page 5: Safety Precautions - Danger

    Safety precautions – Danger! Be sure to read the following safety precautions carefully before trying to use the barcode scanner for the first time. Keep this manual in handy place for future reference. Danger! This symbol indicates information that, if ignored or applied incorrectly, creates the danger of death or serious personal injury.

  • Page 6: Safety Precautions - Warning

    Safety precautions – Warning! Warning! This symbol indicates information that, if ignored or applied incorrectly, can create the possibility of death or serious personal injury. Disassembly and modification Never try to disassemble or modify the unit in any way. High voltage inside creates the danger of electrical shock.
  • Page 7 Cradle with RS-232 cable and adaptor  Power the cradle only with a power outlet whose voltage matches that marked on the adaptor specified in this manual.  Avoid conditions that can cause damage or breaks in the power cord. Do not place heavy objects on the power cord.

  • Page 8: Safety Precautions - Caution

    Safety precautions – Caution! Caution! This symbol indicates information that, if ignored or applied incorrectly, can create the possibility of personal injury or material damage. Foreign objects Take care to ensure that metal or combustible objects are not inserted into the openings of the unit. Such objects create the danger of fire and electrical shock.
  • Page 9 insulation of the power cord and create the danger of fire and electrical shock.  Never pull on the power cord when unplugging it. Doing so can damage the cord and create the danger of personal injury, fire and electrical shock. Always hold onto the pug when unplugging it from the wall outlet.
  • Page 10 viii...

  • Page 11: Table Of Contents

    Contents Notice ..................................i Safety precautions – Danger! ..........................iii Safety precautions – Warning! ..........................iv Safety precautions – Caution! ..........................vi Technical specifications ............................1 Cable connector pin-outs descriptions for cradle ....................3 Default setting for each barcode .......................... 4 Dimensions ................................
  • Page 12 Interleaved 2 of 5 ..............................57 Industrial 2 of 5 ..............................59 Matrix 2 of 5 ................................60 Codabar ................................. 61 Code 128 ................................63 UCC/EAN 128 ..............................65 ISBT 128................................67 Code 93 ................................. 68 Code 11 ................................. 69 MSI/Plessey ................................

  • Page 13: Technical Specifications

    Technical specifications Handheld unit Dimensions Length × Width × Depth: 17.0 × 7.0 × 8.3 cm Weight 222g Color Gray 1400 mAh Lithium-ion battery Battery Charge time Fully charged (>80%) in 3.5 hours Case material ABS + TPU Scan window material Tempered optical glass Image size 838 ×...
  • Page 14 Electrical safety: EN 60950-1 Photobiological safety: EN 62471:2008 Illumination: 0~100,000LUX Drop resistance: Multiple 1.2m (3.9ft) drops to concrete Protection class: IP52 Note: Test condition: temperature at 27° C, sunny day, and visibility of 5 kilometers. Natural surroundings significantly affect the communication distance in practice. The distance drops quickly in the rainy, high-humidity, or heavy haze day;...

  • Page 15: Cable Connector Pin-Outs Descriptions For Cradle

    Cable connector pin-outs descriptions for cradle Cable connector interface pin-outs The pin-outs descriptions in Table 1 apply to the cable connector on the cradle and are for reference only. Table 1-1 Cable connector pin-outs descriptions RS232 Keyboard (PS2) Power (+5V) Power (+5V) +3.3V ( for interface auto Ground (for interface auto...

  • Page 16: Default Setting For Each Barcode

    Default setting for each barcode Table 2 Default setting for each barcode Min. code Read Check digit Check digit Proprietary Code type length enable verification transmission code ID code ID √ √ √ UPC-A (12) √ √ √ UPC-E √ √...
  • Page 17 Min. code Read Check digit Check digit Proprietary Code type length enable verification transmission code ID code ID √ PDF417 √ MicroPDF417 √ DataMatrix √ QR code √ Han Xin Code √ Aztec Code Note: The settings for ISBN/ISSN and EAN-13 must be the same except the code ID. Fixed-length barcodes.

  • Page 18: Dimensions

    Dimensions...

  • Page 19: Parts Of The Scanner

    Parts of the scanner Handheld unit ① Scan window ② Trigger ③ Red LED (Charging indicator) ④ Communication/Charge socket ⑤ Power button ⑥ Sound hole ⑦ Red LED (Not successful transmission); Blue LED (Power); Green LED (Setting) Cradle ① B button (Reserved); S button (Upgrade / Reset); P button (USB Emulate) ②...

  • Page 20: Power On, Power Off Handheld Unit And Charge Battery

    Power on, power off handheld unit and charge battery Power on handheld unit: Press the power button for two seconds. (see Parts of the scanner) Power off handheld unit: Press the power button for two seconds. (see Parts of the scanner) Charge battery: 1.

  • Page 21: Installation Of Cradle

    Installation of cradle Note: If any of the below operation is incorrect, turn off the power immediately and check the scanner for any improper connections. Go through all steps again. With PS/2 keyboard cable Plug one end of the PS/2 keyboard cable to the cradle, one end to PS/2 port on PC, and one end to the keyboard.
  • Page 22 With RS-232 cable Connect the DB9 serial communication cable with the cradle and the COM port of the computer. Plug the output of the AC/DC adaptor into the power terminal of on the cradle. Plug the AC/DC adaptor provided by the manufacturer into an electrical outlet.

  • Page 23: Single-Parameter Setting By Scanning 1D Barcodes

    Single-parameter setting by scanning 1D barcodes Important notes: 1. During the process of programming, LED is lighting to indicate the programming correctness. LED will go off if any incorrect programming operation performed. 2. After each successful programming, LED will go off and the scanner will beep twice. 3.

  • Page 24: Multiple-Parameter Setting By Scanning A Qr Code Barcode

    Multiple-parameter setting by scanning a QR code barcode User can customize a QR code barcode to set multiple parameters. The scanner can set multiple parameters by scanning this single QR code barcode. 1. The data format of the QR code barcode is as following. Note that: ...

  • Page 25: Description Of Point Coordination And Distributed Coordination Wireless Network

    Description of point coordination and distributed coordination wireless network Notes: 1. In this section, “cluster” denotes an association of a cradle and a number of handheld units. 2. In this section, “RF” is the abbreviation for “radio frequency”. The scanner offers two kinds of wireless network topology: point coordination and distributed coordination.

  • Page 26: Sketch Map Of Distributed Coordination Operating Mode

    Cluster 1 Cluster 2 2. Sketch map of distributed coordination operating mode This series of cordless barcode scanner is working at 430MHz ～432MHz, 433.05MHz～434.79MHz and is covered by a patent of wireless communication method named LR-433-WPAN wireless communication protocol. Single cluster – multiple handheld units Single cluster - single handheld unit Multiple clusters...

  • Page 27: Point Coordination Wireless Communication Setting

    Point coordination wireless communication setting 1. Point coordination wireless communication setting for handheld unit Wireless network topology for handheld unit: There are two kinds of wireless network topology that can be employed: point coordination and distributed coordination. Handheld unit RF channel No.: The scanner offers 16 different radio frequency channels for the data transmission between handheld unit and cradle.
  • Page 28 5 times, and the beeper emits 5 beepers for every 10 minutes or 200 scans. In this battery low status, the power LED flashes 2 times by pulling the scanner trigger. Enter sleeping mode interval: If it is enabled, the handheld unit will enter sleeping mode while no operation beyond the time interval defined;...
  • Page 29 Command packet Operations of base unit / cradle LED indication Red LED flashes once, VALID Send VALID command packet to the handheld unit. green LED on. Red LED flashes once, INVALID Send INVALID command packet to the handheld unit. green LED off. Send LOCK command packet to the handheld unit, Red LED flashes once, LOCK...
  • Page 30 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Wireless network topology for Point coordination handheld unit Distributed coordination Handheld unit RF channel No. 02-16 02-16 Handheld unit ID 01-16 01-16 10dbm 7dbm 5dbm Radio power level for handheld unit 0dbm -5dbm...
  • Page 31 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Enable Enter sleeping mode interval 00-ffH 00-ffH (minute) VALID/INVALID/LOCK/UNLOCK Disable protocol Enable Waiting for command packet Always interval 01-99(100ms) 01-99 Enter batch mode Send batch data ※ Show channel information of handheld unit Note: The settings indicated with (※) are valid only when the cradle is in upgrade ready mode.

  • Page 32: Point Coordination Wireless Communication Setting For Cradle

    2. Point coordination wireless communication setting for cradle Wireless network topology for cradle: There are two kinds of wireless network topology that can be employed: point coordination and distributed coordination. Cradle RF channel No.: The scanner offers 16 different radio frequency channels for the data transmission between handheld unit and cradle.
  • Page 33 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Wireless network topology for Point coordination ※ cradle Distributed coordination ※ Cradle RF channel No. 02-16 02-16 ※ 01-16 Bind the first handheld unit ID 01-16 ※ Recruit a next handheld unit ID 01-16 01-16 10 dbm...

  • Page 34: Distributed Coordination Wireless Communication Setting

    Distributed coordination wireless communication setting 1. Cluster establishment example 1.0 The flow chart of the general architecture of establishing a cluster is shown below. 1.1 Establish the wireless link between the cradle and the first handheld unit. Step 1.0 Please refer to chapter “return default parameters & version chapter” to check the current wireless network topology.
  • Page 35 If the cradle in not bound to a handheld unit, its address assumes a random value which can cause conflicts and malfunctions to other cradles within it range. Step 4.1 Firmly position the handheld unit onto the cradle. Within 10 seconds, two beeps will be emitted to signal that the cradle has been paired to the handheld unit, and the blue LED on the handheld unit will go off.

  • Page 36: Distributed Coordination Wireless Communication Setting For Handheld Unit

    2. Distributed coordination wireless communication setting for handheld unit Wireless network topology for handheld unit: There are two kinds of wireless network topology that can be employed: point coordination and distributed coordination. Handheld unit RF channel No.: The scanner offers 16 different radio frequency channels for the data transmission between handheld unit and cradle.
  • Page 37 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Inform the result of wired Disable transmission for handheld unit Enable Bind Join Show channel information of handheld unit※ Note: The settings indicated with (※) are valid only when the cradle is in upgrade ready mode.

  • Page 38: Distributed Coordination Wireless Communication Setting For Cradle

    3. Distributed coordination wireless communication setting for cradle Wireless network topology for cradle: There are two kinds of wireless network topology that can be employed: point coordination and distributed coordination. Radio power level for cradle: By selecting, you can change the radio frequency power level for cradle. Multiple-scan setting Single-scan setting Option bar code...

  • Page 39: Keyboard Wedge Interface For Cradle

    Keyboard wedge interface for Cradle Keyboard type: As a keyboard interface, the scanner supports most of the popular PCs and IBM terminals. Keyboard layout: The scanner supports different national keyboard layouts. Clock period: According to the PS2 protocol, the clock is provided by the device, e.g. keyboard or scanner, with the period between 60us to 100us.
  • Page 40 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry IBM AT, PS/2 Keyboard type Apple Mac compatibles Turkish F Turkish Q French Italian Spanish Keyboard layout Slovak Denmark Japanese German Belgian Russian Czech Character encoding system Refer to chapter of “Handheld scan & some global settings” 60us 70us Clock period...
  • Page 41 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry 200us 10ms Delay-after-compound-key 20ms 40ms 80ms Alphabetic key Numeric key Numeric keypad Alt+ keypad Disable Power-on simulation Enable 10ms Inter-character delay 20ms 40ms 80ms Inter-byte delay Caps Lock reversion Disable...
  • Page 42 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Enable Disable Caps Lock override Enable...

  • Page 43: Interface For Cradle

    RS-232 interface for Cradle Flow control: None-The communication only uses TxD and RxD signals without any hardware or software handshaking protocol. RTS/CTS-If the scanner wants to send the barcode data to host computer, it will issue the RTS signal first, wait for the CTS signal from the host computer, and then perform the normal data communication. If there is no replied CTS signal from the host computer after the timeout duration, the scanner will issue an error indication.
  • Page 44 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry 80ms 00-99 Response delay 00-99 (100ms) 1200 2400 4800 Baud rate 9600 19200 38400 57600 115200 None Parity Even 8 bits Data bit 7 bits One bit Stop bit Two bits...

  • Page 45: Usb Interface For Cradle

    USB interface for Cradle USB device type: HID keyboard– By setting, the scanner is used as a USB HID keyboard emulation device. keyboard layout setting follows the setting of keyboard layout in the chapter of Keyboard wedge. USB virtual COM– By setting, the scanner emulate a regular RS232-based COM port. If a Microsoft Windows PC is connected to the scanner, a driver is required to install on the connected PC.
  • Page 46 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Italian Spanish Slovak Denmark Japanese German Belgian Russian Czech Character encoding system Refer to chapter of “Handheld scan & some global settings” 10ms Inter-character delay 20ms 40ms 60ms Alphabetic key Numeric key Numeric keypad Alt+ keypad...

  • Page 47: Handheld Scan & Some Global Settings

    Handheld scan & some global settings Scanning mode: Good-read off-The trigger button must be pressed once to activate scanning. The light source of scanner stops scanning when there is a successful reading or no code is decoded after the Stand-by duration elapsed.
  • Page 48 Character output restraint: Printable character only- If this option is selected, the scanner will output the printable characters only, i.e. in ASCII from 20H to 7EH. Alphanumeric character only- If this option is selected, the scanner will output the alphanumeric characters only, i.e.
  • Page 49 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Global min. code length for 1D 01-99 01-99 symbol 00-66 Global G1-G6 string selection 00-66 Disable Element amendment Enable None Character output restraint Printable character only Alphanumeric character only Disable Decoder optimization Enable Data output delay in...

  • Page 50: Visual And Audio Indication For Handheld Unit

    Visual and audio indication for handheld unit Power on alert: After power-on the scanner will generate an alert signal to indicate a successful self-test. LED indication: After each successful reading, the LED above the scanner will light up to indicate a good barcode reading.

  • Page 51: Decode Illumination And Decode Aiming Pattern

    Decode illumination and decode aiming pattern Decode illumination mode: Enable illumination causes the scanner to turn on the illumination to aid decoding. Disable illumination to turn off illumination for the scanner during decoding. Better quality images could be obtained with illumination support. The effectiveness of the illumination decreases as the distance to the target increases.

  • Page 52: Dpm, Multiple Symbols, Structured Append Read, Etc

    DPM, Multiple symbols, Structured append read, etc. 2D symbols read: A global setting of 2D symbols readability. DPM format read: By setting Enable, the scanner can read 2D symbols in DPM (Direct Park Marking) format. Some barcodes in DPM format are shown below. Multiple symbols &...
  • Page 53 Vertical centering read: By setting Enable, the scanner reads only the barcode centered by the aimer in vertical direction. However, the scanner will read either one of two barcodes which are positioned horizontally. See example below.
  • Page 54 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Follow respective 2D symbol setting All 2D OFF All 2D ON Only PDF417 ON 2D symbols read Only QR code ON Only Data Matrix ON Only MaxiCode ON Only Aztec Code ON Only Han Xin Code ON Disable DPM format read...
  • Page 55 Note: The instruction of calibrating the aimer in vertical centering direction. Scan the barcode on this page. The scanner will give three musical short beeps to indicate entering calibration mode. Press the trigger of the scanner while maintaining the distance of about 15cm between the scan window of the scanner and this paper.

  • Page 56: Upc-A

    UPC-A Read: Format System character Data digits (10 digits) Check digit Check digit verification: The check digit is optional. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Code ID is a one-or-two-character string used to represent the symbol upon a succeeding reading.
  • Page 57 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncate leading zeros Truncation/Expansion Expand to EAN-13 Truncate system character Add country code...

  • Page 58: Upc-E

    UPC-E Read: Format System character “0” Data digits (6 digits) Check digit Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of UPC-A.
  • Page 59 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncate leading zeros Truncation/Expansion Expand to EAN-13 Expand to UPC-A Truncate system character...

  • Page 60: Upc-E1

    UPC-E1 Read: Format System character “1” Data digits (5 digits) Check digit Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of UPC-A.
  • Page 61 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncate leading zeros Truncation/Expansion Expand to EAN-13 Expand to UPC-A Truncate system character...

  • Page 62: Isbn/Issn)

    EAN-13 (ISBN/ISSN) Read: Format Data digits (12 digits) Check digit Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted. EAN-13 code ID setting: Refer to Code ID setting of UPC-A.
  • Page 63 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-FF 00-FF EAN-13 code ID setting (ASCII) <A>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits Disable...
  • Page 64 EAN-8 Read: Format Data digits (7 digits) Check digit Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of UPC-A.
  • Page 65 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <C>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncation/Expansion...

  • Page 66: Code 39 (Code 32, Trioptic Code 39)

    Code 39 (Code 32, Trioptic Code 39) Read: Format ⋆ ⋆ Data digits (variable) Check digit (optional) Check digit verification: The check digit is optional and made as the sum module 43 of the numerical value of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted.
  • Page 67 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <M>* 00-66 Insert group selection 00-66...
  • Page 68 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Enable Code 32 Prefix “A” transmission Disable Enable Disable Trioptic Code 39 read Enable Trioptic Code 39 Start/End Disable transmission Enable...

  • Page 69: Interleaved 2 Of 5

    Interleaved 2 of 5 Read: Format Data digits (Variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. There are two optional check digit algorithms: the specified Uniform Symbol Specification (USS) and the Optical Product Code Council (OPCC).
  • Page 70 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable Disable Check digit verification OPCC Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <I>* 00-66 Insert group selection 00-66...

  • Page 71: Industrial 2 Of 5

    Industrial 2 of 5 Read: Format Data digits (variable) Max./Min. code length: Refer to Max./Min. code length of Code 39. Code ID setting: Refer to Code ID setting of UPC-A. Insertion group selection: Refer to Insertion group selection of UPC-A. Multiple-scan setting Single-scan setting Option bar code...

  • Page 72: Matrix 2 Of 5

    Matrix 2 of 5 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.

  • Page 73: Codabar

    Codabar Read: Format Start Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 16 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.
  • Page 74 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry 00-66 Insert group selection 00-66 ABCD/ABCD abcd/abcd Start/End type ABCD/TN⋆E abcd/tn⋆e Disable Start/End transmission Enable Disable Start/End character equality Enable...

  • Page 75: Code 128

    Code 128 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min. code length: Refer to Max./Min. code length of Code 39. Code ID setting: Refer to Code ID setting of UPC-A.
  • Page 76 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Reserved 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <K>* 00-66 Insert group selection 00-66...

  • Page 77: Ucc/Ean 128

    UCC/EAN 128 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max. /Min. code length: Refer to Max./Min. code length of Code 39. Code ID setting: Refer to Code ID setting of UPC-A.
  • Page 78 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Read Disable Enable Check digit verification Disable Enable Check digit transmission Disable Reserved Max. code length 00-99 00-99 Min. code length 00-99 00-99 Code ID setting 00-FF 00-FF (ASCII) <K>* Insert group selection 00-66 00-66...

  • Page 79: Isbt 128

    ISBT 128 Read: Format “=” or “&” Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.

  • Page 80: Code 93

    Code 93 Read: Format Data digits (variable) 2 check digits (optional) Check digit verification: The check digit is made as the sum module 47 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.

  • Page 81: Code 11

    Code 11 Read: Format Data digits (variable) Check digit 1 (optional ) Check digit 2 (optional) Check digit verification: The check digit is presented as the sum module 11 of all data digits. Check digit transmission: By setting Enable, check digit 1 and check digit 2 will be transmitted upon your selected check digit verification method.
  • Page 82 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable Disable One digit Check digit verification Reserved Reserved Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <V>*...

  • Page 83: Msi/Plessey

    MSI/Plessey Read: Format Data digits (variable) Check digit 1 (optional) Check digit 2 (optional) Check digit verification: The MSI/Plessey has one or two optional check digits. There are three methods of verifying check digits, i.e. Mod10, Mod10/10 and Mod 11/10. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits.
  • Page 84 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable Disable 1 digit (mod 10) Check digit verification Reserved Reserved Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <O>*...

  • Page 85: Plessey

    UK/Plessey Read: Format Data digits (variable) 2 check digits (optional) Check digit verification: The UK/Plessey has one or two optional check digits. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted.

  • Page 86: China Post

    China Post Read: Format 11 Data digits Max. /Min. code length: Refer to Max./Min. code length of Code 39. The code length of China Post is Code ID setting: Refer to Code ID setting of UPC-A. Insertion group selection: Refer to Insertion group selection of UPC-A. Multiple-scan setting Single-scan setting Option bar code...

  • Page 87: Gs1 Databar (Gs1 Databar Truncated)

    GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Truncated is structured and encoded the same as the standard GS1 DataBar format, except its height is reduced to a 13 modules minimum; while GS1 DataBar should have a height greater than or equal to 33 modules. Read: Format 16 Data digits...

  • Page 88: Gs1 Databar Limited

    GS1 DataBar Limited Read: Format 16 Data digits Code ID setting: Refer to Code ID setting of UPC-A. Insertion group selection: Refer to Insertion group selection of UPC-A. Conversion: Refer to Conversion of GS1 DataBar (GS1 DataBar Truncated). Multiple-scan setting Single-scan setting Option bar code Option...

  • Page 89: Gs1 Databar Expanded

    GS1 DataBar Expanded Read: Format Data characters (variable) Code ID setting: Refer to Code ID setting of UPC-A. Insertion group selection: Refer to Insertion group selection of UPC-A. Conversion: UCC/EAN 128- Refer to Code ID transmission of String transmission, ]Cm will be identified as AIM ID. Multiple-scan setting Single-scan setting Option bar code...

  • Page 90: China Finance

    China Finance Note: This type of barcode is not Omni-directionally decodable. The encodable character set includes numeric 0 to 9. Among the symbol of 0 to 9, 0 and 2, 4 and 9, 5 and 8, 6 and 7, have the symmetrical pattern;...
  • Page 91 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Only 7 converted to C Only 8 converted to D Only 9 converted to E Disable Assigned to 0 Assigned to 5(A) Assigned to 6(B) Assigned to 7(C) Leading character assignment Assigned to 8(D) Assigned to 9(E) Assigned to 1...

  • Page 92: Pdf417

    PDF417 Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable...

  • Page 93: Micropdf417

    MicroPDF417 Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable...

  • Page 94: Qr Code

    QR Code Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable...

  • Page 95: Data Matrix

    Data Matrix Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable...

  • Page 96: Han Xin Code

    Han Xin Code Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable...

  • Page 97: Aztec Code

    Aztec Code Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable...

  • Page 98: G1-G6 & C1-C2 & Fn1 Substitution String Setting

    G1-G6 & C1-C2 & FN1 substitution string setting Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Suffix string setting: The <enter > key is represented in different ASCII when it is applied by different OS. For a Windows/DOS OS, <enter>...
  • Page 99 FN1 substitution string setting: The FN1 character (0x1D) in an UCC/EAN128 barcode, or a Code 128 barcode, or a GS1 DataBar barcode can be substituted with a defined string. Truncate leading G5 string setting: By setting, a defined leading character or string can be truncated. Also a single character can be un-defined.
  • Page 100 Testing barcode: Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Prefix string setting 0-22 characters 00-FF None 0-22 characters 00-FF Suffix string setting <ENTER> 0D0A* 0-22 characters 00-FF Preamble string setting None 0-22 characters 00-FF Postamble string setting None 0-22 characters 00-FF...
  • Page 101 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry A un-defined character Truncate leading G5 string setting 1-22 defined characters 01-7F <0> Once Repeat of a G5 character setting Defined times 01-22 Un-defined times (All) A un-defined character Truncate ending G6 string setting 1-22 defined characters 01-7F <0>...

  • Page 102: G1-G4 String Position & Code Id Position

    G1-G4 string position & Code ID position Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Insert G1/G2/G3/G4 string position: The scanner offers 4 positions to insert strings among the symbol. In case of the insertion position is greater than the length of the symbol, the insertion of string is not effective.

  • Page 103: String Transmission

    String transmission Note: The information in this chapter is closely related to the chapter of String setting. Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Prefix transmission: By setting Enable, prefix will be appended before the data transmitted. Suffix transmission: By setting Enable, suffix will be appended after the data is transmitted.
  • Page 104 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Prefix transmission Enable Suffix transmission Disable Enable Disable Code name transmission Enable Preamble transmission Disable Enable Postamble transmission Disable Enable Disable Code ID transmission Proprietary ID AIM ID Code length transmission Disable Enable Disable...
  • Page 105 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Keyboard wedge/USB RS-232 Keyboard wedge / USB / RS-232 All-non-printable-character string Disable transmission with string setting Enable Transmit the first N data characters only 01-99 Transmit the last N data characters only 01-99...

  • Page 106: Test Barcode Symbols

    Test barcode symbols UPC-A UPC-E UPC-E1 EAN-8 EAN-13 Code 39 Code 32 A908765439 Code 128 Interleaved 2 of 5 Industrial 2 of 5 (Default setting: Read disable) Matrix 2 of 5 Code 93...
  • Page 107 UCC/EAN 128 Code 11 (Default setting: Read disable) MSI/Plessey (Default setting: Read disable) UK/Plessey ISBN/ISSN China Post GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Limited GS1 DataBar Expanded...
  • Page 108 PDF417 12=890ab-+%xyz MicroPDF417 23+-mdo QR code 1234567890ABCD-+()&*%^@#$!XYZ Data Matrix 123890abc-+=&*%^!mdo...
  • Page 109 Maxicode 12345678901234567890 Aztec Code 12345678901234567890 Han Xin Code 12345678901234567890...

  • Page 110: Maintenance

    Maintenance Cleaning the scan window is the only maintenance required. A dirty window may affect scanning accuracy. Do not allow any abrasive material to touch the window. Remove any dirt particles with a damp cloth. Wipe the window using a tissue moistened with water. Do not spray water or other cleaning liquids directly into the window.

  • Page 111: Ascii Table

    ASCII Table for keyboard wedge for RS-232 Null Down Left Right PgUp PgDn Home Enter Insert Ctrl+ Delete Alt+ Notes: The 2nd and the 3rd columns above are used for keyboard wedge only. “ & ‘ < > Example: ASCII “A” = “41”.

  • Page 112: Barcode Representing Non-Printable Character

    Barcode representing non-printable character Notes to make the following barcode: 1. According to different barcode printing software, the method of printing following barcode is different. 2. If using CODESOFT software, firstly read the information through “Help→Index→Code128→Special input syntax”. Also refer to ASCII table. For example, if we wish to make “F1” barcode, select “code128”, then select “CODE A”...

  • Page 113: Return Default Parameters

    Return default parameters All parameters of handheld unit return to default setting WARNING: If you wish to return all parameters of the handheld unit, including radio communication setting, to default setting, please scan the barcode above. All parameters of cradle return to default setting※...

  • Page 114: Display Firmware Version & Radio Communication Setting

    Display firmware version & radio communication setting Cradle firmware version display If you wish to display the firmware version of the cradle, please scan the barcode above. Handheld unit firmware version display If you wish to display the firmware version of the handheld unit, please scan the barcode above.

  • Page 115: Quick Setting To Point Or Distributed Coordination Wireless Network

    Quick setting to point or distributed coordination wireless network The steps of setting are: 1. Both the handheld unit and the cradle are in normal working mode. Normally it means that only the blue LED on the handheld unit and only the blue LED on the cradle are ON as shown below. The scanner offers two kinds of wireless network topology: point coordination and distributed coordination.

  • Page 116: Configuration Alphanumeric Entry Barcode

    Configuration alphanumeric entry barcode To finish parameter setting, please scan the bar code below.
