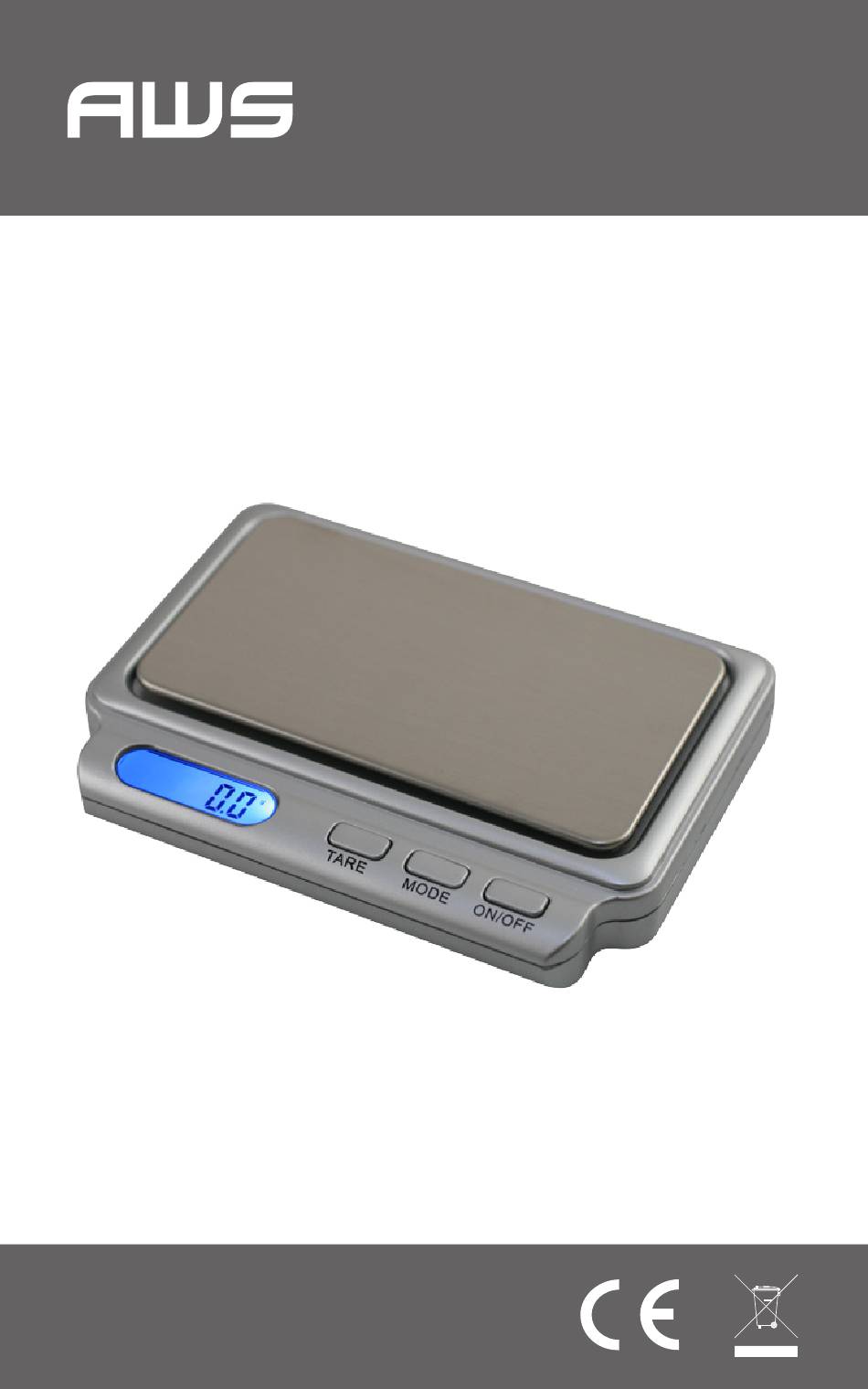

- Page 1 User Manual CARD-V2 CARD-V2-100 CARD-V2-600 Copyright © 2010 American Weigh Scales, Inc. All rights reserved. Rev. 2.0...

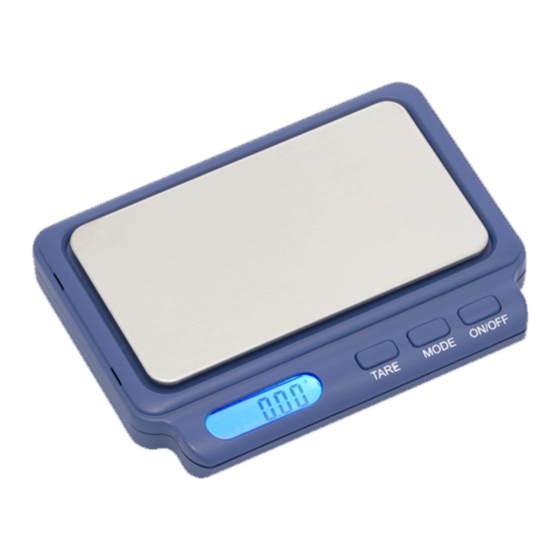

- Page 2 CARD-V2 Scale Thank you for purchasing the American Weigh CARD-V2 digital pocket scale. Please read all operating instructions carefully before use. Scales are precision measuring devices and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind: •...
- Page 3 I. Part List 1. Scale 2. Cover/Expansion Tray 3. AAA Batteries (x2) II. Key Description TARE MODE ON/OFF Weight Indicator ON/OFF Key Tare Key Mode Key III. Battery Installation 1. Before using the scale for the first time, check the battery compartment and remove any plastic insulation strips or packaging that may be in place to prevent battery drainage during shipping/storage.
- Page 4 2. If the scale is turned off then back on, it will default to the last unit used. • CARD-V2-100 Units: g (gram) oz (ounce) ct (carat) gn (grain) • CARD-V2-600 Units: g (gram) oz (ounce) ozt (troy ounce) dwt (pennyweight) VI.
- Page 5 the contents. 4. To return to normal weight display (gross weight), remove any items from the weighing platform and press the TARE key again to re-zero the scale. VII. Calibration Calibration and adjustment are performed at the factory. However, the weighing range can shift slightly during shipping.
- Page 6 CARD-V2 Scale 4. Once the weight is accepted, the display will show “PASS” then return to normal operation. IX. Troubleshooting • Problem: Scale will not turn on • Solution: Check the batteries • Problem: Displayed weight fluctuates randomly • Solution: Make sure your workspace is stable and...
- Page 7 XI. Specifications CARD-V2-100 CARD-V2-600 Max. Capacity 100g 600g Readability 0.01g 0.1g Min. Weight 0.03g 0.2g Power 2 x AAA Dimensions 0.8 x 3.0 x 4.1” Platform Dimensions 1.9 x 3.5” XII. Capacity/Readability Charts CARD-V2-100 CARD-V2-600 100g x 0.01g 600g x 0.1g 3.528oz x 0.001oz...
