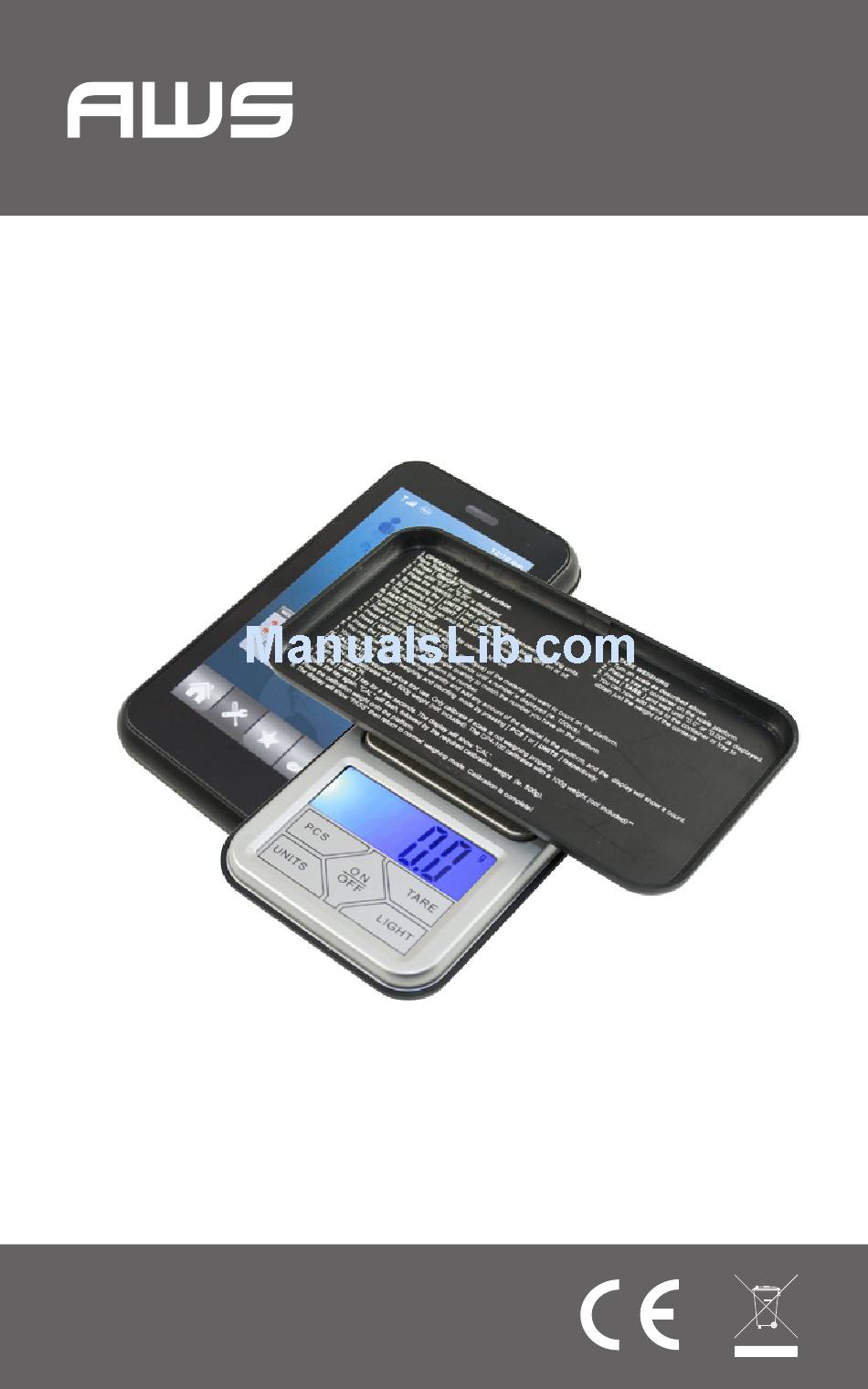

Page 1: User Manual
CP4-Series User Manual CP4-100 (100g x 0.01g) CP4-650 (650g x 0.1g) Copyright © 2010 American Weigh Scales, Inc. All rights reserved. Rev. 2.0... - Page 2 CP4-Series Thank you for purchasing the American Weigh CP4-Series digital pocket scale. Please read all operating instructions carefully before use. Scales are precision measuring devices and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind: •...
- Page 3 I. Part List 1. Scale 2. Cover/Expansion Tray 3. CR2032 Lithium Batteries (x2) II. Key Description Unit Indicator Weight Indicator PCS Key TARE Key TARE LIGHT Key UNITS Key UNITS LIGHT ON/OFF Key III. Battery Installation 1. Before using the scale for the first time, check the battery compartment and remove any plastic insulation strips or packaging that may be in place to CR2032 (Button Cell) Battery Installation prevent battery drainage during shipping/storage.
- Page 4 CP4-Series IV. Operation 1. Place the scale on a flat, level surface and press the ON/OFF key to turn the scale on. 2. Once the start-up process completes and the scale goes to zero you are ready to weigh. 3. Place the quantity to be weighed onto the weighing platform.
- Page 5 the contents. 4. To return to normal weight display (gross weight), remove any items from the weighing platform and press the TARE key again to re-zero the scale. VII. Backlight Feature This scale features a back-light that can be turned on or off. The back-light is enabled by default.
- Page 6 CP4-Series around the world, adjustment is recommended when moving the scale from one location to another. To check calibration: 1. Place the required calibration weight on the scale and note the displayed value. 2. If the displayed value is not within acceptable tolerance (see chart below), adjustment is required.
- Page 7 free of any air currents or vibration Problem: Displayed weight is inaccurate • • Solution: Perform a calibration adjustment XII. Error Codes 1. OUTZ - Zero range has shifted. Perform calibration adjustment. If the problem persists, the load cell may be permanently damaged due to overloading.
