INSTALLATION MANUAL
NMEA DATA CONVERTER
WARNING
Do not install the unit where it may get
wet from rain or water splash.
Water in the unit can result in fire, electrical
shock or damage the equipment.
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury can
result.
CAUTION
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
IF-NMEA2K2
www.furuno.com
IF-NMEA2K2
Model
standard
steering
compass
compass
0.30m
0.30m

Advertisement

loading

Related Manuals for Furuno IF-NMEA2K2

Summary of Contents for Furuno IF-NMEA2K2

  • Page 1 INSTALLATION MANUAL NMEA DATA CONVERTER IF-NMEA2K2 Model WARNING Do not install the unit where it may get wet from rain or water splash. Water in the unit can result in fire, electrical shock or damage the equipment. Do not disassemble or modify the equipment.

  • Page 2: System Configuration

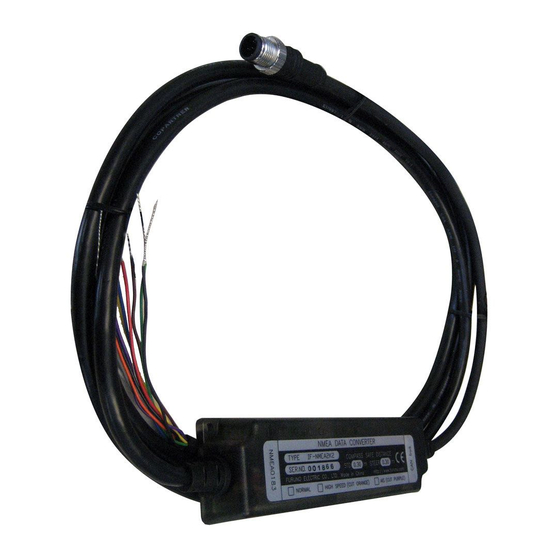

    System Configuration The NMEA Data Converter IF-NMEA2K2 converts CAN bus format data to NMEA0183 format data and vice versa. NMEA DATA CONVERTER CAN bus cable CAN bus device NMEA0183 device * PC, etc. * * : NMEA0183 cable can not be connected to NMEA0183 (RS-232C) device and PC, etc.

  • Page 3: Installation

    (3×20), referring to the outline drawing in this manual. Wiring Connection to CAN bus device Connect the CAN bus cable to the CAN bus device. See “Furuno CAN bus Network Design” (TIE-00170-x) for details about CAN bus network. Connection to NMEA0183 device Connect the NMEA0183 signal cores to NMEA0183 device, referring to the interconnection diagram as below.

  • Page 4: Conversion Mode

    After the connection, cut the unused cable cores and wind vinyl tape around the each edge of the wires and fix them so that they do not touch other signal cores or ground. Vinyl tape Conversion Mode PORT1 (ORG), PORT2 (PPL), GND (BLK) signal cores of the NMEA0183 cables are short-circuited (default).

  • Page 5: Turning Power On

    Turning Power On No operation is required for the user to turn the power on. The power is supplied by CAN bus line. The Power LED (yellow) flashes when the data converter is powered. Power LED Input/Output Comparing CAN bus → NMEA0183 Some CAN bus PGN output a number of NMEA0183 sentences.
  • Page 6 Sending Cycle NMEA0183 CAN bus Input High Output Normal Zeus Speed × 129029 GNSS Position Data 1s, 2s* 1s, 2s* 1s, 2s* 1s, 2s* 129033 Time & Date × 129038 AIS Class A Position × × × Report ID: 1,2,3 129039 AIS Class B Position ×...
  • Page 7 Sending Cycle NMEA0183 CAN bus Input High Output Normal Zeus Speed × 130306 Wind Data 100ms × 130310 Environmental 1s, 5s* 1s, 5s* × Parameters 130311 × 1s, 5s* 1s, 5s* × 130312 Temperature × 130830 Target Information PFEC,SDmrk × 130831 Target Bottom PFEC,SDtbd ×...
  • Page 8 Sending Cycle NMEA0183 CAN bus Output High Input Normal Zeus Speed 126992 System Time 127250 Vessel Heading 100ms 100ms 100ms × 127258 Magnetic Variation 128259 Speed Through Water 129026 COG & SOG, Rapid 250ms 250ms 250ms 250ms Update 129029 GNSS Position Data 129033 Time &...
  • Page 9 *: This equipment can convert the BFT (Blue Force Tracking) use EIVDM sentence (VDM sentence having EI talker) to CAN bus format. However, the converted data can only be used with the FURUNO Multi Function Display and software version combinations shown below.
  • Page 10 This page intentionally left blank.
  • Page 11 ＰＡＣＫＩＮＧ　ＬＩＳＴ 14CV-X-9851 -2 IF-NMEA2K2 N A M E DESCRIPTION/CODE № O U T L I N E Q'TY ユニット UNIT NMEAﾃﾞｰﾀ変換器 IF-NMEA2K2 NMEA DATA CONVERTER 000-020-511-00 工事材料 INSTALLATION MATERIALS +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ 3X20 SUS304 SELF TAPPING SCREW 000-167-940-10 図書 DOCUMENT 装備要領書(和英) IMC-44591-*...
  • Page 14 ○ ○ 本表格依据 SJ/T 11364 的规定编制 本表格依据 SJ/T 11364 的规定编制。 ○: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。 ×: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求 ×: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。 Pub No MDC 44591 B Pub. No. MDC-44591-B Pub. No. MDC-44591-B (1606) IF-NMEA2K2 (1606) IF-NMEA2K2...
  • Page 24 NMEA データコンバーター IF-NMEA2K2 装備要領書 型式 (機器名称：NMEA データ変換器) www.furuno.com Pub. No. IMC-44591-F (2107, ETMI) IF-NMEA2K2 00017662215...
