WARNING
Do not install the unit where it may get
wet from rain or water splash.
Water in the unit can result in fire, electrical
shock or damage the equipment.
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury can
result.

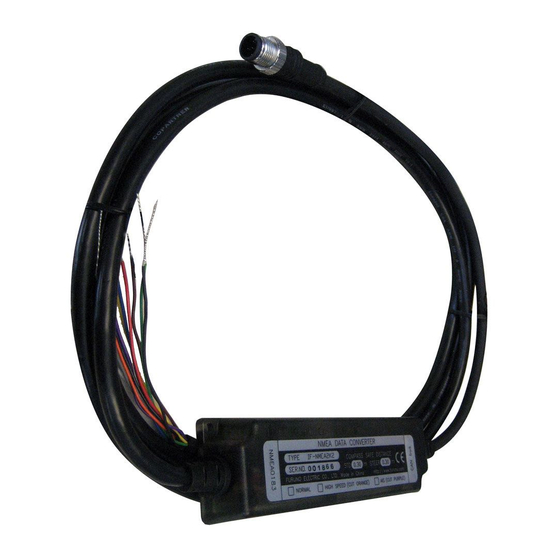

INSTALLATION MANUAL
NMEA DATA CONVERTER
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
IF-NMEA2K2
CAUTION
standard
compass
IF-NMEA2K2
0.30m
steering
compass
0.30m
Advertisement
Table of Contents
Related Manuals for Furuno IF-NMEA2K2
Summary of Contents for Furuno IF-NMEA2K2
- Page 1 INSTALLATION MANUAL NMEA DATA CONVERTER IF-NMEA2K2 CAUTION WARNING Do not install the unit where it may get Observe the following compass safe wet from rain or water splash. distances to prevent interference to a magnetic compass: Water in the unit can result in fire, electrical shock or damage the equipment.
-
Page 2: System Configuration
System Configuration The NMEA Data Converter IF-NMEA2K2 converts Furuno CAN bus format data to NMEA0183 format data and vice versa. NMEA DATA CONVERTER Furuno CANbus cable Furuno CAN bus device NMEA0183 cable NMEA0183 device * PC, etc. * * : NMEA0183 cable can not be connected to NMEA0183 (RS-232C) device and PC, etc. -
Page 3: Installation
Wiring Connection to Furuno CAN bus device Connect the Furuno CAN bus cable to the Furuno CAN bus device. See “Furuno CAN bus Network Design” (TIE-00170-x) for details about CAN bus network. Connection to NMEA0183 device Connect the NMEA0183 signal cores to NMEA0183 device, referring to the interconnection diagram as below. -
Page 4: Conversion Mode
*: To change the conversion mode to “Normal”, cut PORT1 and PORT2. Turning Power On No operation is required for the user to turn the power on. The power is supplied by Furuno CAN bus line. The Power LED (yellow) flashes when the data converter is powered. - Page 5 Input/Output Comparing Furuno CAN bus → NMEA0183 Some Furuno CAN bus PGN output a number of NMEA0183 sentences. NA means “ ”. nonperiodic ID means “Message ID”. Sending Cycle Furuno CAN bus NMEA0183 Normal High Input Output Speed 65280 Heave [Proprietary PGN] PFEChve ×...
- Page 6 *: When the volume of sent data exceeds the communication band, the TX interval becomes longer. NMEA0183 → Furuno CAN bus Some NMEA0183 sentences output a number of Furuno CAN bus PGN. The latest inputted sentence is given priority. NA means “...
- Page 7 NMEA0183 Furuno CAN bus Sending Input Output Cycle 127245 Rudder 100ms 127250 Vessel Heading 100ms 130828 Mark Position Information [Proprietary PGN] 129038 AIS Class A Position Report ID: 1,2,3 129039 AIS Class B Position Report ID: 18 129040 AIS Class B Extended Position Report...
- Page 8 ＰＡＣＫＩＮＧ ＬＩＳＴ 14CV-X-9851 -1 IF-NMEA2K2 N A M E DESCRIPTION/CODE № O U T L I N E Q'TY UNIT IF-NMEA2K2 NMEA DATA CONVERTER 000-020-511-00 INSTALLATION MATERIALS 3X20 SUS304 SELF TAPPING SCREW 000-167-940-10 DOCUMENT IMC-44591-* INSTALLATION MANUAL (JP/EN) 000-176-101-1*...
- Page 10 NETWORK EQUIPMENT LTWM12-05BMMM CAN bus -SL7000 NMEA DATA CONVERTER SHIELD IF-NMEA2K2 0.3m NET-S ① NET-C ② NET-H NET-L RD-H NAV EQUIPMENT RS-485 RD-C (NMEA0183 Ver3.0) TD-B TD-A RS-232C DRAIN SHIELD CUTOFF LINE No. COLOR MODE DEFAULT NORMAL HIGH SPEED ①： PORT 1 ②：...
