Advantech BB-APXN-Q5420 Quick Start Manual

(continued)
Use the Help features of the interface to help you configure
the device. When you have finished configuring the device,
press 'Commit' to save the changes, then 'Restart' to
restart the device. You can optionally press 'Reload' if you
have further configuration changes to make.
7

Check Your Setup

If your device is connected and configured correctly, you
will see the following LED Status:
COMM: Red
LINK: Green
POST: Green
POWER: Blue
8

Troubleshooting

LED COLOR AIRBORNE DEVICE STATE
Off Adapter is not powered.
POWER
Blue
Adapter is powered.
Off
Adapter is not powered.
Red
Adapter failed Power On Self Test ("POST").
POST Adapter passed POST but is not configured for wireless network
Amber
communication.
Adapter passed POST and is configured for wireless communica-
Green
tion.
Off
Adapter is not powered or the wireless radio is Off.
Green Adapter is pwoered and the wireless radio is On.
LINK
If Power LED is also Off, then Adapter is not powered.
Off
If Power LED is On, then No TCP session from WLAN or Ethernet
interface has been established.
A TCP connection to the adapter has been established from the
Amber
wireless interface and no Ethernet link has been detected.
COMM
A TCP connection to the adapter has been established from the
Green
Wireless or Ethernet interfaces but no traffic has been detected.
Document Number: 20BB710-00048-00_r3_BB-APXN-Q5420_2720qsg

Recommended Accessories

24VDC, 120-240VAC,
1.0A Power Supply
Model# BB-MDR-20-24
Serial Cable RS-232
DB9M to DB9F, 1.8 m
Model# BB-9PAMF6
www.advantech.com
1 (888) 948-2248
707 Dayton Road | PO Box 1040 | Ottawa, IL 61350
Phone: 1 (815) 433-5100 | Fax: 1 (815) 433-5109
e-mail: support@advantech-bb.com
QUICK START
GUIDE
BB-APXN-Q5420

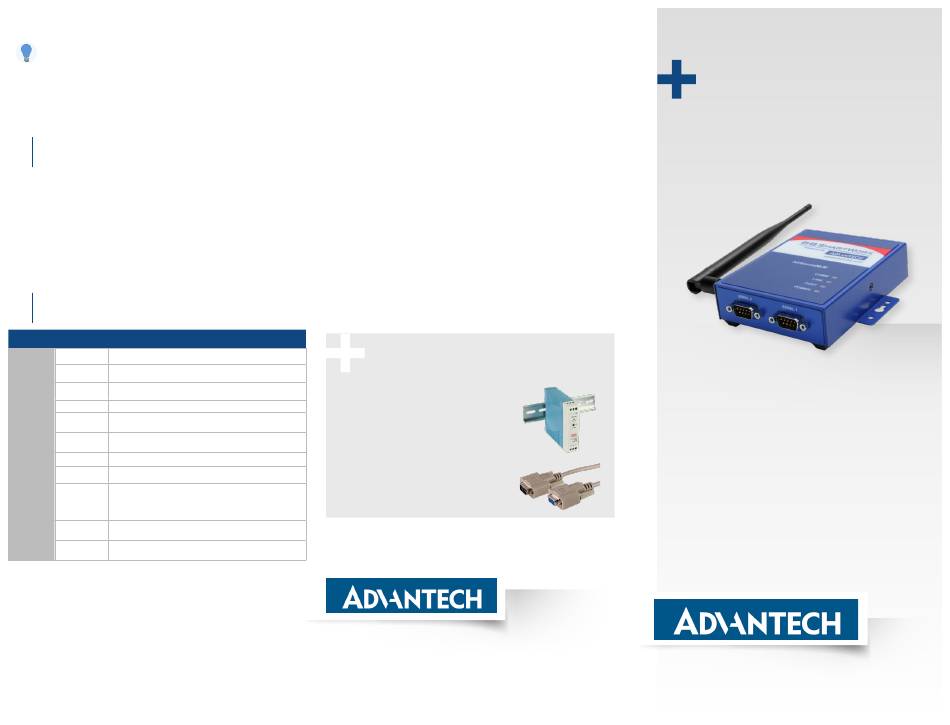

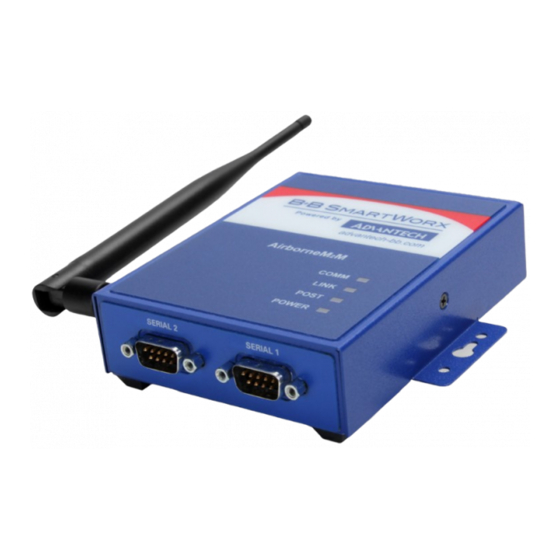

Wireless Access Point
Before you begin, be sure
you have the following:
+ BB-APXN-Q5420 Wireless Access Point
+ CD with Airborne™ Management Center Software (included)
+ Antenna (included)
+ Power Supply (not included)
+ Serial Cable (not included)
www.advantech.com
Fast and easy on the web:
