Perten Aquamatic 5200 Operation Manual page 9

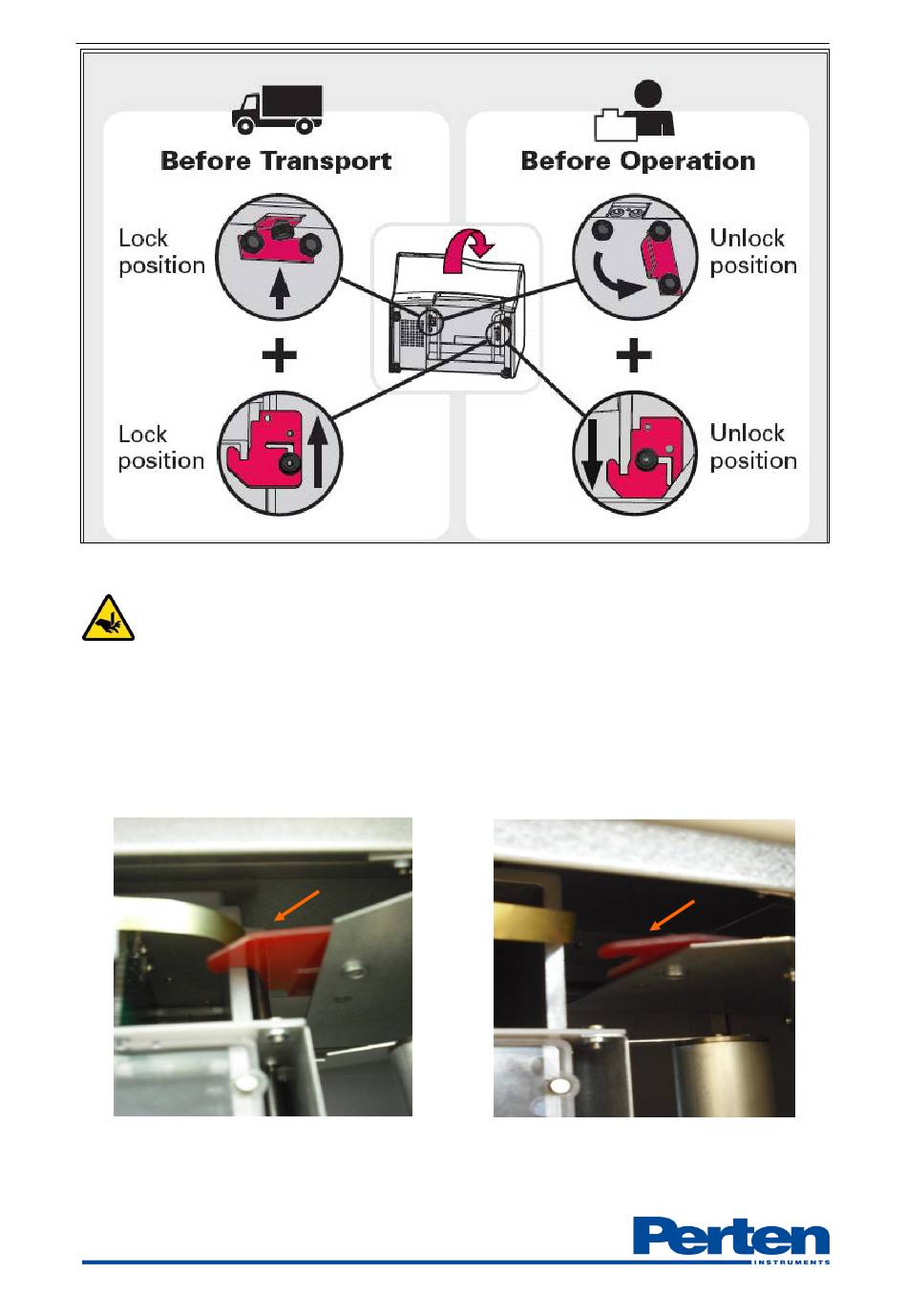

The Transport Locks (see section 5.1.2) are located near sharp edges. Wear gloves and use
1. Transport Lock 1 is secured by a magnetic catch. To unlock, tilt the red plate to release the
locking pin and slide the red plate to the lower position. Ensure the locking pin enters the top
hole for unlocked position.
The figures below show Transport Lock 1 in the Locked and Unlocked positions.
Transport Lock 1 in Locked position. Note the
position of the locking pin in the bottom hole.
Operation Manual AM 5200 (-A) E5200EN3 v 1.1 May 2013
caution when removing and setting Transport Locks.
9 (36)
Transport Lock 1 in Unlocked position. Note
the position of the locking pin the top hole.
