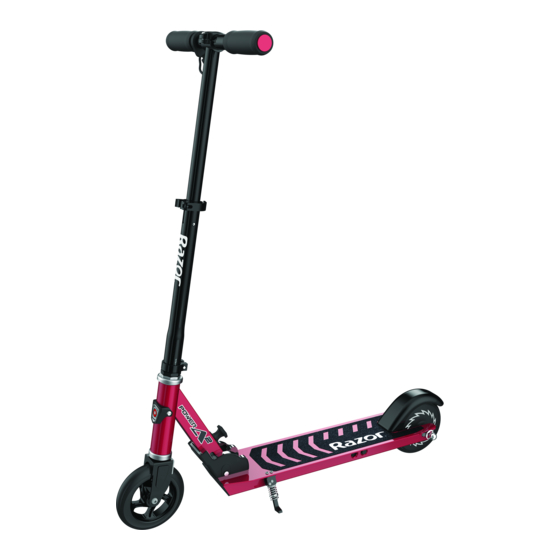

Razor POWER A2 Quick Start Manual
Hide thumbs Also See for POWER A2:

Advertisement

Quick Links

Required Tools: (Not included)
A. Phillips screwdriver
B. Small Flat screwdriver
C. Long needle nose pliers
D. 3 mm Allen wrench
E. 5 mm Allen wrench
WARNING
CAUTION: To avoid potential shock or other injury, turn power switch OFF and disconnect
charger before conducting any assembly or maintenance procedures. Failure to follow these
steps in the correct order may cause irreparable damage.

Step 1

Using a Phillips screwdriver, remove the screw located at
the very front of the deck and pull the deck cover off from
the deck.
Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
QUICK RELEASE / STEM
REPLACEMENT PROCEDURES

Step 2

Disconnect the throttle cable from the controller.
POWER A2
PART # W13113202032
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER A2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Razor POWER A2

  • Page 1 Disconnect the throttle cable from the controller. the very front of the deck and pull the deck cover off from the deck. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
  • Page 2 Using a 3 mm Allen wrench, remove the set screw at the folding mechanism pin. Slide the pin out from the frame. back of the folding knob while holding the knob. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
  • Page 3 Using a 5 mm Allen wrench, loosen the bolt from the Open the quick release. collar clamp and remove the stem from the fork. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
  • Page 4 Slide the quick release up from the stem and replace it. quick release. Step 13 Reverse the steps. ATTENTION: Charge battery 8 hours before using. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.

This manual is also suitable for:

W13113202032
