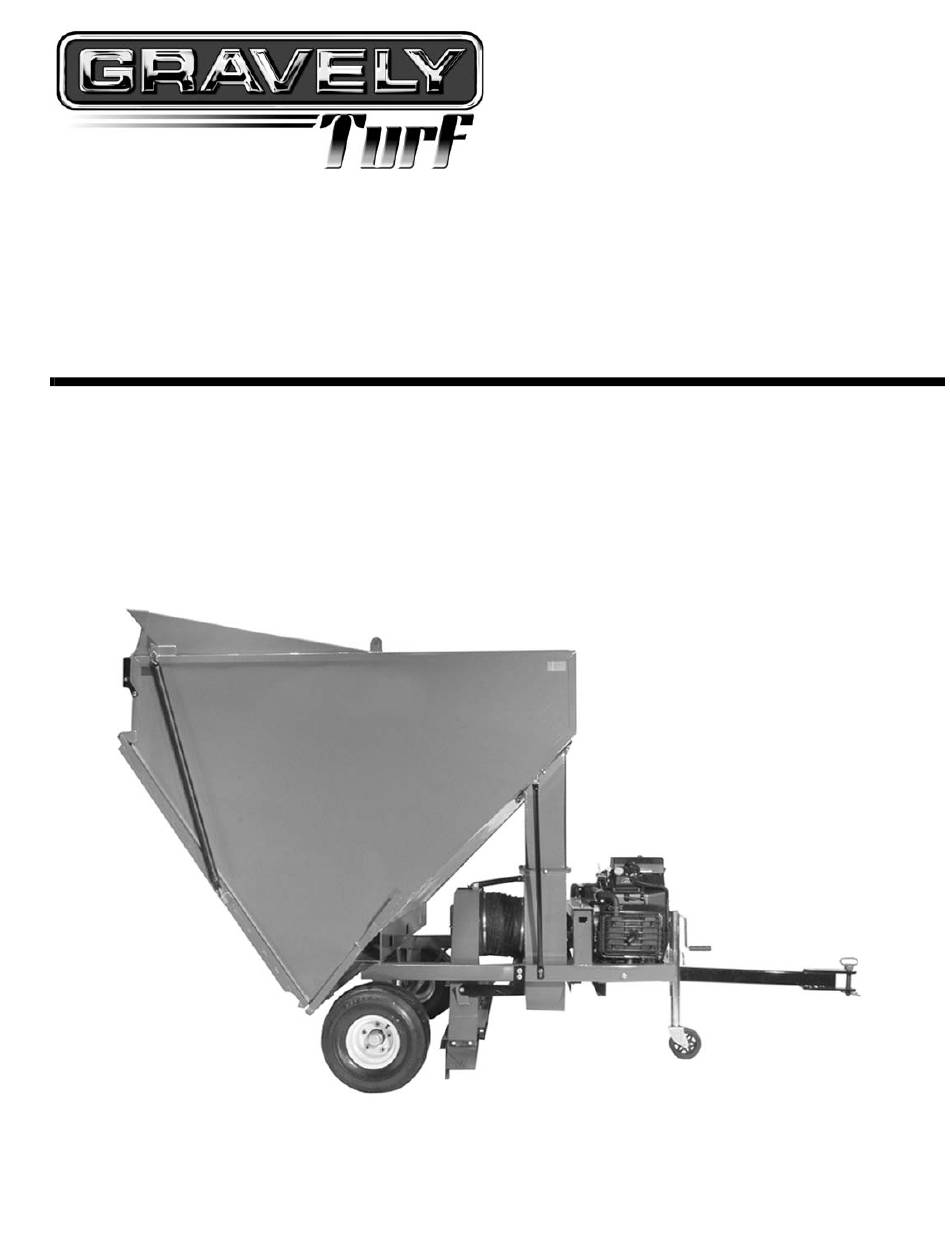

- Page 1 Pro Vac 1060 Parts Manual Models 995420 995430 003268700A 9/09 Printed in USA...
- Page 2 Gravely Turf authorized replacement part may adversely affect the performance, durability, or safety of this unit and may void the warranty. Gravely turf disclaims liability for any claims or damages, whether warranty, property damage, personal injury or death...
-
Page 3: Table Of Contents
ABLE ONTENTS Model 995420 Pro Vac 1060 ECALS 4 Cycle Kohler Decals ........4 Serial No. -
Page 4: Decals
ECALS Model 995420, 430 WAR NING USE DUST FILTERS ON DRY SURFACE ONLY 077720A AVOID INJURY FROM THROWN OBJECTS Do not operate with filter door or hopper door open. Do not operate near bystanders. 077710A CAUTION 1. Keep all shields in place. 2. - Page 5 Item Part No. Qty. Description 02086600 Decal, Scoop Height Adjustment 02086900 Decal, Gasoline Only 02086400 Decal, No Riders 03372400 Decal, 15" Gravely Turf Logo 02141000 Decal, Pro Vac 1060 02823500 Reflector, Red 02823400 Reflector, Amber 02143200 Decal, Mount Jack Here...
-
Page 6: Trailer Frame And Wheels
RAILER RAME HEELS Model 995420, 430 16 17 PP0041 Item Part No. Qty. Description 02088453 Weldment, Frame 02087300 Pin, Hitch 1 x 4.50" 06400511 Washer, Flat Steel .625 05900922 Cap Screw, Hex Head .625-11 x 3 02074051 Weldment, Tongue 02144400 Nut, Flange Lock .625-11 02577300 Jack Assembly with Swivel Wheel... -
Page 7: Hand Vac - 995430
– 995430 Model 995430 Item Part No. Qty. Description 02072400 Clamp, Hose 07000831 Hose, 6-In. x 10 ft. 02088100 Tube, Nozzle 02085800 Grip, Hand 05900801 Cap Screw, Hex Head .375-16 x 1 06400417 Washer, Flat .375 06500517 Nut, Nyloc Hex .375-16 02087900 Hanger, Flex Hose 02087800... -
Page 8: Hopper
OPPER Model 995420, 430 PP0052 PP0051... - Page 9 OPPER Model 995420, 430 Item Part No. Qty. Description 02084151 Weldment, Grid 02084551 Link Spacer, Screen Door 02085053 Weldment, Screen Door 06400509 12 Washer, Flat .312 02084000 Quick Link .25 06500522 Nut, Hex Lock .312-18 02078853 Weldment, Hopper 02952900 Screen, Single (995420, 430) 02141900 Screen / Filter, Hard Surface (995430) 05900738...
-
Page 10: Scoop
COOP Model 995420, 430 PP0061... - Page 11 COOP Model 995420, 430 Item Part No. Qty. Description 05900801 13 Cap Screw, Hex Head .38-16 x 1.00 02083851 End, Bolting Strip 02085300 End Cap, Flex Skirt 02076053 Weldment, Scoop 06500612 Nut, Hex .50 05900613 J-Bolt 06400416 Washer, Flat .50 02083251 Brace, Scoop Stabilizer 02952300...
-
Page 12: Ngine And Rive
NGINE AND RIVE Model 995420, 430 PP0032... - Page 13 NGINE AND RIVE Model 995420, 430 Item Part No. Qty. Description 02083353 Weldment, Discharge Chute 02071900 10 ft. Gasket Material 1.25 x .188 05901107 12 Bolt, Hex .38-16 x .75 Grade 5 06400417 44 Washer, Flat .38 06500517 26 Nut, Hex Nylock .38-16 05900620 Cap Screw, Hex Head .312-16 x .75 06400509...
-
Page 14: Attery And Uel
ATTERY AND Model 995420, 430 PP0024... - Page 15 ATTERY AND Model 995420, 430 Item Part No. Qty. Description 02174600 Nut, Hex Jam Nylock .38-16 06400417 14 Washer, Flat .38 02141251 Plate, Battery Hold Down 02078400 Cable, Battery Positive 02078300 Cable, Battery Ground 02078500 Battery 05900801 Cap Screw, Hex Head .38-16 x 1.00 06200040 Bolt, Carriage .38-16 x 8 02953051...
