STEP 1:

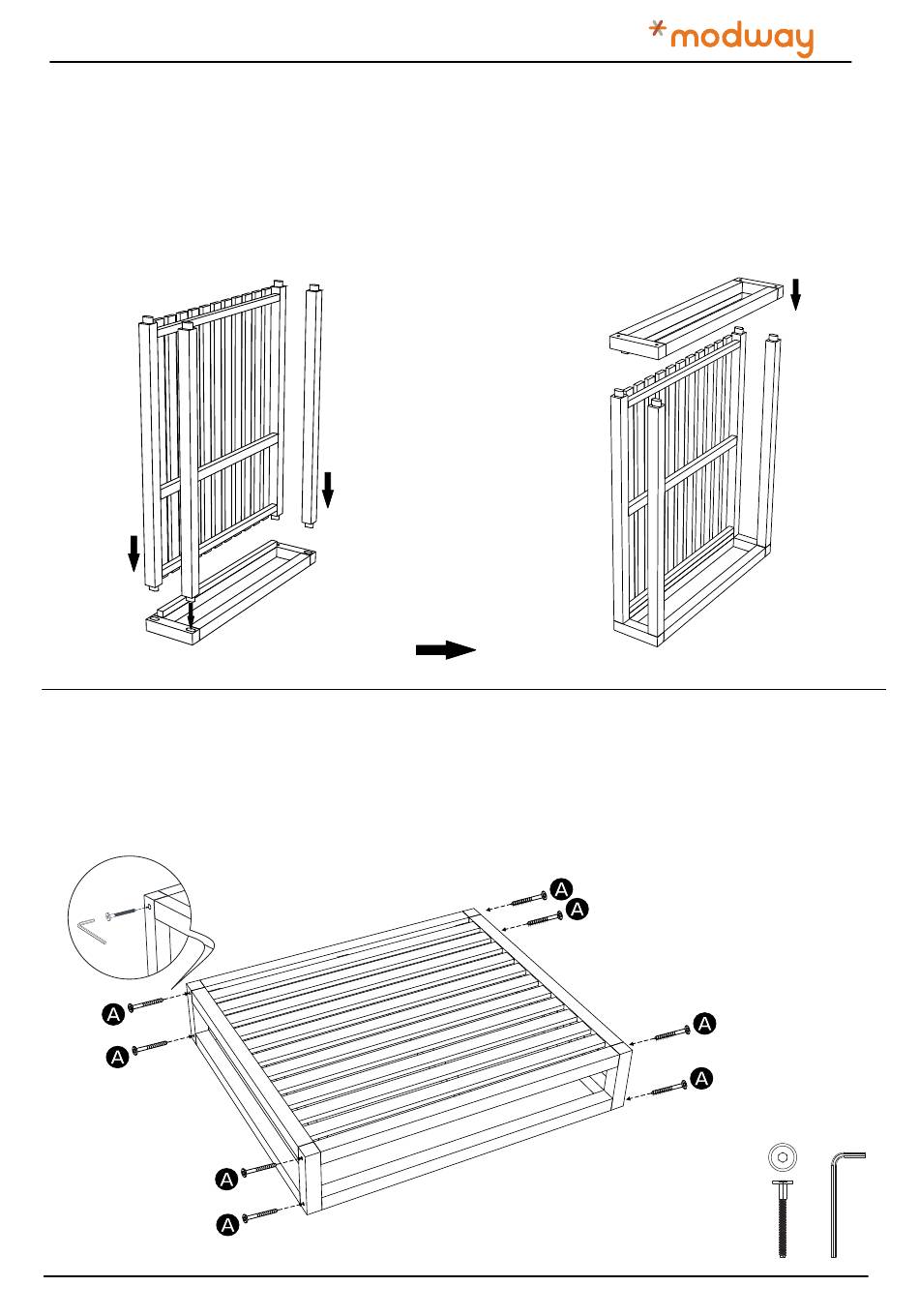

Please put Left Frame (2) on a carpeted or padded area.
Insert the tenon on Seat Frame (1) into the rabbet on Left Frame (2) at first.
Insert wooden bar or Support Wooden (4) one by one through drilling hole.
Carefully position Right Frame (3) to the assembled Seat Frame (1), Left Frame (2) and Support Wooden (4) as
shown.
Insert the tenon on Seat Frame (1), Left Frame (2) and Support Wooden (4) into the rabbet on Right Frame (3).
1
4
STEP 2:
Carefully turn over the assembled Seat Frame (1), Left Frame (2), Right Frame (3) and Support Wooden (4).
Insert 4 pieces of Bolt (A) into the pre-drilled holes on Seat Frame (1) through the top pre-drilled holes on Left
Frame (2).
Use Allen Wrench (B) to tighten Bolts (A) clockwise until secure.
Repeat the same steps for Right Frame (3).
A
B
2
Hardware & Tool required
Customer Service 908-368-1025︱www.modway.com
OTTOMAN
4
2
1
1
3
4
3
4
4
2
Ax8
Page 2 of 3
Bx1
