Bauhn ATV32HDS-0420 Quick Start Manual

Have you got everything?

G
F
Unpack the box (be gentle) and make sure all of these items are there:

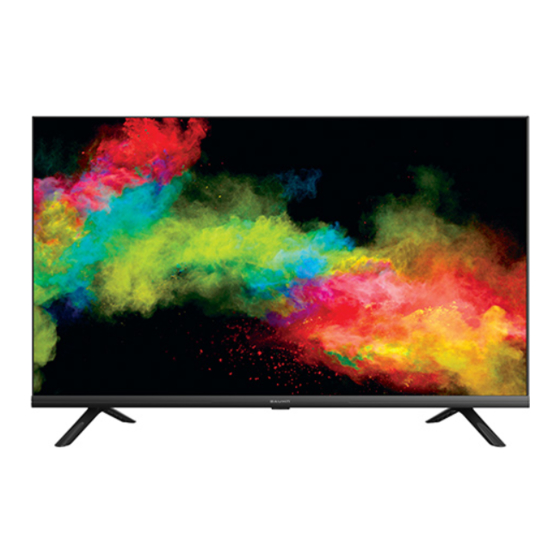

A. 32"HD Smart TV
B. Remote Control
C. AAA Activ Energy Batteries (2)
D. TV Stands (2)

Which plug goes where?

Want to hook up your new TV to a gaming console or something else?
Use the basic guide below to see what the plug and port should look like for
different connections.
You can find more of these on pages 10 - 11 of the User Manual.
(These cables do not come with your TV)
TOSLINK OPTICAL AUDIO
CABLE
HDMI CABLE
ANTENNA CABLE
LAN
ETHERNET CABLE
LAN
Quick Start Guide
Hey!
Let's get your new TV
ready to use, fast!
D
H
I
E. Screws for TV Stands (4)
F. Warning Sheet
G. TV Toppling Safety Message
H. Quick Start Guide

Attach the TV stand

Unless you are wall-mounting the TV, you will need to
attach its stand/legs. If you do want to wall mount the
TV, see page 7 of the User Manual.
Use this to connect your soundbar, amplifier, digital
receiver, or other external audio equipment.
Use this connection for a DVD player, gaming console,
computer and camera.
To watch free-to-air TV channels, you need an antenna
connection.
Use this cable to connect the TV to your modem for
internet access. This TV also has Wi-Fi connectivity.
Model: ATV32HDS-0420
You will also need:
• Phillips-head screwdriver
• Someone to help lift the TV
E
J
K
I. Warranty Certificate
J. General Safety Warnings
K. User Manual
Lay the TV face-down on a soft,
flat surface (like the sofa, or a
towel on a table) larger than the
Match the stands to the
installation points on the
underside of the TV.
Attach the stands to the TV at
the installation points using
the screws provided.
(Grab a screwdriver
This TV is heavy!
We recommend asking
someone to help you lift it.
TV itself.
for this bit).
