USER MANUAL FOR RA-5J00 III3

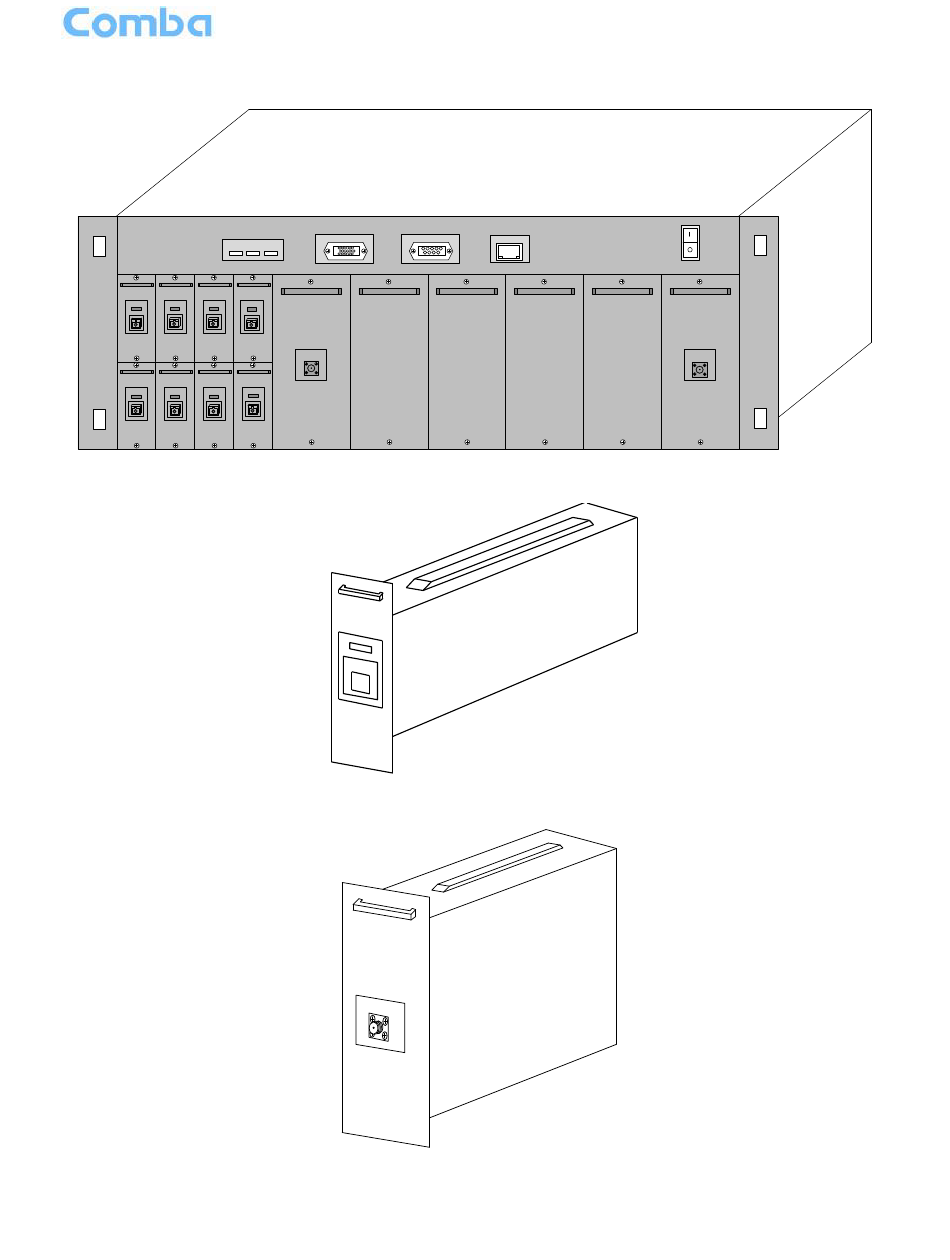

The figures below show the equipment enclosure layout of RA-5J00:
Comba
MODEM
BTS_ALM
LAN
PWR RUN ALM
OP_A
OP_A
OP_A
OP_A
2100MHz
2600MHz
800MHz
OP_A
OP_A
OP_A
OP_A
Figure 1: MU Enclosure
Figure 2: Optical unit Enclosure
Figure 3: Duplexer Unit Enclosure
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 11
