User Guide

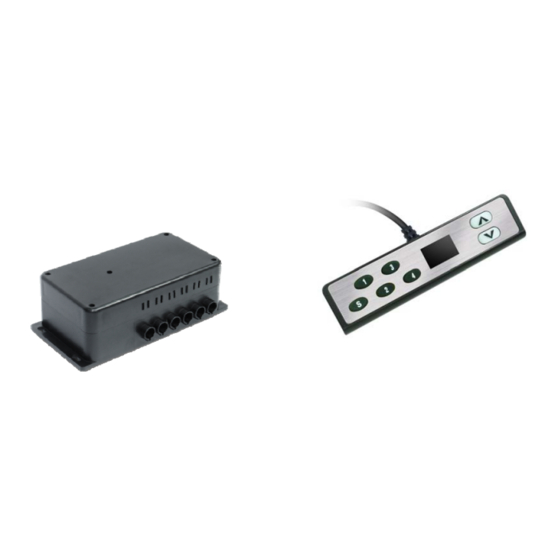

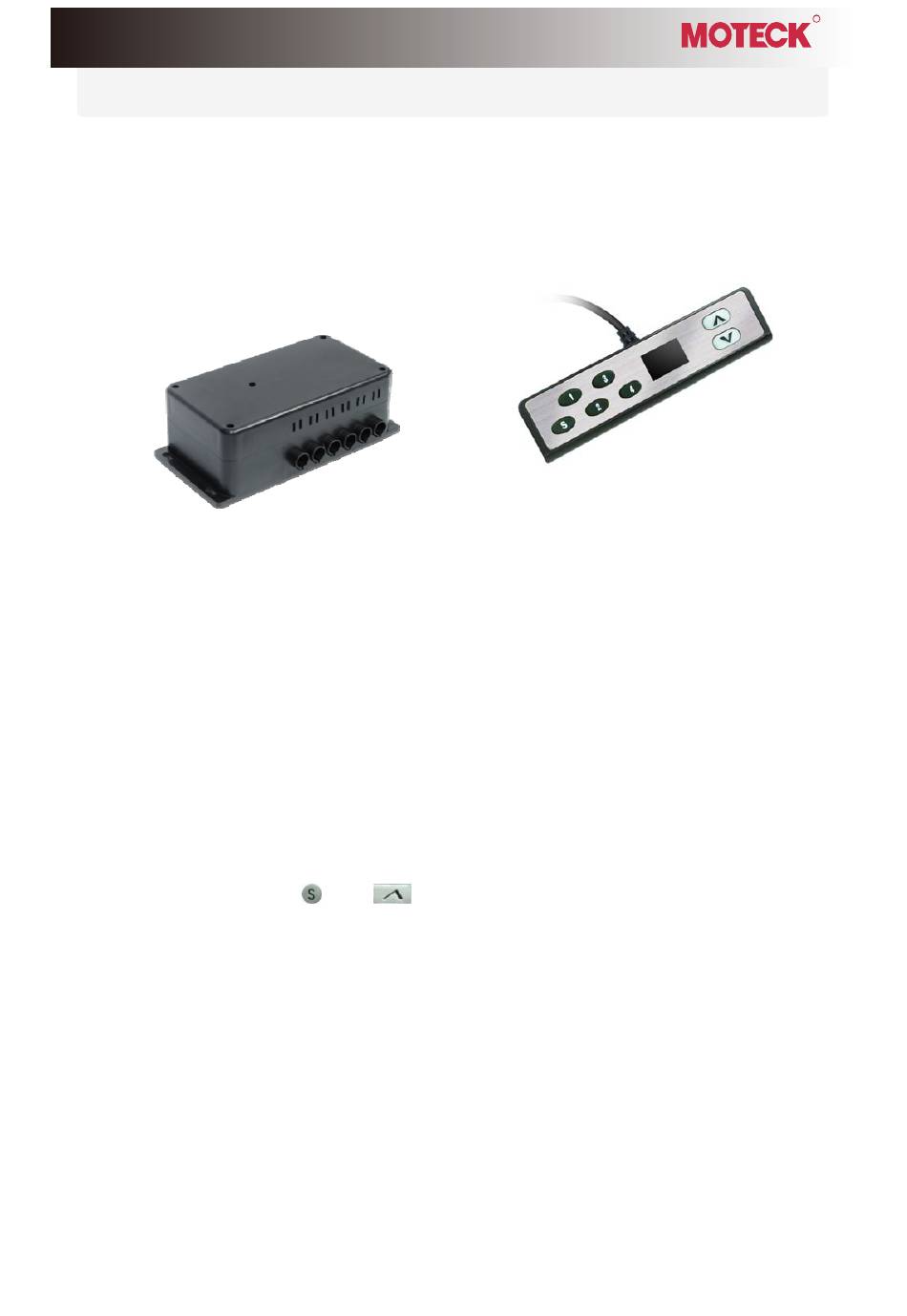

CB4M-S Quad Synchronous Control Box
Model Name：
CB4M-S: Quad synchronous control box
DKP3: Desk control panel
Product Introduction：
The set of CB4M-S quad synchronous control box and DKP3 desk control panel is applied to
lifting desk. It is able to control and adjust the lifting desk to up and down and to work with
the model of FD60 actuator.
A. Install and Learning procedure:
1. Whe CB4M-S and DKP3 are connected and power on at the first time, the display of
DKP3 flashes "SEt". Only learing procedure can be excuted now.
2. Learning: Hold buttons
and the 4 actuators start to run full stroke to record the positions of upper and lower
limits. The table will go down to the bottom and up to the top position. Then go down to
the bottom position again. After the learning procedure is finished, the display shows
still sign of "000" and it can be operated.
3. The unit has to run the full stroke learning procedure after reinstalled on the other table.
4. Pressing any buttons or unplugging the panel can stop table from learning procedure.
5. The unit will memorize the full stroke of the table after finishing the learning procedure.
If the power is cut off and reconnected, you may operate directly without Learning.
CB4M-S
and
M o d e l : C B 4 M - S & D K P 3
together for 2 seconds, the display flashes "SEt"
MOTORIZE OUR WORLD
DKP3
R
Advertisement
Table of Contents
Related Manuals for MOTECK CB4M-S
Summary of Contents for MOTECK CB4M-S
- Page 1 FD60 actuator. A. Install and Learning procedure: 1. Whe CB4M-S and DKP3 are connected and power on at the first time, the display of DKP3 flashes “SEt”. Only learing procedure can be excuted now. 2. Learning: Hold buttons together for 2 seconds, the display flashes “SEt”...
- Page 2 It means reset is finished when display turns to still sign of “000”, and then the unit is back to normal for operation 1F-1, NO. 79, Sec.1, Xintai 5th Rd., Xizhi Dist., TEL:+886-2-2698-1220 .E-mail:sales@moteck.com.tw .New Taipei City, 22101, Taiwan(R.O.C). FAX:+886-2-2698-1324 http://www.moteck.com.tw ○...
- Page 3 M o d e l : C B 4 M - S & D K P 3 CB4M-S 四推桿同步控制盒 產品名稱： CB4M-S: 四推桿同步控制盒 DKP3: 桌上型控制面板 CB4M-S DKP3 產品簡介： CB4M-S 四支推桿同步控制盒與 DKP3 桌上型控制面板組合，可應用於升降桌，具有控制桌 子升降及調整高度功能。搭配的推桿型號為 FD60。 一、學習及重置程序： 1.當第一次插電後，控制面板顯示(SEt)閃爍，只可執行學習程序。 2.學習：同時按 + (2sec)後控制面板顯示(SEt)，四支推桿開始自動走完全行程，並記 錄上下極限位置。桌面會先向下到底，再繼續向上到頂，再向下到底；學習完成後，控制 面板顯示(000)恆亮，即可正常操作。 3.每次安裝到不同的桌子後，必需做學習全行程。...
- Page 4 1.過載保護：當載重過重時，推桿自動停止動作且面板會顯示(E01)。請放開按鍵並移除部 分重量，再按可繼續動作，顯示目前高度。 ，桌面走到最低點，顯示(000)停 2.歸零校正：當控制面板顯示(000)閃爍時，只能長按 止，代表歸零完成，面板顯示(000)恆亮之後，即可正常操作。 1F-1, NO. 79, Sec.1, Xintai 5th Rd., Xizhi Dist., TEL:+886-2-2698-1220 .E-mail:sales@moteck.com.tw .New Taipei City, 22101, Taiwan(R.O.C). FAX:+886-2-2698-1324 http://www.moteck.com.tw ○ C 2014 Moteck. Printed in Taiwan. The contents of this publication are the copyright of the publisher and may not be copied or even extracted unless prior written permission is authorized. MO‐FAM‐I‐0004‐1.0 ...
