User Guide Control Box CM42 Table of Contents I/O Introduction Installation SET mode (Dedicated setting handset is needed) Operation Status and Disposal Battery Replacement 2022.06_V1.4 Revision Technical changes may be made to improve the product without notice! -
Page 2: I/O Introduction

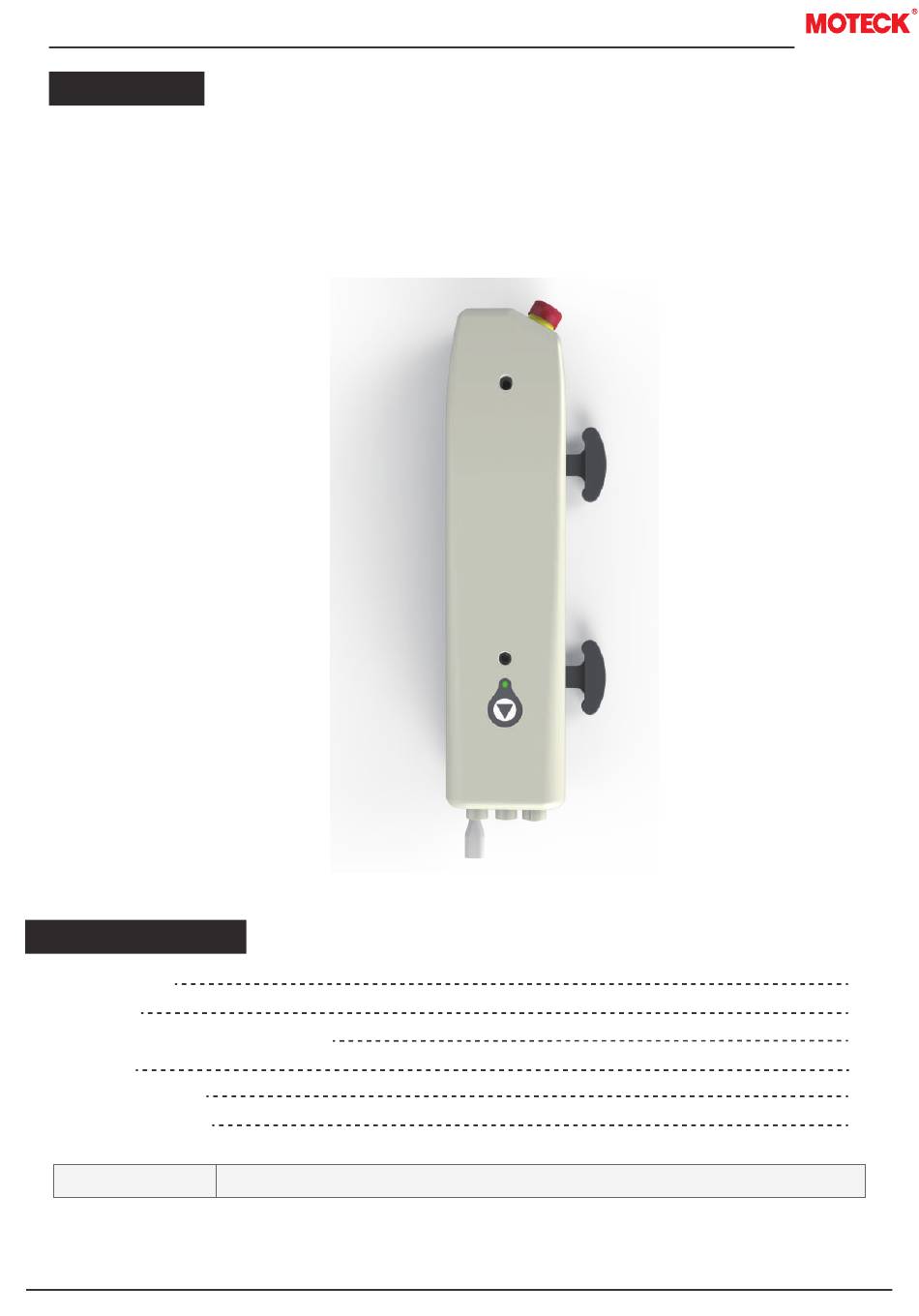

• The functions and parameters described in this user guide are based on the design of the CM42 standard version firmware. If it is a customized firmware, some content may be different. I/O Introduction... -
Page 3: Installation
● Preparation for Mounting Prior to installation, please ensure that you have sufficient space to safely install the CM42 and to avoid the risk of falling. At the mounting position on the hoist, two M6 screw holes with a distance of 240.5~242.5 mm must be prepared in advance. - Page 4 ● Mount CM42 on the hoist 1. Mount CM42 on the hoist frame with 2 fixing screws. 2. Please ensure the screws are tightened securely. 3. Connect the handset and actuators to the control box. • The battery should be fully charged before using. Refer to the “Battery Charging” for Notice proper charging instructions.
-
Page 5: Set Mode (Dedicated Setting Handset Is Needed)
Notice ● Actuator current limit setting There are 2 ways to set the protection limit for M1 actuator in SET mode. CM42 will stop immediately if actuator's consumption current exceeds the set limit. Method 1: Self detect and learning 1. -
Page 6: Operation
4. Hold 2- button, M2 retracts, release the button to stop the movement. HS12L 5. During operation, the LED indicator of CM42 and the battery level indicator of HS12L will be on, and the indicators will turn off when operation stops. - Page 7 2. When the buzzer of the control box sounds intermittently for 4 times and stops for 4 seconds, and the LED on CM42 flashes red at the same time, it means that the battery power is low, so as to remind the user to charge the control box as soon as possible.
-
Page 8: Status And Disposal
Status and Disposal Phenomena Information Disposal ● The LED indicator on CM42 Battery charging reminder, The control box can continue blinks in red (Fig. 1) battery voltage is low to be used temporarily, but should be charged after use ●... -
Page 9: Battery Replacement
2. Unplug all external cables from the control box. 3. Dismount the CM42 from the lift frame, and place it on a flat table. 4. Remove 6 screws at back side. Then, open the back cover, place as shown below. - Page 10 Width (mm/inch) 55.5 / 2.19 70 / 2.76 • There are two options for CM42 batteries: 2.9Ah and 5Ah. For new batteries, always follow the same specifications. Notice • To avoid abnormally shortening the service life of the batteries, please do not mix old and new batteries or different brands.
- Page 11 Terms of Use The user is responsible for the suitability of MOTECK products, and the products listed on the MOTECK website are subject to change without notice. MOTECK reserves the right to terminate sales or delete any products displayed on the website or listed in its catalog.
