Product Data Sheet
www.moteck.com

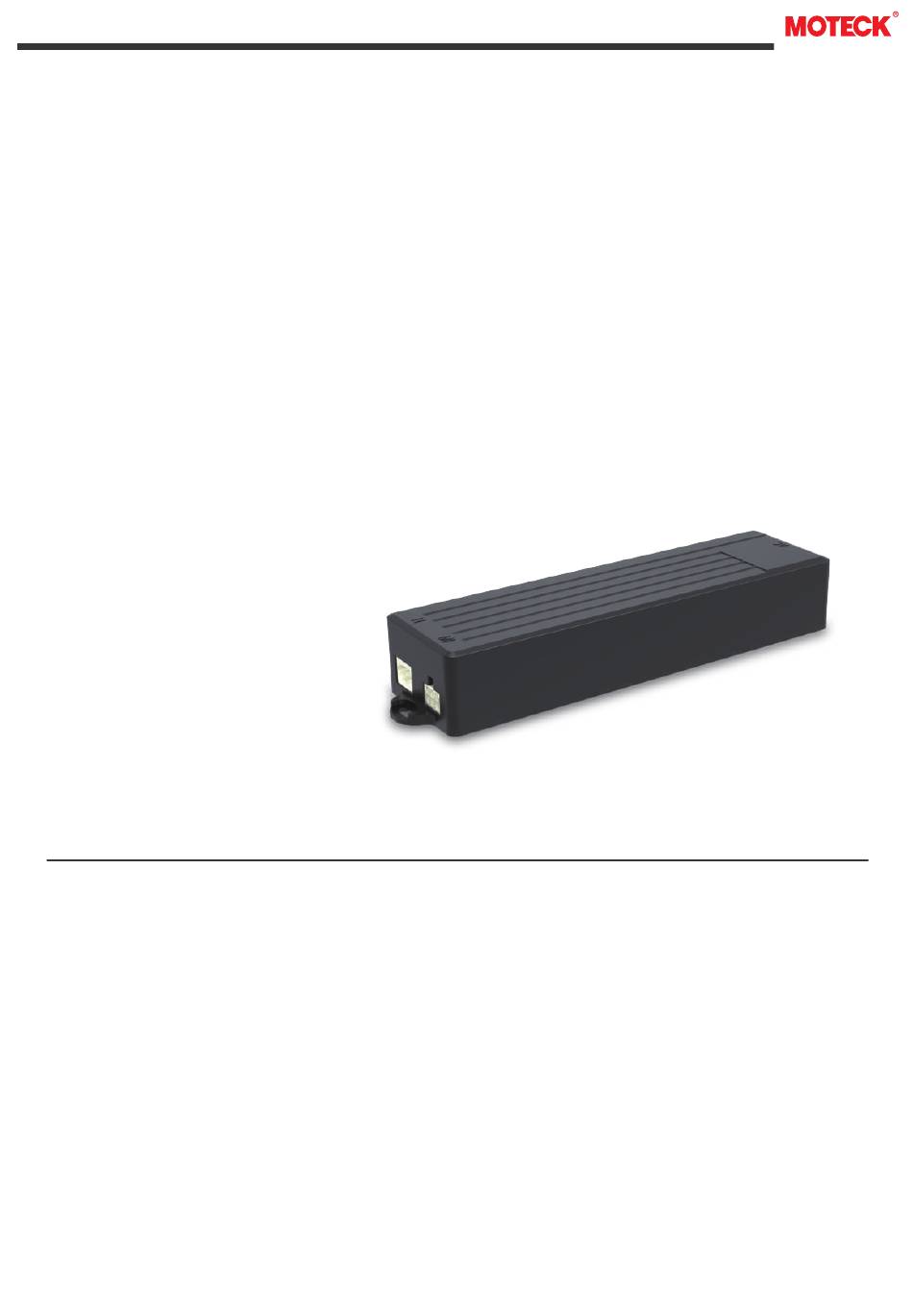

Control Box
CF13
CF13 is designed for electrical lifting desk. With SMPS inside,
it features lightweight and compact that requires only minimal
space to be installed. CF13 supports many functions including
real-time height display and position memory. Moreover, not
only the advantage of soft start / stop ensures a smooth desk
drive, the anti-pinch function also assures the safety
consideration.
Features
● Main applications: Height adjustable desk, Furniture
● Input voltage: 100 ~ 240V AC, 50/60Hz (SMPS)
● Output voltage: 29V DC
● Power supply: Internal SMPS, 29V/2A (58W)
● Max. number of motor: 1 channel
● Max. number of control: 1 channel
● Overload protection current: 4A
● Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
● Electric shock protection level: Class II
● Power cord: Refer to AC Power Cord
● Color: Black
● Real-time height display
● Support USB charging port on hand control
● Soft start / stop function
● Anti-pinch function
● Position memory function
1
