E-commerce-Enitial Lab
ASSEMBLY INSTRUCTIONS
YNJ-17905C17
Tools Required for Assembly
ASSEMBLY RATING
The Assembly Rating is a 5-point
system that shows the degree of effort
Allen Wrench
needed in assembling a specific
(Included)
product (with 1 being easy and 5 being
difficult). For most products, two
persons are recommended.
EASY
DIFFICULT
2 PERSON RECOMMENDED
17.12.14
Page 1
Advertisement
Table of Contents
Related Manuals for Furniture of America YNJ-17905C17
Summary of Contents for Furniture of America YNJ-17905C17
- Page 1 E-commerce-Enitial Lab ASSEMBLY INSTRUCTIONS YNJ-17905C17 Tools Required for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point system that shows the degree of effort Allen Wrench needed in assembling a specific (Included) product (with 1 being easy and 5 being difficult).
- Page 2 Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
- Page 3 Page 3...
- Page 4 PRE-ASSEMBLY INTRODUCTION Unless you are particularly adept at assembling flat-pack/knock-down furniture, we understand building ready-to-assemble furniture can be a frustrating experience for some. To help avoid confusion and to make the assembly process quicker and smoother, we have provided some helpful tips.

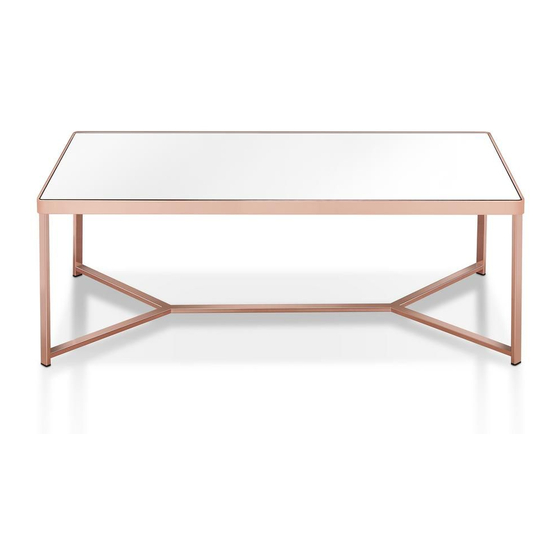

- Page 5 COFFEE TABLE ASSEMBLY INSTRUCTIONS MODEL # YNJ-17905C17 Please keep for future reference PARTS LIST Before you begin, please read "Assembly and Care Advice","Pre- Assembly Introduction" and "Cam Lock Fastener Assembly Instructions" DIMENSIONS 47.25" (W) X23.62" (D) X16.15" (H) 4PCS HARDWARE LIST...
- Page 6 ASSEMBLY INSTRUCTIONS STEP1 Hardware #1=8pcs Hardware #2=8pcs Hardware #3=4pcs Attach floor caps (#3) to the holes of each legs (#D). Align all legs (#D) to the holes of the top frame (#B), and then align bottom frame (#C) to the holes of the legs (#D). Secure all by using bolts (#1) with washers (#2). Page 6...
- Page 7 ASSEMBLY INSTRUCTIONS STEP2 Hardware #4=6pcs Attach glass protectors (#4) to the top frame, then carefully place glass top (#A) onto the top frame. Make sure the product is rested on a flat surface and does not feel loose or wobbly. If it does, double check that the bolts/screws are secured and properly tightened.
