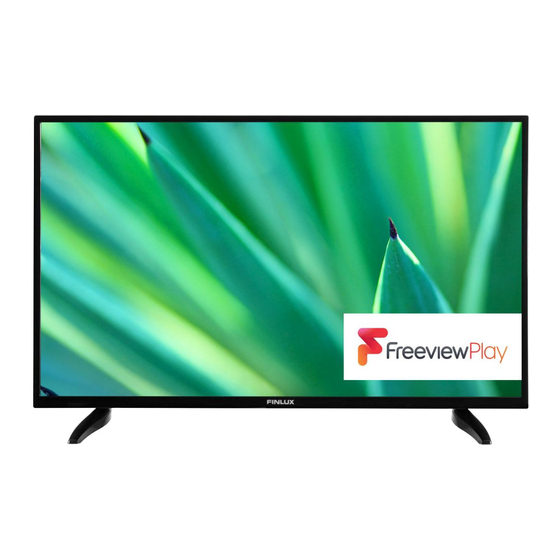

- Page 1 43 inch LED TV 43-FFB-5522 Owner’s manual...
-
Page 3: Table Of Contents
Contents Safety Information ..........2 Markings on the Product.........2 Environmental Information........3 Features ..............4 Accessories Included..........4 Standby Notifications ..........4 TV Control Switch & Operation.......4 Inserting the Batteries into the Remote ....5 Connect Power ............5 Antenna Connection ..........5 Notification ..............5 Specification ............6 Remote Control ............7 Connections............8 Switching On/Off .............9 First Time Installation..........9... -
Page 4: Safety Information
• Do not place any heat sources such as electric Safety Information heaters, radiators, etc. near the TV set. • Do not place the TV on the floor and inclined CAUTION surfaces. • To avoid danger of suffocation, keep plastic bags RISK OF ELECTRIC SHOCK DO NOT OPEN out of the reach of the babies, children and domestic... -
Page 5: Environmental Information
WARNING WALL MOUNTING WARNINGS Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the • Read the instructions before mounting your TV product may contain a coin/button cell battery. If the on the wall. coin/button cell battery is swallowed, it can cause •... -
Page 6: Features
Note: Screen Off option is not available if the Mode is set If the TV is on and it isn’t being operated for a while to Game. it will go into standby. When you next switch-on, the following message will be displayed. “TV switched to When the TV is not in use, please switch off or stand-by mode automatically because no operation disconnect the TV from the mains plug. -
Page 7: Inserting The Batteries Into The Remote
Changing Channels and Volume For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing You can change the channel and adjust the volume Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD by using the Volume +/- and Programme +/- buttons and the Symbol together are registered trademarks of on the remote. -
Page 8: Specification
Wireless LAN Transmitter Specifications Specification Max Output PAL BG/DK/II’ Frequency Ranges Power TV Broadcasting SECAM BG/DK 2400 - 2483,5 MHz (CH1-CH13) < 100 mW VHF (BAND I/III) - UHF Receiving Channels 5150 - 5250 MHz (CH36 - CH48) < 200 mW (BAND U) - HYPERBAND 5250 - 5350 MHz (CH52 - CH64) <... -
Page 9: Remote Control
Standby: Switches On / Off the TV Remote Control TV: Displays channel list / Switches to TV Source Volume +/- Menu: Displays TV menu OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode) Back/Return: Returns to previous screen, opens index page (in TXT mode) Internet: Opens the portal page, where you can reach many web based applications... -
Page 10: Connections
Connections NOTE: When connecting a device via the YPbPr or Side Connector Type Cables Device AV input, you must use the Scart connection cables to enable Connection connection. See the illustrations (back) on the left side. | You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. -
Page 11: Switching On/Off
configure a wired or a wireless connection. After the Switching On/Off settings are completed press OK button to continue. To Switch the TV On To skip to the next step without doing anything select No and press the OK button when the message is Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz). -
Page 12: Media Browser Menu
CEC device from the Sources List menu. When Media Browser Menu new CEC source device is connected, it will be listed You can play photo, music and movie files stored on a in source menu with its own name instead of the USB disk by connecting it to your TV. - Page 13 TV Menu Contents System - Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen.
- Page 14 System - Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Headphone Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
- Page 15 System - Settings Menu Contents Conditional Access Controls conditional access modules when available. Language You may set a different language depending on the broadcaster and the country. Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.
- Page 16 This setting configures the power up mode preference. Last State and Standby Power Up Mode options are available. Virtual Remote Enable or disable the virtual remote feature. With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
-
Page 17: General Tv Operation
TV. You can change the default PIN of the CI CAM General TV Operation using this option. Using the Channel List Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country The TV sorts all stored stations in the Channel List. -
Page 18: Teletext Services
OK button. The operation method may differ After the download is complete, your Finlux TV will depending on the contents of the digital teletext. Follow reboot and show a pop-up screen of how to launch the instructions displayed on the digital teletext screen. -
Page 19: Troubleshooting & Tips
No sound After accepting the T&Cs, you will be able to access Freeview Play and enjoy everything it • Check if the TV is muted. Press the Mute button or has to offer. increase the volume to check. Automatic Download (Push) •... -
Page 20: Pc Input Typical Display Modes
PC Input Typical Display Modes AV and HDMI Signal Compatibility The following table is an illustration of some of the Source Supported Signals Available typical video display modes. Your TV may not support all resolutions. SECAM Index Resolution Frequency NTSC4.43 640x350 85Hz (SCART) -
Page 21: Supported Video File Formats For Usb Mode
Supported Video File Formats for USB Mode Extension Video Codec SPEC (Resolution) & Bit Rate .dat, vob MPEG1/2 1080P@30fps - 40 Mbps MPEG1/2, .mpg, .mpeg MPEG4 MPEG1/2, H.264, H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps MVC: .ts, .trp, .tp AVS, MVC 1080P@30fps - 62.5 Mbps Other: 1080P@30fps - 40Mbps .mp4, .mov,... -
Page 22: Supported Audio File Formats For Usb Mode
Supported Audio File Formats for USB Mode Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps .mp3, MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3... -
Page 23: Supported Subtitle File Formats For Usb Mode
Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps .wav LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz IMA-ADPCM, 384Kbps 8KHz ~ 48KHz MS-ADPCM G711 A/mu-law 64Kbps ~ 128Kbps 8KHz MPEG1/2 Layer3... -
Page 24: Supported Dvi Resolutions
Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information. 56Hz 60Hz 66Hz 70Hz 72Hz 75Hz 640x400 þ 640x480 þ þ þ... - Page 25 and display the result when complete. Connectivity Advanced Settings Highlight Advanced Settings and press the OK Wired Connectivity button. On the next screen you can change the IP To Connect to a Wired Network and DNS settings of the TV. Highlight the desired one •...
- Page 26 • The Wireless feature of the TV supports 802.11 a,b,g • Enter the Media Browser menu and the playback & n type modems. It is highly recommended that you device selection OSD will be displayed. Select your mobile device and press the OK button to continue. should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching •...
- Page 27 Distruption during playback or slow 3. Play Shared Files via Media Browser reactions Select Media Browser by using the directional buttons from the main menu and press OK. The media browser You could try the following in such a case: will then be displayed.
-
Page 28: Internet Portal
1. Enter the link below completely in the adress-bar Press the Internet button on your remote control of your web browser. to open internet portal page. You will see icons of the available applications and services on the portal http://www.nero.com/mediahome-tv screen. -
Page 29: Freeview Play Platform
Freeview Play Platform Freeview Play platform provides catch-up TV and On Demand services. Simply press the Freeview Play button on your remote control to connect to the Freeview Play platform. The Freeview Play platform can also be accessed from the main menu or internet portal. Press Menu button and select Internet. -
Page 30: Internet Browser
Internet Browser Smart Centre To use the internet browser, enter the portal first. Then Smart Centre is a mobile application running on iOS launch the Internet application on the portal. and Android platforms. With your tablet or phone, you can easily stream your favourite live shows and (*) The appearance of the internet browser logo may change programmes from your smart TV. - Page 31 Note: Internet connection is required. This tab is enabled if The streaming performance may change depending on the a portal page is in use. quality of your connection. Media Share Page SETTINGS: Configure the application to your liking. You can change; To access the Media Share widget tap on the Up- Auto-lock (Only in IOS): The screen of the device arrow on the bottom left side of the screen.
-
Page 32: Important Instructions
Important Instructions For your own safety read the following instructions carefully before attempting to connect this unit to the mains supply. MAINS (AC) OPERATION The wires in the mains lead are coloured in accordance with the following code : GREEN &... - Page 33 VESA WALL MOUNT MEASUREMENTS Hole Pattern Sizes (mm) Screw Sizes min. (mm) Length (X) max. (mm) Thread (Y) Product Fiche Commercial Brand:FINLUX Product No. 10109895 Model No. 43-FFB-5522 Energy efficiency class Visible screen size 43 inches 109 cm (diagonal,approx.) (inch/cm)
- Page 34 TR: İşbu belgede; VESTEL Elektronik Sanayi ve Ticaret HU: VESTEL Elektronik Sanayi ve Ticaret A.Ş., igazolja, hogy A.Ş., telsiz ekipmanı tipi TFT IDTV ’nin 2014/53/AB a TFT IDTV típusú rádióberendezés megfelel a 2014/53/ sayılı direktife uygun olduğunu beyan eder. AB uygunluk EU irányelvnek.
- Page 36 50388718...
