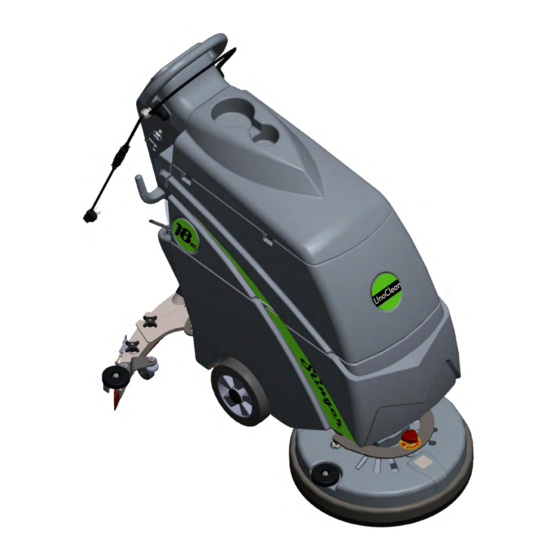

Unoclean UN18C Operator's & Parts Manual

Electric automatic floor scrubber
Hide thumbs
Table of Contents

Advertisement

Quick Links

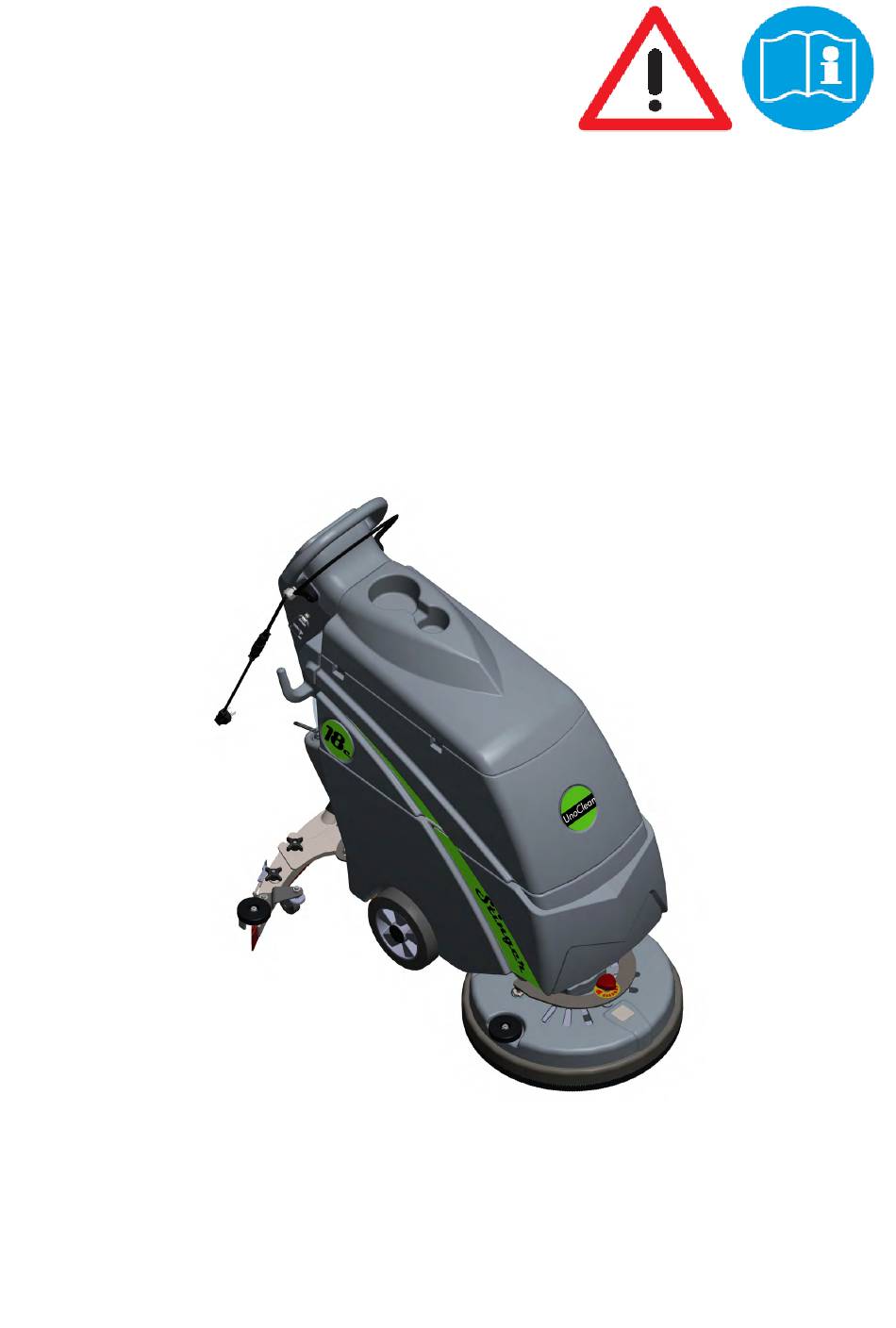

Operator & Parts Manual
Electric Automatic Floor Scrubber
Model: UN18C
UnoClean
sales@unoclean.com
8021040
www.unoclean.com
REV.01(11-2017)
847-683-9990
Full operators and parts manual is available at www.UnoClean.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UN18C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unoclean UN18C

Summary of Contents for Unoclean UN18C

  • Page 1 Operator & Parts Manual Electric Automatic Floor Scrubber Model: UN18C UnoClean sales@unoclean.com 8021040 www.unoclean.com REV.01(11-2017) 847-683-9990 Full operators and parts manual is available at www.UnoClean.com...
  • Page 2 Customer ID Number Installation Date HOW TO ORDER PARTS Only use UnoClean Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.

  • Page 3: Table Of Contents

    WEAR & TEAR PARTS LIST ....28 WIRING DIAGRAM ......29 UN18C...

  • Page 4: Safety Precautions

    – Do not operate on inclines that exceed 2%(3°). 4. Before leaving or servicing machine: – Stop on level surface. – Turn off machine. 5. When servicing machine: – Read operator's manual thoroughly prior to operating or servicing this machine. – Use manufacturer supplied or approved UN18C...
  • Page 5 To avoid electrical shock,please replace the power cord immediately if any damage is being detected. The replacement must be performed only by an authorized person or by our customer service center. Flammable materials can cause explosion or fire. Do not use flammable materials in tanks or pick them up. UN18C...

  • Page 6: Machine Components

    14. Power cord hook 15. Brush/pad driving hub 16. Brush plunger 17. Plug of water filling port 18. Knob 19. Clear tube 20. Switch for brush motor 21. Switch for vacuum motor 23. Circuit breaker 24. Power cord 25. Support wheel UN18C...

  • Page 7: Machine Setup & Installation

    *Depending on the dirty level of the ground, add the proper amount of detergent into the solution tank. Do not put any flammable materials into solution tank. This can cause an explosion or a fire. Only use recommended cleaning chemicals. Contact your janitorial supply distributor for recommendations on proper chemicals. UN18C...

  • Page 8: Machine Operation

    Any time scrubbing is completed, or when refilling solution tank, the recovery tank should be drained and cleaned. If the recovery tank is not drained when the solution tank has been refilled, foam or water may enter the float shut-off mechanism and cause damage to the vacuum motor. UN18C...
  • Page 9 4) Screw off the cover of the water filter(11) to compeletly exhaust the tank and check the filter screen, clean it up if necessary. 5) Screw up the cover of the water filter(11),bu sure to install the screen and the "O" ring in the correct position. filter screen "O" ring filter cover UN18C...

  • Page 10: Preventative Maintenance

    4) Check the machine for leaks. MOTOR MAINTENANCE 1) Contact your local UnoClean Distributor for any motor maintenance. 2) Check the motor brushes every 250 hours, Replace the brushes when they are worn to a length of 10mm or less.

  • Page 11: Basic Troubleshooting

    OPERATOR MANUAL BASIC TROUBLESHOOTING PROBLEM CAUSE SOLUTION The wiring not connected Check the wiring or contact UnoClean correctly or bad wiring Distributor No Power Bad brush motor Contact UnoClean Distributor Carbon brushes worn out Contact UnoClean Distributor The wiring not connected...

  • Page 12: Technical Specification

    138lbs / 62.5kg Machine Length 45.87in / 1165mm Machine Height 40.35 in / 1025mm Machine Width 20.5in / 520mm Power cord Length 82ft / 25m Max Gradient Type of Drive Brush assisted Noise Level 70 dB Working Vacuum 155 mbar UN18C...

  • Page 13: Parts List

    PARTS LIST RECOVERY TANK ASSEMBLY UN18C...
  • Page 14 SELfLOCKING NUT M6 1411612 PLAIN WASHER 6×12×1.6 8011007 MUffLER 8112005 GASKET 8112006 BOLT 1111605 HEX NUT M6 8021032 DECAL,RIGHT 8023005 UnoClean LOGO 8011009 PLATE 1421409 PLAIN WASHER 4×9×0.8,SS 8111015 fLOAT CAGE 8111014 fLITER COUPLING 1021616 HEX HEAD BOLT M6×16 8111001 GASKET 8113007...
  • Page 15 PARTS LIST COVER TANK ASSEMBLY COVER TANK ASSEMBLY PART DESCRIPTION NO NUMBER REQ'D 8012005 COVER TANK 8012003 WARNING LABLE 8011005 8012002 GASKET UN18C...
  • Page 16 PARTS LIST SOLUTION TANK ASSEMBLY UN18C...
  • Page 17 1021820 HEX HEAD SCREW M8×20,SS 8115200 8" WHEEL 1612607 BALL BEARING, 6004LU 1421828 PLAIN WASHER 8×28×3 8115206 WHEEL CAP 1962025 HOSE CLAMP 8023004 DECAL,RIGHT 8013002 BACKET 1221510 PH SCREW M5×10,SS 1421510 PLAIN WASHER 5×10×1,SS 8113009 WIRE CLAMP 8023003 DECAL,LEfT UN18C...
  • Page 18 CONTROL BOX ASSEMBLY CONTROL BOX ASSEMBLY PART DESCRIPTION NUMBER REQ'D 1421409 PLAIN WASHER 4×9×0.8 1211516 PH SCREW M5×16 1113305 SELfLOCKING NUT M3 1021820 HEX HEAD BOLT M8×20 1411824 PLAIN WASHER 8×24×2 1113507 SELfLOCKING NUT M5 8114030 fIXING BRACKET,CONTROL BOX 8113104 HANDLE UN18C...
  • Page 19 1432411 SPRING WASHER 4 8014033 PLATE 8024022 CONTROL TRIGGER 1534608 SET SCREW M6×8 8014031 HEX BUSHING 8014032 SPRING ROD 8014035 SPRING 1211325 PH SCREW M3×25 1411309 PLAIN WASHER 3×9×0.8 8014071 SWITCH 8014061 SWITCH BRACKET 8014002 REAR PANEL 8014034 BRACKET UN18C...
  • Page 20 PARTS LIST BRUSH ASSEMBLY UN18C...
  • Page 21 PLAIN WASHER 6×18×1.6,SS 1221510 SH SCREW M5×10 1212410 SH SCREW M4×10 8015060 WATER INLET 8015041 MOTOR BRACKET 8015005 BRUSH COVER 1222510 SH SCREW M5×10 1421518 PLAIN WASHER 5×18×2,SS 1422513 SPRING WASHER 5 1221515 PH SCREW M5×15 1221616 PH SCREW M6×16 UN18C...
  • Page 22 SELfLOCKING NUT M10 8015115 NyLON WASHER 10.5×30×2.5 8015121 SPACER 13×10.5×5.5 8015002 BRACKET 8116004 DETENT RING 1656432 KEy 6.35×32 8015003 SPACER 25.5×19.5×5 8115004 SPRING Δ PART DESCRIPTION NO NUMBER REQ'D 9050018 BRUSH 18" 9040017 PAD DRIVER 17" 9000001 BIG MOUTH UN18C...
  • Page 23 PARTS LIST SQUEEGEE HOLDER ASSEMBLY UN18C...
  • Page 24 1021616 HEX HEAD SCREW M6×16,SS 1021230 HEX HEAD BOLT M12×30,SS 1421132 PLAIN WASHER 12×32×2.0 8035001 PLASTIC WASHER 12×30×1.5 8115004 SPRING 8115405 SLEEVEE, P/M 8037010 BRACKET, SQUEEGEE 1123115 SELfLOCKING NUTS M12 8115001 SQUEEGEE SUPPORT 8037015 PIN 12×70 1645324 COTTER PIN UN18C...
  • Page 25 8018006 BALL VALVE 微型球阀 8013006 90º JOINT 90 度接头 8119101 fILTER BODy 过滤器体 1622765 O RING O 形圈 8119103 fILTER SCREEN 过滤网 8119102 fILTER COVER 过滤器盖 1421409 PLAIN WASHER 4×9×0.8,SS 不锈钢平垫圈 4×9×0.8 1221412 PH SCREW M4×12, SS 不锈钢十字盘头螺钉 M4×12 UN18C...
  • Page 26 PARTS LIST SQUEEGEE ASSEMBLY UN18C...
  • Page 27 SQUEEGEE BLADE, fRONT, LINATEX 8118001 SQUEEGEE BLADE, fRONT, PU (OPTION) 8118610 SHORT CLAMP ASSEBLy 1221575 SCREW M5×75 8118200 LEfT BRACKET 1121008 HEX NUT M10 8118600A CLAMP ASSEMBLy 8118624 SHAfT 8118623 SPACER 1123507 LOCK NUT M5 8011003 VACUUM HOSE 8118000BK SQUEEGEE ASSEMBLy, LINATEX UN18C...

  • Page 28: Wear & Tear Parts List

    WEAR & TEAR PARTS LIST WEAR & TEAR PARTS LIST PART NO. DESCRIPTION QTY. 8115200 8 INCH WHEEL 8116078 BUMPING WHEEL 8118022 REAR SQUEEGEE 8118021 FRONT SQUEEGEE 9040017 PAD HOLDER 17" 9050018 BRUSH 18" UN18C...

  • Page 29: Wiring Diagram

    OPERATOR MANUAL WIRING DIAGRAM UN18C...
