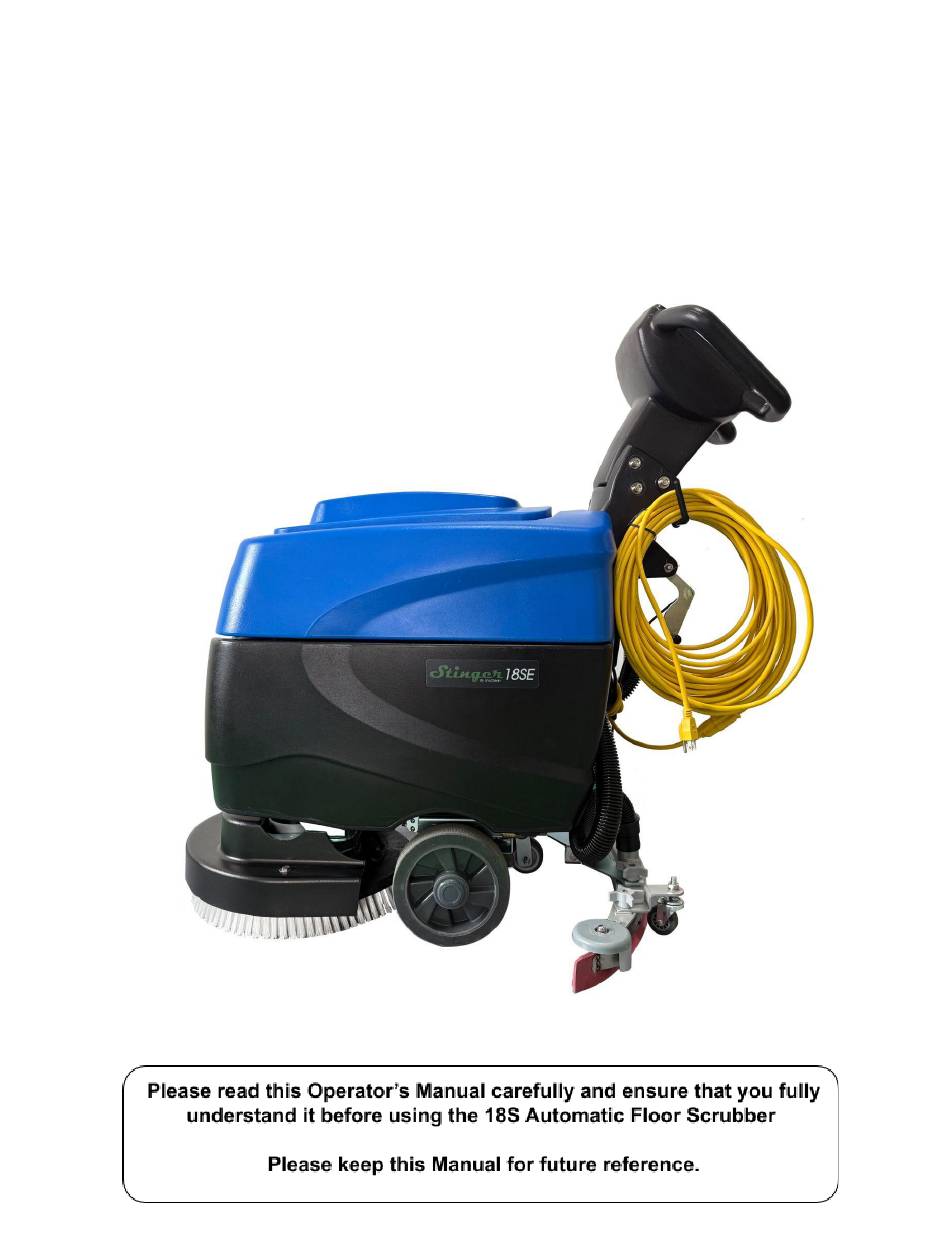

- Page 1 18SE Automatic Floor Scrubber Corded Electric Version Operator’s Manual UnoClean 224-654-6500...
- Page 2 ● Avoid moving parts, and do not wear loose-fitting clothing while servicing the machine. WARNING: Flammable materials can cause an explosion or fire. Do not use flammable materials in tanks. WARNING: Flammable materials or reactive metals can cause explosion or fire. Do not pick up flammable materials. UnoClean 224-654-6500...
-
Page 3: Machine Set Up & Installation
2. When using the bucket fill-port, stop filling when the solution level reaches the bottom edge of the fill-port. NOTE: When filling the solution tank with a bucket: ● Ensure the bucket is clean. ● Do not use the same bucket for filling and draining the machine. UnoClean 224-654-6500... -
Page 4: While Operating Machine
WARNING: Never place flammable materials into the solution tank, as this could lead to an explosion or a fire. Only use recommended cleaning chemicals. For guidance on the proper chemicals, contact UnoClean. Stinger Auto-Scrub Floor and Mat Cleaner Part **Recommended cleaning solution 18S -... -
Page 5: Circuit Breaker
If the circuit breaker trips, it cannot be reset immediately. First identify the cause of the trip, and allow electronic components to cool down before manually resetting the circuit breaker. NOTE: Contact UnoClean for machine repair service centers in your area. TANK DRAINING 1. Turn the machine off. -
Page 6: Preventative Maintenance
4. Check the machine for leaks. MOTOR MAINTENANCE 1. Contact UnoClean for any motor maintenance. 2. The motor should have the brushes checked every 250 hours. Brushes should be replaced when they are worn to a length of 10 mm (⅜ inch) or less. -
Page 7: Main Technical Parameters
Squeegee width 30.7 ins. Solution tank 9 gal. Recovery tank 10 gal. Brush motor power 380W Brush speed 175 rpm Brush pressure 28kg Suction motor power 550W Vacuum 180mbar Noise level 68dB Weight 165 lbs Size 45*19*43 inches UnoClean 224-654-6500... - Page 8 1. Control panel 2. Recovery tank 3. Recovery tank cover 4. Cap 5. Guard wheel 6. Brush pad 7. Main wheel 8. Solution tank 9. Drain out hose assembly UnoClean 224-654-6500...
-
Page 9: How To Operate The Machine
1) Check if the hose assembly is properly installed 2) Check if the brush is installed correctly 3) Ensure the working surface is sufficient to support the weight of the machine 4) Ensure that the recovery tank cover is closed before use UnoClean 224-654-6500... -
Page 10: Squeegee Installation
Loosen the (2) four-star nuts on the hose assembly and connect the suction pipe to the suction port on the boring head assembly. Align the four-star nut with the slot of the boring bracket and tighten the nut UnoClean 224-654-6500... - Page 11 4. Press the brush button switch to fully lock the brush or pad driver 5. To remove the brush or pad driver, disconnect the power supply and turn the brush or pad driver clockwise or counterclockwise until it becomes loose. UnoClean 224-654-6500...
-
Page 12: Troubleshooting
Emptying the recovery tank Vacuum motor inlet blockage Check the vacuum motor inlet, clear the blockage, clean the filter cotton Vacuum motor loose Tighten the motor mounting screws, taking care not to over tighten to avoid damaging the motor UnoClean 224-654-6500... - Page 13 Notes: UnoClean 224-654-6500...
