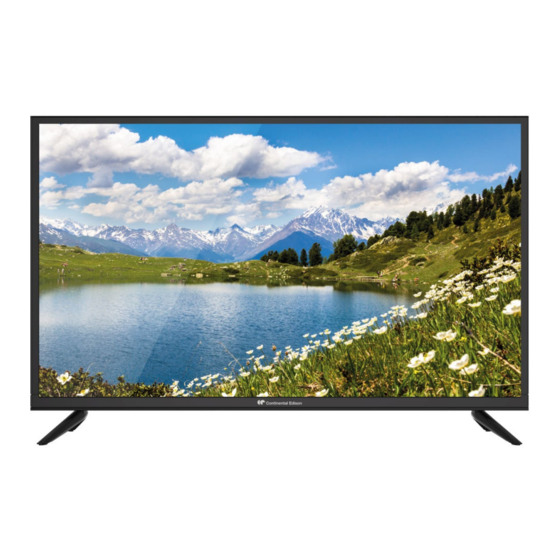

- Page 1 CELED3219B7 32" SCREEN LED TV User manual...
- Page 2 IMPORTANT WARNINGS AND SAFETY ADVICE We invite you to read this user manual carefully and completely before installing and using your device. It is important that this user manual be kept with the device for further consultation. If this device is to be transferred to another person, make sure the user manual follows the device so that the new user can be informed of the operation of the device.
- Page 3 CAUTION: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR SERIOUS INJURY: ● This device must only be connected to a mains network whose characteristics are identical to those shown on the device identification plate. ● The mains plug must always be easily accessible. It serves as a mains disconnecting switch of the device.
- Page 4 consult the after-sales service or repair centre. Never attempt to make repairs yourself, this could be potentially dangerous. ● Do not attempt to open or disassemble the device. This would expose you to dangerous voltages. ● The slots and openings of the device are intended for ventilation and to ensure its operation.
- Page 5 temperatures or direct sunlight for prolonged periods. ● Keep the product away from magnetic objects, motors and transformers. ● Do not use the product outdoors, regardless of weather conditions. ● Install the device only on a stand (furniture, wall…) that can support its weight safely.
- Page 6 CAUTION: - TO AVOID EYE HAZARDS: ● It is best to have soft indirect lighting to watch TV. Avoid completely dark environments and any reflection on the screen, as these can cause eyestrain. USE AND HANDLING OF BATTERIES: ● CAUTION: danger of explosion if the batteries are not inserted correctly or if they are replaced by a non-similar or incompatible model.
- Page 7 To avoid possible hearing damage, do not listen at a high sound level for a long time. EU Declaration of Conformity: Market Maker Brand Licensing hereby declares that the device complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The Declaration of Conformity can be viewed at the following address: http ://www.mms-support.net/OTA/ECD_MMBL_CELED3219B7.pdf...
-
Page 8: Table Of Contents
SUMMARY DESCRIPTION OF THE DEVICE ........................10 Description of the TV ........................... 10 Remote control ............................ 12 TECHNICAL CHARACTERISTICS ......................... 14 III. INSTALLATION ............................16 Unpacking ............................16 Wall mounting ............................. 16 Installing the feet ..........................17 Basic connections ..........................18 OPERATION ............................ - Page 9 This user manual, any modifications or any new version, is available on our website. Information on the meaning of the conformity marking The CE marking indicates that the product meets the main requirements of the European Directives 2014/35/EU (Low Voltage), 2014/30/EU (Electromagnetic Compatibility), 2014/53/EU (Radio Equipment), 2011/65/EU (Limitation of use of certain hazardous substances in electronic equipment).
-
Page 10: Description Of The Device
I. DESCRIPTION OF THE DEVICE A. Description of the TV Front view of the TV 1- LED screen. 2- Feet. 3- IR (Infrared) sensor for remote control/power indicator. 4- Multi-Function Key: press below to display menu below, press briefly to move the cursor to the right and then press to confirm the selection: switches the television on or off. - Page 11 Back view of the TV COAX. : to connect an external amplifier via a coaxial cable. CI (Common Interface) INPUT: common Interface card reader. Mini AV IN: connect a VCR or DVD player. Mini YPbPr: to connect the YPbPr cable of a VCR or DVD player. Mini AV OUT: connect a VCR or DVD player.
-
Page 12: Remote Control
B. Remote control 1- POWER (STANDBY) To put the TV on standby or turn it on. 2- MUTE To turn off the sound. 3- NUMERIC KEYS Press the keys to directly dial the channel number you want to view. 4- -/-- To change the decimal. - Page 13 19- EPG To view the digital program guide. 20- SMODE To switch between different audio modes. 21- PMODE To switch between picture modes. 22- SLEEP To set the time before standby. 23- TEXT To display teletext. 24- SIZE Press repeatedly to change the picture size in Teletext mode.
-
Page 14: Technical Characteristics
II. TECHNICAL CHARACTERISTICS Reference CELED3219B7 Model KDI32ML662ATS Display TV LED HD 32” Resolution 1366 x 768 pixels Colour display 16.7M Contrast 1200:1 Ratio 16:9 Service life 25.000 hours HD DTV (receives digital channels, satellite, TV guide, teletext display, multi- Tuner... - Page 15 PRODUCT DATA SHEET RELATING TO ENERGY Brand CONTINENTAL EDISON CELED3219B7 Reference (Model: KDI32ML662ATS) Energy efficiency class Visible screen diagonal 80 cm; 31.5 inches Power consumption in On mode (W) Energy consumption (kWh per year), based on the power...
-
Page 16: Installation
III. INSTALLATION A. Unpacking Your TV must be unpacked and handled by 2 persons to avoid any risk of deformation or shock on the LED screen. Start by preparing a flat surface covered with a soft, thick cloth (for example, a blanket). The prepared surface should be larger than the size of the TV. -
Page 17: Installing The Feet
C. Installing the feet Your TV comes with unassembled feet. Before using this free standing TV on furniture, install the feet as shown below. Step 1 Place the TV flat, screen facing down, on a flat surface covered with a soft, thick cloth to avoid damaging it. -
Page 18: Basic Connections
D. Basic connections • Make sure all cables are disconnected from the main unit before connecting the mains cable to the wall outlet. • Read the instructions carefully before connecting any other device. Connect to an outdoor antenna (ANT T2) Plug an antenna into the T2 antenna terminal to get the best possible picture quality. - Page 19 COAXIAL connection Use a COAXIAL cable to connect the TV to an amplifier or another audio decoding device for audio output. (The COAXIAL cable is not supplied) Mini AV connection AV cable (not supplied) Back of the external terminal NOTE: when connecting an external device, match the colour of the terminal to that of the cable.
- Page 20 Mini YPbPr connection AV cable (not supplied) YPbPr cable (not supplied) Back of the external terminal NOTE: when connecting an external device, match the colour of the terminal to that of the cable. Mini AV connection out Video cable (not provided) Back of the external terminal NOTE: this connection only works in DTV or Satellite mode.
- Page 21 CI input terminal The CI card is not supplied. HDMI connection Back of the external terminal Use an HDMI cable to connect the TV to another device to receive a high-definition multimedia signal. HDMI cable (not supplied) USB input terminal The USB stick is not supplied.
-
Page 22: Operation
IV. OPERATION A. First installation Connect the mains cable to a wall outlet and then turn on the TV. On the first startup, the following menu appears: Language Press ◄/► to select the menu language, then press ▼ to highlight the next line. Country Press ▲/▼... -
Page 23: Main Menu (Tv Settings)
available are: DTV, DVB-C, Satellite). Press the OK key to start automatic channel search. B. Main menu (TV settings) The TV has different settings menus. Once the choices have been made, they will remain in memory until they are changed, even if the TV is set to standby. Principles of navigation in the MENU •... - Page 24 Audio language settings • Press the AUDIO key to display the available audio languages. • Press ▲/▼ to select the desired audio and the OK key to confirm and exit. NOTE: before enabling this function, make sure that the channel supports multi-audio language options.
- Page 25 • Press ◄/► to select the desired option. Press the OK key to confirm the selection. • If the toolbar is hidden, press the EXIT key to display it again. • Press the key to show the confirmation window. Press ◄/► to pause or continue recording.
- Page 26 Press ◄/► to select the desired option, then press the OK key to display the next page. 1. Photo Press ◄/► to select Photo from the main menu, then press the OK key to display the next page. Press ◄/► to select the disc you want to browse, then press the OK key to select it. Press ▼/▲/◄/►...
- Page 27 Forward : allows fast playback of the music. Previous : to play the previous track. Next : to play the next track. Stop : to stop playback and return to the previous folder. Repeat All : to select the repeat mode: Repeat one/ALL/none. Mute : to turn off the sound.
-
Page 28: Setup
Press ◄/► to select an option, then press the OK key to confirm the selection. Previous page : to view the previous page. Next page : to view the next page. Previous : to read the previous text file. Next : to read the next text file. Stop : to stop playback and return to the previous folder. -
Page 29: Channel Menu
1. Channel menu Press the MENU key to display the main menu. Press ◄/► to select CHANNEL from the main menu and press ▼ to access the settings. 1- Press ▲/▼ to select the option to set in the CHANNEL menu. 2- Press ▼/▲/◄/►... - Page 30 Tune type Press ▼/▲ to select Tune type, then press ◄/► to adjust. Press ▼ to highlight the next line. Digital type Press ▼/▲ to select Tuning type, then press◄/► to adjust. Press the OK key to start automatic channel search. ATV Manual Tuning ATV manual Tuning, then press the OK key to display the submenu.
-
Page 31: Picture Menu
• Press the RED key to delete a program. Signal information Press ▲/▼ to select Signal Information, then press the OK button to display signal information. CI Information (Common interface) Press ▲/▼ to select CI Information, then press the OK key or ► to display the submenu. 2. -
Page 32: Sound Menu
Tint Press ▲/▼ to select Tint, then press ◄/► to set the option. NOTE: the "hue" option is available in NTSC only. Sharpness Press ▲/▼ to select Sharpness, then press ◄/► to set the option. Colour Temp Press ▲/▼ to select Colour Temp, then press the OK key to display the submenu. Press ▲/▼ to set the option. -
Page 33: Time Menu
Sound Mode Sound Mode, then press the OK button to display the sub-menu. Press Press ▲/▼ to select ▲/▼ to set the option. The available sound modes are: Standard, Music, Video, Sport, Customised. Treble Press ▲/▼ to select Treble, then press ◄/► to set the option. Bass Press ▲/▼... -
Page 34: Lock Menu
1- Press ▲/▼ to select the option to set in the TIME menu. 2- Press ◄/► to adjust the desired setting. 3- Press the MENU key to return to the previous menu. 4- Once the settings have been made, press the EXIT key to exit the settings page. Clock Press ▲/▼... - Page 35 1- Press ▲/▼ to select the option to set in the LOCK menu. 2- Press ◄/► to adjust the desired setting. 3- Press the MENU key to return to the previous menu. 4- Once the settings have been made, press the EXIT key to exit the settings page. System lock Press ▲/▼...
-
Page 36: Setup Menu
Hotel Mode Press ▲/▼ to select Hotel Mode, then press the OK key to display the submenu. NOTE: we recommend the use of Hotel mode only in a hotel environment. You should avoid using it at home. 6. Setup menu Press the MENU key to display the main menu. -
Page 37: Av And Other Modes
Subtitle language Press ▲/▼ to select Subtitle language, then press the OK key to display the submenu. Press ▲/▼/◄/► to select the language. Hearing impaired Press ▲/▼ to select Hearing impaired, then press ◄/► to turn the option on or off. PVR File System Press ▲/▼... -
Page 38: Maintenance And Cleaning
V. MAINTENANCE AND CLEANING Before servicing your TV, make sure it is turned off and the mains cable is unplugged. • Wipe the TV with a soft, dry cloth. • If the surface is very dirty, wipe it with a soft cloth that is lightly moistened with water. Then wipe again with a dry, soft cloth. -
Page 39: Troubleshooting Tips
VI. TROUBLESHOOTING TIPS Some malfunctions can be easily solved. Before calling the after-sales service or a repairer, please refer to the following table: Symptoms Solutions • Check the mains cable connection. The TV does not turn on. • Carefully plug the mains cable into another wall outlet. •... - Page 40 Symptoms (continued) Solutions ( continued) • Check that your area is covered by DTV broadcast. • Check if channels are not blocked by the "Edit channel" Only some channels are available. settings. • Perform the checks to be carried out in case of poor image quality.
-
Page 41: Warranty
CONTINENTAL EDISON. The warranty will be void if the nameplate and/or serial number of the product are removed. -
Page 42: Disposal
You have the obligation to use the selective collection systems available to you. Continental Edison – 120-126 Quai de Bacalan – CS 11584 – 33000 Bordeaux Importé par : Market Maker Brand Licensing - 79/81 Ancienne Route Nationale 7 - 69570 DARDILLY – France... - Page 43 CELED3219B7_102018_V1...
