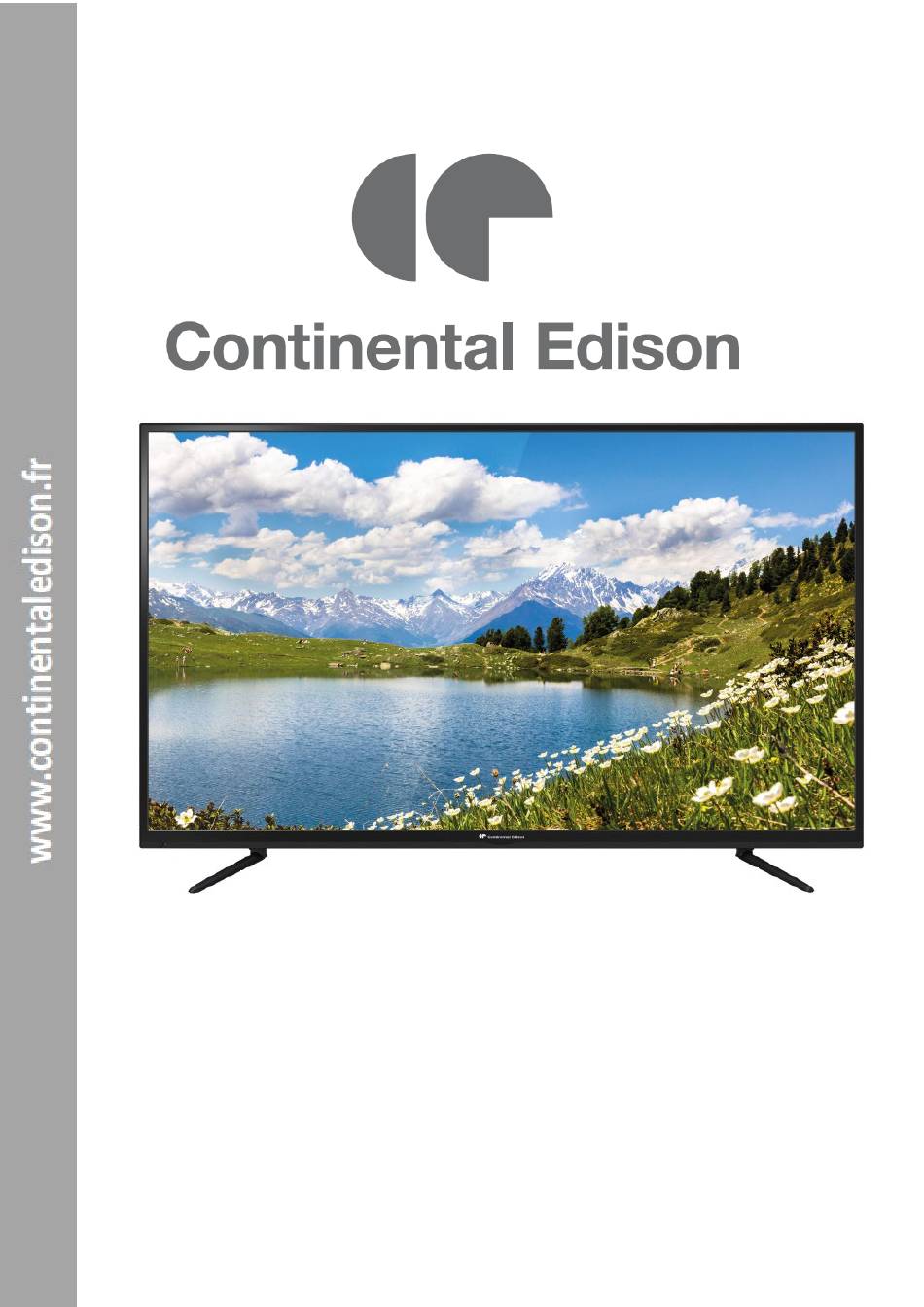

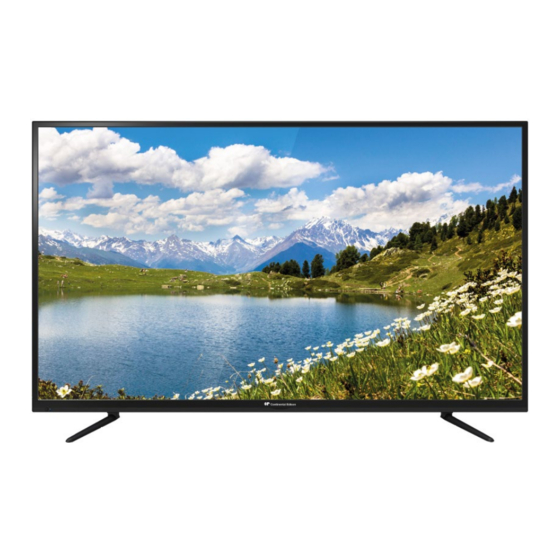

- Page 1 CELED604K1018B7 60" SCREEN UHD LED TV User manual...
- Page 2 IMPORTANT WARNINGS AND SAFETY ADVICE We invite you to read this user manual carefully and completely before installing and using your device. It is important that this user manual be kept with the device for further consultation. If this device is to be transferred to another person, make sure the user manual follows the device so that the new user can be informed of the operation of the device.
- Page 3 CAUTION: - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR SERIOUS INJURY: ● This device must only be connected to a mains network whose characteristics are identical to those shown on the device identification plate. ● The mains plug must always be easily accessible. It serves as a mains disconnecting switch of the device.
- Page 4 consult the after-sales service or repair centre. Never attempt to make repairs yourself, this could be potentially dangerous. ● Do not attempt to open or disassemble the device. This would expose you to dangerous voltages. ● The slots and openings of the device are intended for ventilation and to ensure its operation.
- Page 5 temperatures or direct sunlight for prolonged periods. ● Keep the product away from magnetic objects, motors and transformers. ● Do not use the product outdoors, regardless of weather conditions. ● Install the device only on a stand (furniture, wall…) that can support its weight safely.
- Page 6 CAUTION: - TO AVOID EYE HAZARDS: ● It is best to have soft indirect lighting to watch TV. Avoid completely dark environments and any reflection on the screen, as these can cause eyestrain. USE AND HANDLING OF BATTERIES: ● CAUTION: danger of explosion if the batteries are not inserted correctly or if they are replaced by a non-similar or incompatible model.
- Page 7 To avoid possible hearing damage, do not listen at a high sound level for a long time. EU Declaration of Conformity: Market Maker Brand Licensing hereby declares that the device complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The Declaration of Conformity can be viewed at the following address: http://www.mms-support.net/OTA/ECD_MMBL_CELED604K1018B7.pdf...
-
Page 8: Table Of Contents
SUMMARY DESCRIPTION OF THE DEVICE ................... 10 Description of the TV ....................... 10 Remote control ........................ 12 TECHNICAL CHARACTERISTICS ..................14 III. INSTALLATION ........................16 Unpacking ........................16 Wall mounting ......................... 16 Installing the feet ......................17 Basic connections ......................18 OPERATION........................ - Page 9 This user manual, any modifications or any new version, is available on our website. Information on the meaning of the conformity marking The CE marking indicates that the product meets the main requirements of the European Directives 2014/35/EU (Low Voltage), 2014/30/EU (Electromagnetic Compatibility), 2014/53/EU (Radio Equipment), 2011/65/EU (Limitation of use of certain hazardous substances in electronic equipment).
-
Page 10: Description Of The Device
I. DESCRIPTION OF THE DEVICE A. Description of the TV Front view of the TV 1- LED screen. 2- IR (Infrared) sensor for remote control / power indicator. 3- Feet. 4- INPUT: to select the input source. 5- MENU : to display the settings menu. 6- CH + / CH - : to scroll through the channels to the next or the previous one. - Page 11 Back view of the TV OPTICAL : optical output. L / R / Video (AV): to connect the source of a VCR or DVD player. YPbPr: to connect the YPbPr cable of a VCR or DVD player. AUDIO: to broadcast the sound of an external terminal on the TV. Use a 3.5mm stereo cable to connect the PC to the TV.
-
Page 12: Remote Control
B. Remote control 1- POWER To put the TV on standby or turn it on. 2- MUTE To turn off the sound. 3- NUMERIC KEYS Press the keys to directly dial the channel number you want to view. - / -- To enter the channel number directly. - Page 13 20- EXIT To exit the menu page. 21- TEXT To display teletext. 22- INDEX To display the list of recordings or the teletext index. 23- MIX/T / TV and TXT images are mixed on a transparent background./ To pause the current DTV program, and start recording in the background.
-
Page 14: Technical Characteristics
II. TECHNICAL CHARACTERISTICS Reference CELED604K1018B7 Model D60RWA14-U-T2 Display 60" UHD LED TV Resolution 3840 x 2160 pixels Colour display 16.7M Contrast 4000:1 Ratio 16:9 Service life 30.000 hours DTV HD (digital channel reception, TV guide, teletext display, multi- Tuner language display) - Page 15 User manual ............................1 piece The images provided in this manual are for illustrative purposes only, refer to the actual product for confirmation. PRODUCT DATA SHEET RELATING TO ENERGY Brand CONTINENTAL EDISON CELED604K1018B7 Reference (Modèle: D60RWA14-U-T2) Energy efficiency class Visible screen diagonal 152 cm;...
-
Page 16: Installation
III. INSTALLATION A. Unpacking Your TV must be unpacked and handled by 2 persons to avoid any risk of deformation or shock on the LED screen. Start by preparing a flat surface covered with a soft, thick cloth (for example, a blanket). The prepared surface should be larger than the size of the TV. -
Page 17: Installing The Feet
C. Installing the feet Your TV comes with unassembled feet. Before using this free standing TV on furniture, install the feet as shown below. Step 1 Place the TV flat, screen facing down, on a flat surface covered with a soft, thick cloth to avoid damaging it. The lower edge of the TV should protrude slightly from the edge of the flat surface to allow the feet to be attached without damaging the LED screen. -
Page 18: Basic Connections
D. Basic connections • Make sure all cables are disconnected from the main unit before connecting the mains cable to the wall outlet. • Read the instructions carefully before connecting any other device. Connect to an outdoor antenna (ANT) Plug an antenna into the antenna terminal to get the best possible picture quality. The use of antenna amplifiers is optional or depends on the type of outdoor antenna used. - Page 19 AV connection AV cable (Not included) Rear of the external terminal NOTE: when connecting an external device, match the colour of the terminal to that of the cable. YPbPr and audio connection YPbPr cable (Not included) AV cable (not included) Rear of the external terminal NOTE: when connecting an external device, match the colour of the terminal to that of the cable.
- Page 20 Audio connection Audio cable (Not included) Rear of the external terminal Use an AUDIO cable to connect the TV to an audio amplifier. HDMI connection HDMI cable (Not included) Use HDMI cable to connect the unit with other devices to receive high-definition multimedia signal.
- Page 21 USB input terminal The USB device is not supplied. BEFORE CONTINUING, CHECK THAT ALL EQUIPMENT AND THEIR MAINS CABLES ARE CONNECTED AND CONFIGURED CORRECTLY.
-
Page 22: Operation
IV. OPERATION A. First Time installation Connect the mains cable to a wall outlet and then turn on the TV. On the first startup, the following menu appears: OSD menu language Press ◄/► to select the menu language, then press ▼ to highlight the next line. Country Press ▲/▼... -
Page 23: Main Menu (Tv Settings)
Digital Type Press ▲/▼ to select Digital Type, then press ◄/► to select the corresponding TV reception mode for your connection. Press the OK key to start automatic channel search. B. Main menu (TV settings) • The TV has different settings menus. Once the choices have been made, they will remain in memory until they are changed, even if the TV is set to standby. - Page 24 Audio language settings • Press the AUDIO key to display the available audio languages. • Press ▲/▼ to select the desired audio and the OK key to confirm and exit. NOTE: before enabling this function, make sure that the channel supports multi-audio language options.
- Page 25 Subtitles • Press the SUBTITLE key to display the list of available subtitles. • Press ▲/▼ to select the desired subtitle track, then press the OK key. NOTE: before enabling this function, make sure that the channel supports multiple subtitle language options.
- Page 26 Press ◄/► to select the desired option, then press the OK key to display the next page. 1. Movie Press ◄/► to select Movie from the main menu, then press the OK key to display the next page. Press ◄/► to select the disc you want to browse, then press the OK key to select it. Press ▼/▲/◄/►...
- Page 27 2. Photo Press ◄/► to select Photo from the main menu, then press the OK key to display the next page. Press ◄/► to select the disc you want to browse, then press the OK key to select it. Press ▼/▲/◄/► to select a photo file and press the OK key to view it. All images in the folder will be displayed automatically.
-
Page 28: Setup
Repeat All: to select the repeat mode: Repeat one/ALL/none. Set A: allows you to play music between 2 points, A and B, previously selected by pressing this key. Mute : to turn off the sound. Playlist: to view the playlist. Info: to view information about the audio file. -
Page 29: Channel Menu
• Press the INPUT key to view the list of sources. • Press ▲/▼ to select the source to use. Press the OK key to select the source. 1. Channel menu Press the MENU key to display the main menu. Press ◄/►... - Page 30 Press ▼/▲/◄/► to select the desired country, search type and reception mode, then press the OK key to start automatic channel search. ATV manual tuning Press ▲/▼ to select ATV manual tuning, then press the OK key to display the submenu. DTV manual tuning Press ▲/▼...
-
Page 31: Picture Menu
you use the CH+/- keys to scroll through the channels. The FAV key to add a channel to the list of favourite channels. • Schedule list (PVR recording) Press ▲/▼ to select Schedule list, then press the OK key to display the submenu. •... -
Page 32: Sound Menu
Colour Press ▲/▼ to select Colour, then press ◄/► to set the option. Tint Press ▲/▼ to select Tint, then press ◄/► to set the option. NOTE: the "tint" option is available in NTSC only. Sharpness Press ▲/▼ to select Sharpness, then press ◄/► to set the option. Colour temp. -
Page 33: Time Menu
3- Press the MENU key to return to the previous menu. 4- Once the settings have been made, press the EXIT key to exit the settings page. Sound mode Press ▲/▼ to select Sound mode, then press the OK key to display the submenu. Press ▲/▼... - Page 34 1- Press ▲/▼ to select the option to set in the TIME menu. 2- Press ◄/► to adjust the desired setting. 3- Press the MENU key to return to the previous menu. 4- Once the settings have been made, press the EXIT key to exit the settings page. Clock Press ▲/▼...
-
Page 35: Lock Menu
5. Lock menu Press the MENU key to display the main menu. Press ◄/► to select LOCK from the main menu and press ▼ to access the settings. 1- Press ▲/▼ to select the option to set in the LOCK menu. 2- Press ◄/►... -
Page 36: Settings Menu
Hotel mode Press ▲/▼ to select Hotel mode, then press the OK key to display the submenu. NOTE: we recommend the use of Hotel mode only in a hotel environment. You should avoid using it at home. 6. Settings menu Press the MENU key to display the main menu. -
Page 37: Av And Other Modes
▲/▼/◄/► to select the language. Hearing impaired Press ▲/▼ to select Hearing impaired, then press ◄/► to turn the option on or off. PVR file system Press ▲/▼ to select PVR file system, then press the OK key to display the submenu. This menu displays all information about the connected USB media. -
Page 38: Maintenance And Cleaning
V. MAINTENANCE AND CLEANING Before servicing your TV, make sure it is turned off and the mains cable is unplugged. • Wipe the TV with a soft, dry cloth. • If the surface is very dirty, wipe it with a soft cloth that is lightly moistened with water. Then wipe again with a dry, soft cloth. -
Page 39: Troubleshooting Tips
VI. TROUBLESHOOTING TIPS Some malfunctions can be easily solved. Before calling the after-sales service or a repairer, please refer to the following table: Symptoms Solutions • Check the mains cable connection. The TV does not turn on. • Carefully plug the mains cable into another wall outlet. •... - Page 40 Symptoms (continued) Solutions ( continued) • Check that your area is covered by DTV broadcast. • Check if channels are not blocked by the "Edit channel" Only some channels are available. settings. • Perform the checks to be carried out in case of poor image quality.
-
Page 41: Warranty
4. any improper maintenance operation, use that is not in accordance with the product instructions or incorrect voltage connection; 5. any use of accessories not supplied or approved by CONTINENTAL EDISON. The warranty will be void if the nameplate and/or serial number of the product are removed. -
Page 42: Disposal
You have the obligation to use the selective collection systems available to you. Continental Edison – 120-126 Quai de Bacalan – CS 11584 – 33000 Bordeaux Imported by: Market Maker Brand Licensing - 79/81 Ancienne Route Nationale 7 - 69570 DARDILLY – France... - Page 43 CELED604K1018B7_072018_V1.1...
