Huawei AR-Sc Series Quick Start Manual

Huawei AR-Sc Series Quick Start Manual

Elevator gateways


Quick Start Guide
&AR-So Series Elevator Gateways
01 (2017-07-15) Part number: 31508106


Table of Contents

Summary of Contents for Huawei AR-Sc Series

  • Page 1 Quick Start Guide AR-Sc&AR-Se&AR-Sa &AR-So Series Elevator Gateways 01 (2017-07-15) Part number: 31508106...
  • Page 2: Packing List

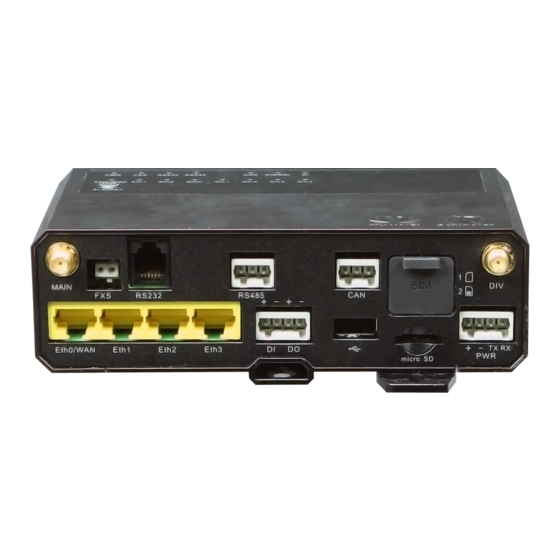

    Packing List Router (1, with product model on the nameplate) Installation accessories: LTE remote antenna (1) Quick Start Guide (1) Note The types and quantities of items in the installation accessory package vary depending on the router configuration. Appearance Note The AR-Sc-Lc-BC, AR-SC-U-BC, AR-Se-U-BC, AR-Se-L-BC, AR-Sa-U-BC, and AR-Sa-La-BC routers are the same in appearance and indicators and only differ in nameplates.
  • Page 3 AR-Sc-Lc-MC (front view) Primary LTE antenna interface Secondary LTE antenna interface Two RS232 interfaces SIM card slot FXS interface Two CAN interfaces MAIN RS232-0 RS232-1 CAN-0 CAN-1 Eth0/WAN Eth1 Eth2 Eth3 - TX RX micro SD Power socket DI/DO interface USB interface Four 100M electrical interfaces Micro SD card slot...
  • Page 4: Indicator Description

    AR-PM4 (front view) AR-PM1 (front view) Output Input Output Input 12V GND RX TX 12V GND RX TX OUTPUT: 12V;0.8A OUTPUT: 12V;0.8A AR-PM4 (rear view) AR-PM1 (rear view) Indicator Description Indicators of AR-Sc-Lc-BC Indicators of AR-Sc-Lc-MC 1 2 3 4 5 6 RS232 RS485 SIGNAL...
  • Page 5 Indicators of AR-Sc-MC RS232-0 RS232-1 CAN-0 CAN-1 Eth0/WAN Eth1 Eth2 Eth3 CIL1 CIL2 CIL3 CIL4 BLE/RST Schindler Indicators of AR-PM4 Indicators of AR-PM1 DC/BAT RS232 11 12 1314 DC/BAT RS232 Schindler Schindler...
  • Page 6 Number Indicator Description Steady green: The power supply to the router is normal. Off: The router receives no power supply. Steady green: The FXS channel is idle. Blinking green: There is an ongoing call on the FXS channel. Off: The FXS channel is occupied. RS232 Indicator states can be user defined.
  • Page 7: Installing The Router

    Installing the Router The methods for installing, connoting and logging in to the AR-Sc, AR-Se, AR-Sa, AR-So Note series routers and AR-PM series UPS are similar. AR-Sc-Lc-MC is used as an example here. AR-PM series UPS cannot be mounted on a Wall. Scenario 1: Installing the Router on a DIN Rail Before the installation, ensure the following: Sufficient space has been reserved for the router.
  • Page 8 Hold the bottom of the router and Hammer hollow wall anchors fix it on the wall with two ST4.2 into the mounting holes. tapping screws. Note The torque for an ST4.2 screw is 0.8 N·m. 90° SIG NA L CA N-1 CA N-0 RS 232 -1 RS 232 -0...
  • Page 9 Hang the router on the tapping Use a Phillips screwdriver to screw an screw through the pre-mounting ST4.2 tapping screw into the hole at the back. Hold the bottom pre-mounting hole. Leave 4 mm length of the router and use another ST4.2 of the screw out of the wall.
  • Page 10: Connecting The Router

    Connecting the Router WARNING To avoid electric shock, do not connect power cables while the power is on. Do not power on the router before you finish connecting and arranging cables. Note An LTE remote antenna is delivered with the router. Connect it to the LTE MAIN interface of the router.
  • Page 11 DI/DO interface pin assignments CAN interface pin assignments Signal Type Signal Type CAN_L CAN_H Eth interface pin assignments RS232 interface pin assignments Signal Type Signal Type Connecting the Router to a UPS Note The AR-Sc and AR-Se series routers support AR-PM1 UPS power supplies. The AR-Se-MC, AR-So and AR-Sa series routers support AR-PM4 UPS power supplies.
  • Page 12: Powering On The Router

    CIL4 BLE/RST Schindler Declaration of Conformity Hereby, Huawei Technologies Co., Ltd. declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
