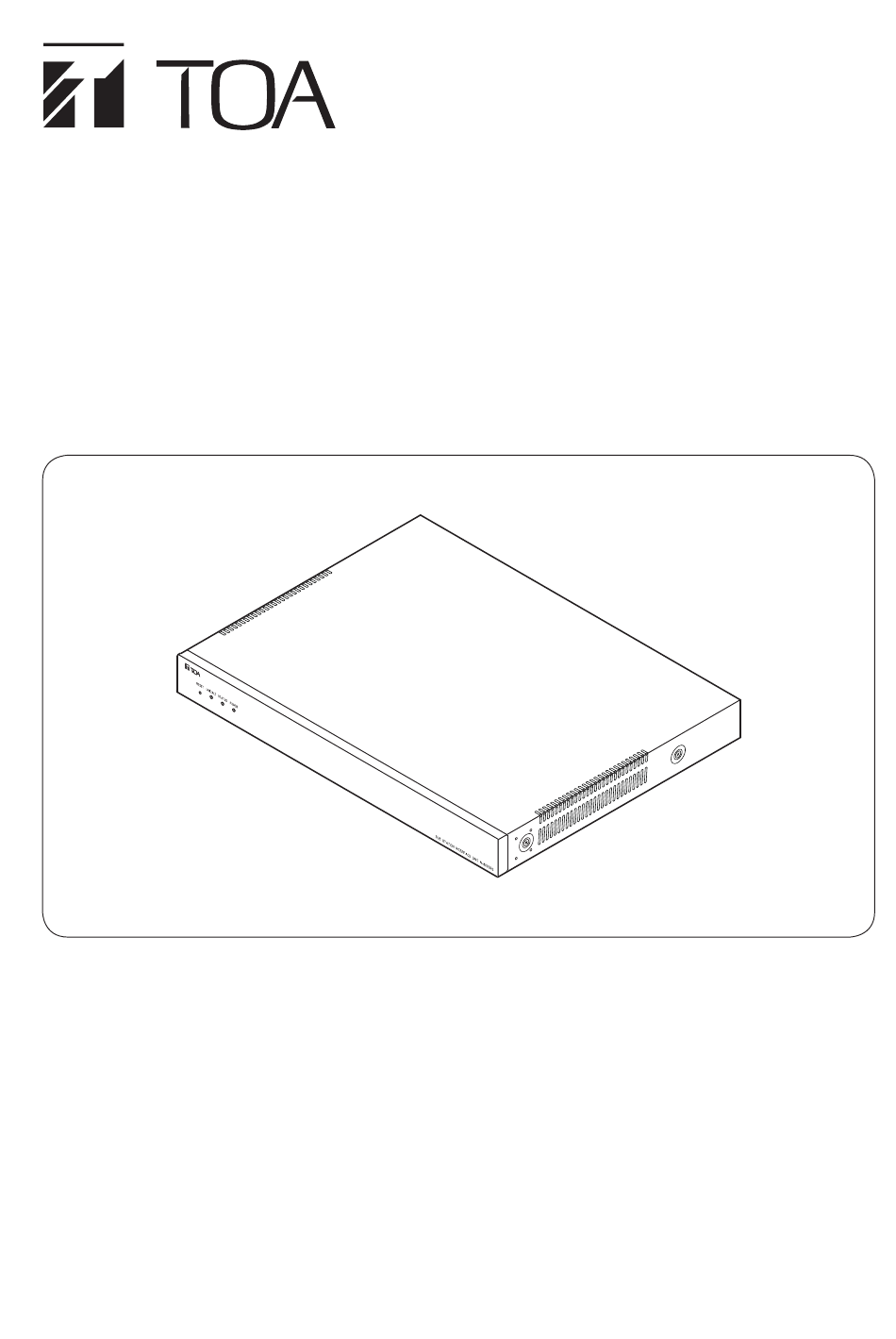

INSTALLATION MANUAL
SUBSTATION INTERFACE UNIT
N-8000RS
Thank you for purchasing TOA's Substation Interface unit.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N-8000RS and is the answer not in the manual?

Questions and answers

Related Manuals for Toa N-8000RS

Summary of Contents for Toa N-8000RS

  • Page 1 INSTALLATION MANUAL SUBSTATION INTERFACE UNIT N-8000RS Thank you for purchasing TOA’s Substation Interface unit. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ................3 2. GENERAL DESCRIPTION ................5 3. FEATURES ......................5 4. NOMENCLATURE AND FUNCTIONS ..........6 Front ..........................6 Rear ..........................6 5. INSTALLATION ....................7 5.1. Equipment Rack Mounting ..................7 5.1.1. Setting space ....................8 5.1.2.

  • Page 3: Safety Precautions

    · The supplied rack-mounting screws can be used dealer. Make no further attempt to operate the unit for the TOA equipment rack only. Do not use them in this condition as this may cause fire or electric for other racks.
  • Page 4 TOA le plus proche. de chaleur à l’intérieur de l’appareil, pouvant aboutir Ne pas essayer pas d’utiliser l’appareil dans ces à...

  • Page 5: General Description

    2. GENERAL DESCRIPTION TOA's N-8000RS is Substation interface unit used for the N-8000 Series Packet Intercom System (IP network compatible intercom) employing packet audio technology*. Up to 16 substations can be connected using 2-core shielded cables.

  • Page 6: Nomenclature And Functions

    4. NOMENCLATURE AND FUNCTIONS [Front] 1 2 3 4 5 1. Reset key [RESET] 4. Power indicator [POWER] (Green) Pressing this key reactivates the unit. Lights when power is supplied to the unit. 2. LNK/ACT indicator [LNK/ACT] (Green) 5. MAC address Lights when connected to a network, and flashes This is the MAC address* for the unit.

  • Page 7: Installation

    Remarque Pour installer le ventilateur et l’unité N-8000RS, posez le bâti à plat pour effectuer l’installation en toute sécurité. Le ventilateur étant installé depuis l’intérieur du bâti, son installation doit intervenir avant celle de tous les autres composants.

  • Page 8: Setting Space

    5.1.1. Setting space For maintenance works, allow much space between the wall and Equipment rack. Espace à prévoir N-8000RS 50 cm Prévoyez un espace suffisant entre le mur et le bâti en prévision des travaux de maintenance. 50 cm 50 cm 5.1.2.

  • Page 9: Mounting On The Rack

    Étape 1. Installez la patte de montage en bâti sur l’unité N-8000RS. Étape 2. Montez l’unité N-8000RS en bâti. 5.2. Desk-Top Installation When installing the N-8000RS on a desk, secure the supplied plastic feet to the bottom surface of the N-8000RS using the supplied machine screws. Installation sur un bureau Pour installer l’unité...

  • Page 10: Wall Mounting

    5.3. Wall Mounting Step 1. Install the optional YC-850 Wall-mounting bracket to the N-8000RS. Step 2. Mount the N-8000RS on the wall. Notes • Use appropriate screws for the construction of wall. N-8000RS • Wood screws 3.5 x 20 are supplied with the YC-850.

  • Page 11: Wiring

    On-line uninterruptible power supply (UPS) is recommended. Reference Substation interface unit N-8000RS: 40 W (rated) for CE version, 35 W (rated) for CU version 8-Port 10M/100M Switching Hub: Approx. 10 W (Differs depending on products.)
  • Page 12 Référence Interface pour sous-station N-8000RS: 40 W (nominal) pour la version CE, 35 W (nominal) pour la version CU. 8 port 10M/100M concentrateur de commutation: Environ 10 W (en fonction des produits.)

  • Page 13: Type Of Cable

    (RS-150, RS-160, RS-170, and RS-180). Note Specifications related to connections are as follows. Removable terminal plug (N-8000RS line terminal) Conductor diameter: ø 0.5 – 2 mm (AWG12 – 24), Solid wire/Stranded wire Clip terminal (E-7000TB) Conductor diameter: ø 0.4 – 0.8 mm (AWG20 – 26), Solid wire Outside diameter: ø...

  • Page 14: E-7000Tb Terminal Board Wiring

    Step 4. Insert the wired terminal plug into the terminal block of the N-8000RS. N-8000RS rear panel Tighten Removable terminal plug (accessory) Removable terminal block 6.5. E-7000TB Terminal Board Wiring For cable connection to the E-7000TB Terminal Board, use the optional YC-105 Clipping tool.

  • Page 15: Accessories

    7. ACCESSORIES AC power cord (2 m) ..........1 Machine screw M3 x 8 ........... 4 CD* (for PC setting, maintenance use) ....1 Rack mounting bracket .......... 2 Removable terminal plug (3 pins) ......16 Tapping screw 3 x 8 ..........8 Plastic foot .............
  • Page 16 Example: Prepared in September 2009: 200909 Informations sur les versions de mise à jour • Les fiches techniques des produits TOA sont disponibles au téléchargement sur le site web à l’adresse https://www.toa-products.com/international/ où vous trouverez également les versions les plus récentes du logiciel, du microprogramme et des notices de référence de l’unité N-8000.
